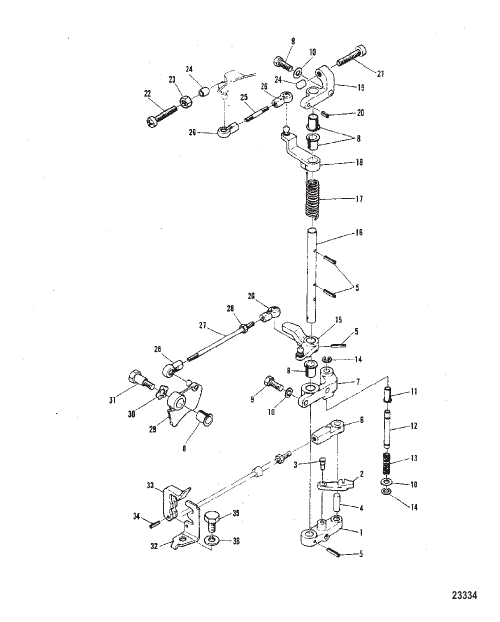

THROTTLE CONTROL
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 81345M |
РЫЧАГ C.D.I. УПРАВЛЕНИЕ LEVER C.D.I. CONTROL |
1 | discontinued |
| 10 | 82199M |
ШАЙБА ЗАМОК WASHER LOCK |
4 | superseded |
| 11 | 81942M |
ВТУЛКА BUSHING |
1 | superseded |
| 12 | 81403M |
СТОП КРОНШТЕЙН ВАЛА STOP SHAFT BRACKET |
1 | discontinued |
| 13 | 82074M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
1 | discontinued |
| 14 | 82330M |
КОЛЬЦО Защелка RING Snap |
2 | discontinued |
| 15 | 81346M |
РЫЧАГ C.D.I. УПРАВЛЕНИЕ LEVER C.D.I. CONTROL |
1 | discontinued |
| 16 | 81347M |
ВАЛ ПРИСОЕДИНЕНИЕ СОЕДИНИТЕЛЯ SHAFT LINK CONNECTING |
1 | discontinued |
| 17 | 82113M |
ПРУЖИНА ТОРСИОН SPRING TORSION |
1 | discontinued |
| 18 | 81344M |
РЫЧАГ C.D.I. УПРАВЛЕНИЕ LEVER C.D.I. CONTROL |
1 | discontinued |
| 19 | 81349M |
КРОНШТЕЙН ВАЛ – ВЕРХНИЙ BRACKET SHAFT - UPPER |
1 | discontinued |
| 2 | 81341M |
СТОПОР ФИКСАТОР ВИЛКИ STOPPER CLEVIS LOCK |
1 | discontinued |
| 20 | 82154M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 21 | 82977M |
ВИНТ SCREW |
1 | discontinued |
| 22 | 83050M |
ВИНТ SCREW |
1 | discontinued |
| 23 | 82381M |
ГАЙКА NUT |
2 | superseded |
| 24 | 81415M |
ПРОБКА CAP |
2 | discontinued |
| 25 | 81348M |
ШТОК УПРАВЛЕНИЕ ROD CONTROL |
1 | discontinued |
| 26 | 81225M |
ОКОНЕЧНЫЙ END |
4 | superseded |
| 27 | 81333M |
ШТОК СОЕДИНИТЕЛЬ ROD LINK |
1 | discontinued |
| 28 | 82378M |
ГАЙКА NUT |
1 | superseded |
| 29 | 81334M |
КУЛАЧОК CAM |
1 | discontinued |
| 3 | 82976M |
ШТИФТ PIN |
1 | discontinued |
| 30 | 81868M |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 31 | 81713M |
БОЛТ BOLT |
1 | discontinued |
| 32 | 81483M |
КРОНШТЕЙН ДИСТАНЦИОННОЕ УПРАВЛЕНИЕ BRACKET REMOTE CONTROL |
1 | discontinued |
| 33 | 81484M |
ЗАЖИМ КАБЕЛЬ CLAMP CABLE |
1 | discontinued |
| 34 | 82146M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 35 | 82437M |
БОЛТ BOLT |
1 | discontinued |
| 36 | 82200M |
ШАЙБА WASHER |
1 | superseded |
| 4 | 82367M |
ШТИФТ ШТИФТ PIN DOWEL |
1 | discontinued |
| 5 | 82149M |
ШТИФТ (18.5 мм) РОЛИК PIN (18.5 mm) ROLL |
4 | discontinued |
| 6 | 81480M |
ВИЛКА ТРОС ГАЗА CLEVIS THROTTLE CABLE |
1 | discontinued |
| 7 | 81350M |
КРОНШТЕЙН ВАЛ BRACKET SHAFT |
1 | discontinued |
| 8 | 81946M |
ВТУЛКА BUSHING |
4 | discontinued |
| 9 | 82423M |
БОЛТ BOLT |
3 | discontinued |
