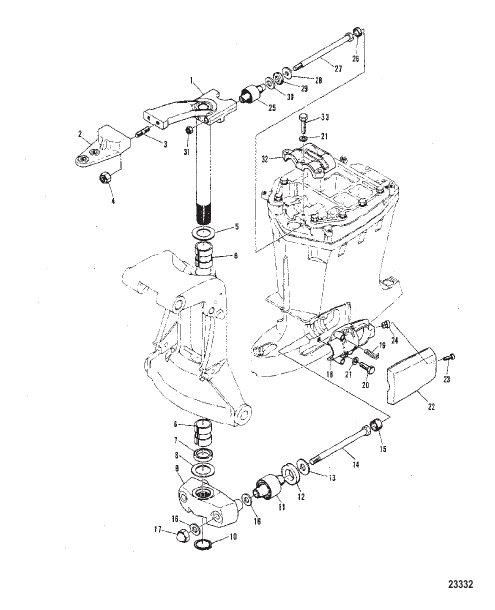

MOUNTING SYSTEM
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 81359M |
РЫЧАГ И ВАЛ В СБОРЕ (КОРОТКИЙ ВАЛ) ARM AND SHAFT ASSEMBLY (SHORT SHAFT) |
1 | superseded |
| 1 | 81360M |
РЫЧАГ И ВАЛ В СБОРЕ (ДЛИННЫЙ ВАЛ) ARM AND SHAFT ASSEMBLY (LONG SHAFT) |
1 | superseded |
| 10 | 82325M |
СТОПОРНОЕ ПРУЖИННОЕ КОЛЬЦО CIRCLIP |
1 | discontinued |
| 11 | 84430M |
КРЕПЛЕНИЕ НИЖНЯЯ ЧАСТЬ [S-675-000781/L-675-302051] & Up MOUNT LOWER [S-675-000781/L-675-302051] & Up |
2 | discontinued |
| 11 | 81435M |
КРЕПЛЕНИЕ Корпус [S-675-000780/L-675-302050] & Below MOUNT Housing [S-675-000780/L-675-302050] & Below |
2 | discontinued |
| 12 | 84431M |
ШАЙБА [S-675-000781/L-675-302051] & Up WASHER [S-675-000781/L-675-302051] & Up |
2 | discontinued |
| 12 | 81860M |
ШАЙБА [S-675-000780/L-675-302050] & Below WASHER [S-675-000780/L-675-302050] & Below |
2 | discontinued |
| 13 | 84432M |
ШАЙБА [S-675-000781/L-675-302051] & Up WASHER [S-675-000781/L-675-302051] & Up |
2 | discontinued |
| 13 | 81819M |
ШАЙБА [S-675-000780/L-675-302050] & Below WASHER [S-675-000780/L-675-302050] & Below |
2 | superseded |
| 14 | 81717M |
БОЛТ BOLT |
2 | discontinued |
| 15 | 81436M |
УПОР BUMPER |
2 | discontinued |
| 16 | 84429M |
ШАЙБА [S-675-000781/L-675-302051] & Up WASHER [S-675-000781/L-675-302051] & Up |
4 | discontinued |
| 16 | 81811M |
ШАЙБА [S-675-000780/L-675-302050] & Below WASHER [S-675-000780/L-675-302050] & Below |
4 | discontinued |
| 17 | 82397M |
ГАЙКА NUT |
2 | discontinued |
| 18 | 84433M |
ФИКСАТОР НИЖНЯЯ ОПОРА [S-675-000781/L-675-302051] & Up RETAINER LOWER MOUNT [S-675-000781/L-675-302051] & Up |
2 | discontinued |
| 18 | 81433M |
ФИКСАТОР НИЖНЯЯ ОПОРА [S-675-000780/L-675-302050] & Below RETAINER LOWER MOUNT [S-675-000780/L-675-302050] & Below |
2 | discontinued |
| 19 | 82087M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
4 | discontinued |
| 2 | 81482M |
ПЛАСТИНА РУЛЕВОЙ МЕХАНИЗМ (НАПРАВЛЯЮЩАЯ ДВИЖЕНИЯ) PLATE STEERING (RIDE GUIDE) |
1 | discontinued |
| 20 | 82464M |
БОЛТ BOLT |
4 | superseded |
| 21 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
7 | discontinued |
| 22 | 81434M |
КРЫШКА НИЖНЯЯ ОПОРА COVER LOWER MOUNT |
2 | discontinued |
| 23 | 82172M |
ВИНТ SCREW |
2 | superseded |
| 24 | 81779M |
ГАЙКА NUT |
2 | discontinued |
| 25 | 81676M |
КРЕПЛЕНИЕ Корпус ВЕРХНЯЯ ЧАСТЬ MOUNT Housing UPPER |
2 | superseded |
| 26 | 81431M |
УПОР BUMPER |
2 | discontinued |
| 27 | 81714M |
БОЛТ BOLT |
2 | discontinued |
| 28 | 81825M |
ШАЙБА WASHER |
2 | discontinued |
| 29 | 81857M |
ШАЙБА WASHER |
2 | discontinued |
| 3 | 81742M |
ШПИЛЬКА ПЛАСТИНА РУЛЕВОГО МЕХАНИЗМА STUD STEERING PLATE |
2 | discontinued |
| 30 | 81803M |
ШАЙБА WAHSER |
2 | discontinued |
| 31 | 81783M |
ГАЙКА NUT |
2 | discontinued |
| 32 | 81429M |
ФИКСАТОР ВЕРХНЕЕ КРЕПЛЕНИЕ RETAINER UPPER MOUNT |
1 | discontinued |
| 33 | 82466M |
БОЛТ BOLT |
3 | superseded |
| 4 | 81785M |
КОНТРГАЙКА LOCKNUT |
2 | discontinued |
| 5 | 81838M |
ШАЙБА WASHER |
1 | superseded |
| 6 | 81955M |
ВТУЛКА BUSHING |
2 | discontinued |
| 7 | 82256M |
УПЛОТНЕНИЕ Масло ВАЛ РУЛЕВОГО МЕХАНИЗМА SEAL Oil STEERING SHAFT |
1 | superseded |
| 8 | 81839M |
ШАЙБА WASHER |
1 | discontinued |
| 9 | 81432M |
КОРПУС НИЖНЯЯ ОПОРА HOUSING LOWER MOUNT |
1 | discontinued |
