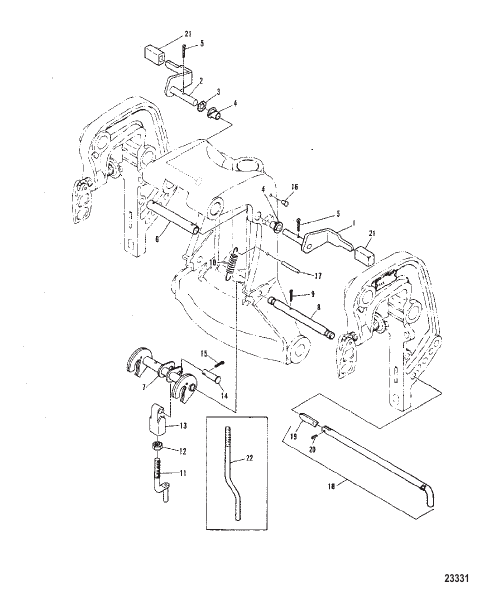

REVERSE LOCK
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 81393M |
РЫЧАГ КРЕПЛЕНИЕ ОГРАНИЧИТЕЛЯ НАКЛОНА (ЛЕВЫЙ БОРТ) LEVER TILT STOP SUPPORT (PORT) |
1 | discontinued |
| 10 | 82103M |
ПРУЖИНА НАТЯЖЕНИЕ SPRING TENSION |
1 | discontinued |
| 11 | 81398M |
ШТОК ФИКСАТОР РЕВЕРСА (КОРОТКИЙ ВАЛ) ROD REVERSE LOCK (SHORT SHAFT) |
1 | superseded |
| 12 | 82400M |
ГАЙКА NUT |
1 | superseded |
| 13 | 81400M |
ВИЛКА РЕГУЛИРОВКА CLEVIS ADJUSTING |
1 | discontinued |
| 14 | 82138M |
ШТИФТ ВИЛКА PIN CLEVIS |
1 | discontinued |
| 15 | 82752M |
ШТИФТ ШПЛИНТ PIN COTTER |
1 | superseded |
| 16 | 81909M |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 17 | 82159M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 18 | 83904M |
ПАЛЕЦ В СБОРЕ Наклон [S-675-000981/L-675-302761] & Up PIN ASSEMBLY Tilt [S-675-000981/L-675-302761] & Up |
1 | superseded |
| 18 | 81389M |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона [S-675-000980/L-675-302760] & Below PIN ASSEMBLY Tilt Lock [S-675-000980/L-675-302760] & Below |
1 | superseded |
| 19 | 84044M |
СТОПОР [S-675-000981/L-675-302761] & Up STOPPER [S-675-000981/L-675-302761] & Up |
1 | discontinued |
| 19 | 81391M |
ПЛАСТИНА Стопор [S-675-000980/L-675-302760] & Below PLATE Stopper [S-675-000980/L-675-302760] & Below |
1 | discontinued |
| 2 | 81394M |
РЫЧАГ КРЕПЛЕНИЕ ОГРАНИЧИТЕЛЯ НАКЛОНА (ПРАВЫЙ БОРТ) LEVER TILT STOP SUPPORT (STARBOARD) |
1 | discontinued |
| 20 | 82145M |
ШТИФТ РОЛИК PIN ROLL |
1 | discontinued |
| 21 | 81395M |
КРЫШКА COVER |
2 | discontinued |
| 22 | 81399M |
ШТОК ФИКСАТОР РЕВЕРСА (ДЛИННЫЙ ВАЛ) ROD REVERSE LOCK (LONG SHAFT) |
1 | discontinued |
| 3 | 81868M |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 4 | 81947M |
ВТУЛКА BUSHING |
2 | discontinued |
| 5 | 82131M |
ШПЛИНТ COTTER PIN |
2 | superseded |
| 6 | 81980M |
ВТУЛКА КРЕПЛЕНИЕ ОГРАНИЧИТЕЛЯ НАКЛОНА COLLAR TILT STOP SUPPORT |
1 | discontinued |
| 7 | 81396M |
ЗАМОК Задняя LOCK Reverse |
1 | superseded |
| 8 | 81397M |
ШТИФТ ФИКСАТОР РЕВЕРСА PIN REVERSE LOCK |
1 | superseded |
| 9 | 82130M |
ШТИФТ ШПЛИНТ PIN COTTER |
1 | discontinued |
