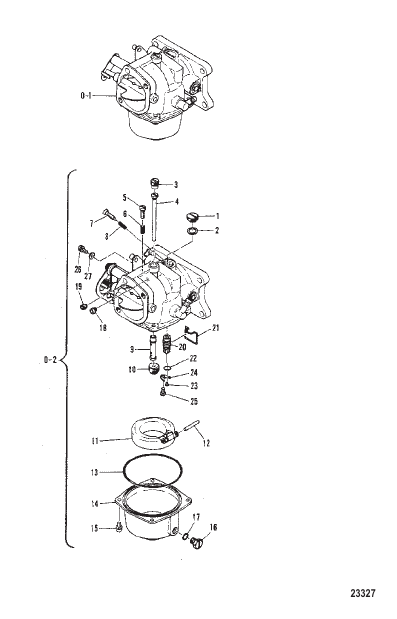

CARBURETOR
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 84419M |
РЕМОНТНЫЙ КОМПЛЕКТ (Подходит к всем четырем (4) карбюраторам) REPAIR KIT (Fits All Four (4) Carbs) |
1 | discontinued |
| - | 84168M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 0-1 | 7161M |
КАРБЮРАТОР В СБОРЕ (ВЕРХН.) [S-675-000781/L-675-302051] & Up CARBURETOR ASSEMBLY (UPPER) [S-675-000781/L-675-302051] & Up |
1 | discontinued |
| 0-1 | 6931M |
КАРБЮРАТОР В СБОРЕ (ВЕРХН.) [S-675-000780/L-675-302050] & Below CARBURETOR ASSEMBLY (UPPER) [S-675-000780/L-675-302050] & Below |
1 | discontinued |
| 0-2 | 7162M |
КАРБЮРАТОР В СБОРЕ (НИЖНЯЯ ЧАСТЬ) [S-675-000781/L-675-302051] & Up CARBURETOR ASSEMBLY (LOWER) [S-675-000781/L-675-302051] & Up |
1 | discontinued |
| 0-2 | 6940M |
КАРБЮРАТОР В СБОРЕ (НИЖНЯЯ ЧАСТЬ) [S-675-000780/L-675-302050] & Below CARBURETOR ASSEMBLY (LOWER) [S-675-000780/L-675-302050] & Below |
1 | discontinued |
| 1 | 81292M |
ВИНТ ПРОБКА SCREW PLUG |
2 | discontinued |
| 10 | 84418M |
ВОДОМЕТНЫЙ ГЛАВН. (№175) [S-675-000781/L-675-302051] & Up JET MAIN (#175) [S-675-000781/L-675-302051] & Up |
2 | discontinued |
| 10 | 81283M |
ВОДОМЕТНЫЙ ГЛАВН. (№180) [S-675-000780/L-675-302050] & Below JET MAIN (#180) [S-675-000780/L-675-302050] & Below |
2 | discontinued |
| 11 | 81291M |
ПОПЛАВОК FLOAT |
2 | superseded |
| 12 | 81278M |
ШТИФТ ПОПЛАВОК PIN FLOAT |
2 | discontinued |
| 13 | 82288M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ПОПЛАВКОВАЯ КАМЕРА O-RING FLOAT BOWL |
2 | discontinued |
| 14 | 81290M |
ПОПЛАВКОВАЯ КАМЕРА FLOAT BOWL |
2 | discontinued |
| 15 | 81758M |
ВИНТ (M4 x 12) SCREW (M4 x 12) |
8 | |
| 16 | 81293M |
ВИНТ Слив SCREW Drain |
2 | discontinued |
| 17 | 81695M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО СЛИВНОЙ ВИНТ O-RING DRAIN SCREW |
2 | discontinued |
| 18 | 81288M |
ПИЛОТНЫЙ КЛАПАН ЖИКЛЕР ВОЗДУХООТВОДА (№100) PILOT AIR JET (#100) |
2 | discontinued |
| 19 | 81286M |
ВОДОМЕТНЫЙ (№160) JET (#160) |
2 | discontinued |
| 2 | 81701M |
ШАЙБА WASHER |
2 | discontinued |
| 20 | 82780M |
ИГЛА Впуск NEEDLE Inlet |
2 | discontinued |
| 21 | 82781M |
ЗАЖИМ CLIP |
2 | superseded |
| 22 | 82261M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 23 | 81698M |
ШТИФТ КЛАПАН PIN VALVE |
2 | superseded |
| 24 | 80026M |
ФИКСАТОР RETAINER |
2 | discontinued |
| 25 | 82499M |
ВИНТ SCREW |
2 | discontinued |
| 26 | 83371M |
ВИНТ (ВЕРХН.) [S-675-000781/L-675-302051] & Up SCREW (UPPER) [S-675-000781/L-675-302051] & Up |
1 | discontinued |
| 27 | 83372M |
ШАЙБА (ВЕРХН.) [S-675-000781/L-675-302051] & Up WASHER (UPPER) [S-675-000781/L-675-302051] & Up |
1 | discontinued |
| 3 | 81279M |
ВИНТ ПРОБКА SCREW PLUG |
2 | discontinued |
| 4 | 84417M |
ВОДОМЕТНЫЙ ПИЛОТНЫЙ КЛАПАН (№85) [S-675-000781/L-675-302051] & Up JET PILOT (#85) [S-675-000781/L-675-302051] & Up |
2 | discontinued |
| 4 | 81282M |
ВОДОМЕТНЫЙ ПИЛОТНЫЙ КЛАПАН (№92) [S-675-000780/L-675-302050] & Below JET PILOT (#92) [S-675-000780/L-675-302050] & Below |
2 | discontinued |
| 5 | 81277M |
ВИНТ ДРОССЕЛЬНАЯ ЗАСЛОНКА (ВЕРХНЯЯ ЧАСТЬ) SCREW THROTTLE (UPPER) |
1 | discontinued |
| 6 | 82080M |
ПРУЖИНА СЖАТИЕ (ВЕРХНЯЯ ЧАСТЬ) SPRING COMPRESSION (UPPER) |
1 | discontinued |
| 7 | 81281M |
ВИНТ СКОРОСТЬ ХОЛОСТОГО ХОДА SCREW IDLE SPEED |
2 | discontinued |
| 8 | 82073M |
ПРУЖИНА СЖАТИЕ SPRING COMPRESSION |
2 | discontinued |
| 9 | 81287M |
ШТУЦЕР ГЛАВНЫЙ NOZZLE MAIN |
2 | discontinued |
