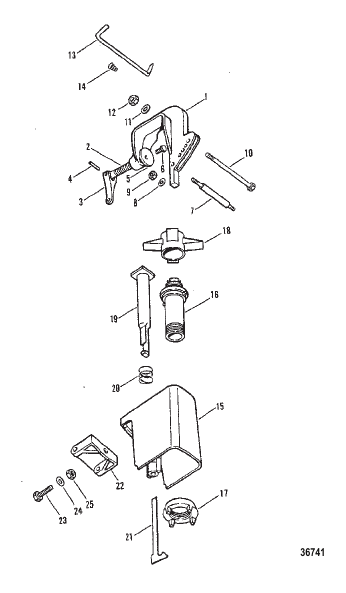

SWIVEL AND CLAMP BRACKETS
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 823402 |
КРОНШТЕЙН ФИКСАТОРА (ЛЕВЫЙ БОРТ) CLAMP BRACKET (PORT) |
1 | discontinued |
| 1 | 823403 |
КРОНШТЕЙН ФИКСАТОРА (ПРАВЫЙ БОРТ) CLAMP BRACKET (STARBOARD) |
1 | discontinued |
| 10 | 823345 |
ВИНТ SCREW |
1 | discontinued |
| 11 | 68920 |
ШАЙБА WASHER |
2 | discontinued |
| 12 | 823346 |
ГАЙКА NUT |
1 | superseded |
| 13 | 68929A2 |
ПАЛЕЦ В СБОРЕ Наклон PIN ASSEMBLY Tilt |
1 | discontinued |
| 14 | 62143 |
ПРУЖИНА SPRING |
1 | discontinued |
| 15 | 6399PA1 |
ПОВОРОТНЫЙ КРОНШТЕЙН SWIVEL BRACKET |
1 | discontinued |
| 16 | 76459 |
ТРУБА TUBE |
1 | discontinued |
| 17 | 76937 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 18 | 769381 |
РУЧКА KNOB |
1 | superseded |
| 19 | 815751 |
ШТОК ROD |
1 | discontinued |
| 2 | 77190A4 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ THUMB SCREW ASSEMBLY |
1 | discontinued |
| 20 | 76462 |
ПРУЖИНА SPRING |
1 | discontinued |
| 21 | 823347 |
СПУСКОВОЙ ГАК RELEASE HOOK |
1 | superseded |
| 22 | 76463PA1 |
КРОНШТЕЙН Шарнир BRACKET Pivot |
1 | discontinued |
| 23 | 823348 |
ВИНТ SCREW |
1 | discontinued |
| 24 | 823349 |
ШАЙБА WASHER |
1 | discontinued |
| 25 | 823399 |
ГАЙКА NUT |
1 | superseded |
| 3 | 78971 |
РУКОЯТКА HANDLE |
2 | discontinued |
| 4 | 823401 |
ШТИФТ Желоб PIN Groove |
2 | discontinued |
| 5 | 73719 |
ШАЙБА WASHER |
2 | discontinued |
| 6 | 768041 |
ВИНТ SCREW |
2 | superseded |
| 7 | 823342 |
ШПИЛЬКА STUD |
1 | discontinued |
| 8 | 823343 |
ШАЙБА WASHER |
2 | superseded |
| 9 | 823344 |
ГАЙКА NUT |
2 | superseded |
