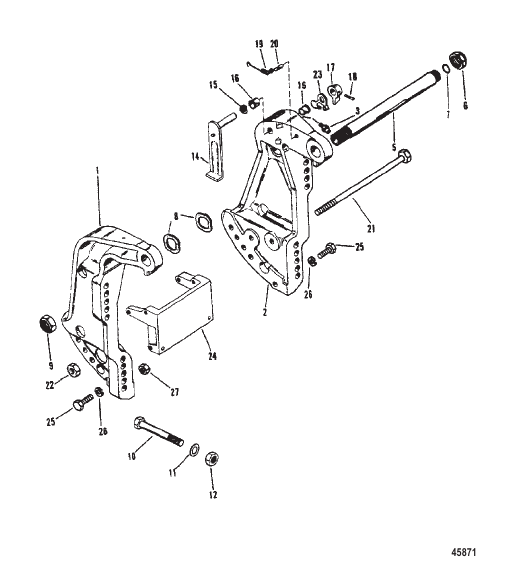

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8718F10 |
BRACKET Transom (STARBOARD) (PAINTED)
|
1 |
disc.
|
| 10 |
677551 |
SCREW (.500-20 x 4.500)
|
4 |
superseded
|
| 11 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
4 |
superseded
|
| 12 |
8M0027784 |
NUT
|
4 |
superseded
|
| 14 |
821176A1 |
LEVER ASSEMBLY Tilt Lock
|
1 |
superseded
|
| 15 |
99611 |
WAVE WASHER
|
1 |
|
| 16 |
65830 |
NYLINER
|
2 |
|
| 17 |
99633 |
KNOB
|
1 |
|
| 18 |
99615 |
PIN Groove
|
1 |
|
| 19 |
99622 |
SPRING
|
1 |
|
| 2 |
8716A10 |
BRACKET ASSEMBLY Transom (PORT) (PAINTED)
|
1 |
disc.
|
| 20 |
99604 |
PIN Groove
|
1 |
|
| 21 |
96930A1 |
BOLT ASSEMBLY (.375-24 X 9.500)
|
1 |
|
| 22 |
23161 |
NUT (.375-24)
|
1 |
|
| 23 |
814207 |
STOP
|
1 |
disc.
|
| 24 |
818771F7 |
BRACKET (PAINTED)
|
1 |
superseded
|
| 25 |
4000377 |
SCREW (M10 x 30)
|
6 |
|
| 26 |
400258 |
LOCKWASHER (M10) Stainless Steel
|
6 |
disc.
|
| 27 |
40114 |
NUT (M10 x 1.5)
|
1 |
|
| 3 |
98727 |
FITTING Grease
|
1 |
superseded
|
| 5 |
99170A2 |
TUBE KIT Tilt
|
1 |
disc.
|
| 6 |
826135 |
NUT Lock (1.00-14) Nylon Insert
|
1 |
|
| 7 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 8 |
88750 |
WASHER Wave (1.62 x 1.05)
|
2 |
|
| 9 |
30499 |
NUT (7/8-14)
|
1 |
superseded
|
