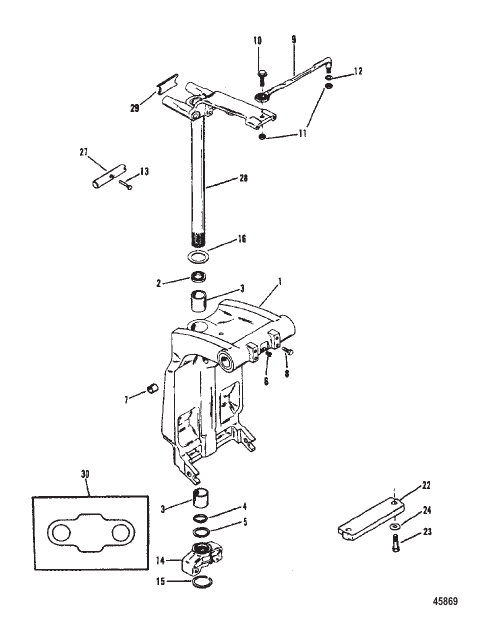

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
818904A3 |
SWIVEL BRACKET ASSEMBLY (PAINTED)
|
1 |
superseded
|
| 10 |
14000 |
SCREW (.375-24 x 1.25)
|
1 |
superseded
|
| 11 |
34863 |
NUT (.375-24)
|
2 |
superseded
|
| 12 |
37828 |
WASHER (.390 x .625 x .062) Stainless Steel
|
2 |
|
| 13 |
821539 |
PIN Trilobe
|
1 |
|
| 14 |
42961A4 |
YOKE ASSEMBLY Bottom (PAINTED)
|
1 |
superseded
|
| 15 |
67684 |
RING Retaining
|
1 |
|
| 16 |
816432 |
THRUST WASHER
|
1 |
|
| 2 |
87735 |
SEAL Oil
|
1 |
|
| 22 |
818298A1 |
ANODE KIT
|
1 |
superseded
|
| 23 |
4000330 |
SCREW (M6 x 25)
|
2 |
superseded
|
| 24 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 27 |
996251 |
SHAFT (UPPER)
|
1 |
superseded
|
| 28 |
99661A28 |
SWIVEL PIN ASSEMBLY (PAINTED)
|
1 |
superseded
|
| 29 |
888821 |
BUMPER (X-LONG)
|
1 |
superseded
|
| 3 |
818764 |
BUSHING
|
2 |
|
| 30 |
11288 |
BUMPER Bottom Yoke (X-LONG)
|
1 |
superseded
|
| 4 |
33504 |
O-RING
|
1 |
superseded
|
| 5 |
816039 |
SPACER
|
1 |
|
| 6 |
74036 |
FITTING Grease
|
2 |
superseded
|
| 7 |
821207 |
BUSHING
|
2 |
|
| 8 |
64014 |
SCREW (.250-28 x .500)
|
2 |
|
| 9 |
92876A1 |
LINK ASSEMBLY Steering
|
1 |
superseded
|
