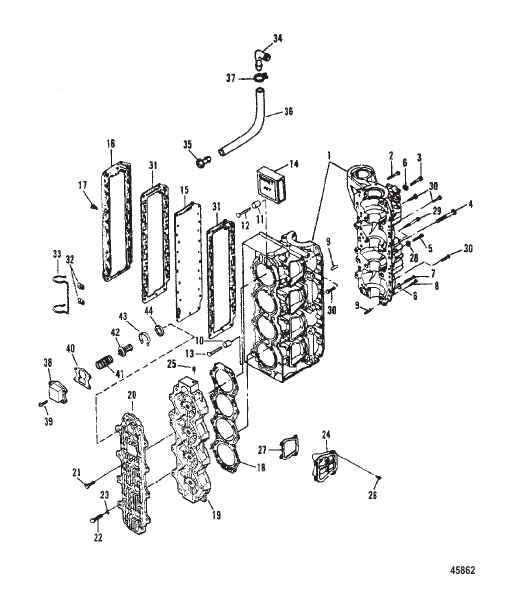

Cylinder Block
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 818154A22 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (ОКРАШ.) POWERHEAD ASSEMBLY (PAINTED) |
1 | superseded |
| 1 | 818154A21 |
КОМПЛЕКТ БЛОКА ЦИЛИНДРОВ CYLINDER BLOCK KIT |
1 | discontinued |
| 10 | F719418 |
ТРУБА TUBE |
3 | |
| 11 | F719943 |
ТРУБА (ВЕРХНЯЯ ЧАСТЬ) TUBE (TOP) |
1 | |
| 12 | F691372 |
ШТИФТ (ВЕРХНЯЯ ЧАСТЬ) PIN (TOP) |
1 | discontinued |
| 13 | F719372 |
ШТИФТ PIN |
3 | discontinued |
| 14 | 809125A1 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | superseded |
| 15 | 8197791 |
ПЛАСТИНА Выхлоп PLATE Exhaust |
1 | |
| 16 | F686152 |
КРЫШКА Выхлоп COVER Exhaust |
1 | discontinued |
| 17 | 76213 |
ВИНТ (0.250-20 x 1.120) SCREW (.250-20 x 1.120) |
27 | |
| 18 | F476529-4 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 19 | 8197772 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | superseded |
| 2 | F1874 |
ВИНТ (0.375-16 x 3.125) SCREW (.375-16 x 3.125) |
1 | discontinued |
| 20 | F665995 |
КРЫШКА COVER |
1 | discontinued |
| 21 | 98254 |
ВИНТ (0.250-20 x 0.620) SCREW (.250-20 x .620) |
4 | |
| 22 | F1883 |
БОЛТ (0.312-18 x 2.375) BOLT (.312-18 x 2.375) |
18 | |
| 23 | 34437 |
ШАЙБА WASHER |
18 | |
| 24 | 817790A1 |
КРЫШКА COVER |
3 | discontinued |
| 25 | F722109-1 |
ПРОБКА (Нейлон) PLUG (Nylon) |
1 | discontinued |
| 26 | 98254 |
ВИНТ (0.250-20 x 0.620) SCREW (.250-20 x .620) |
14 | |
| 27 | 820500 |
ПРОКЛАДКА GASKET |
3 | superseded |
| 28 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel |
4 | |
| 29 | 45561 |
ВИНТ (0.250-20 x 1.12) SCREW (.250-20 x 1.12) |
1 | superseded |
| 3 | 47688 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
1 | |
| 30 | F2008 |
ВИНТ (0.250-20 x 0.875) SCREW (.250-20 x .875) |
24 | discontinued |
| 31 | 8190241 |
ПРОКЛАДКА Пластина выхлопа GASKET Exhaust Plate |
2 | superseded |
| 32 | 820437 |
ЗАЖИМ CLIP |
2 | discontinued |
| 33 | 92753 |
ФИКСАТОР RETAINER |
1 | |
| 34 | 99664 |
КОЛЕНЧАТЫЙ ELBOW |
1 | superseded |
| 35 | 813613 |
ФИТИНГ FITTING |
1 | |
| 36 | 99127109 |
ТРУБОПРОВОД (Общая длина 57.00") (ОБРЕЗ. ДО 21.00") LINE (57.00 Inches Bulk) (CUT 21.00 IN.) |
1 | superseded |
| 37 | 816311 |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
1 | superseded |
| 38 | 819693 |
КРЫШКА (БЕЗ ОТВЕРСТИЯ) COVER (WITHOUT HOLE) |
1 | discontinued |
| 38 | 8196931 |
КРЫШКА (С ОТВЕРСТИЕМ) COVER (WITH HOLE) |
1 | discontinued |
| 39 | 19927075 |
ВИНТ (0.250-20 x 0.75) С DRI LOC SCREW (.250-20 x .75) WITH DRI LOC |
4 | superseded |
| 4 | 53734 |
ВИНТ (0.375-16 x 3.00) SCREW (.375-16 x 3.00) |
2 | discontinued |
| 40 | F476067 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 41 | F664268 |
ПРУЖИНА SPRING |
1 | |
| 42 | F664068 |
ТЕРМОСТАТ 54°C (130°F) (130 ГРАДУСОВ) THERMOSTAT 54°C (130°F) (130 DEGREES)) |
1 | |
| 43 | F719902 |
ПРОСТАВКА SPACER |
1 | superseded |
| 44 | F664914 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 5 | 94207 |
ВИНТ (0.375-16 x 2.00) SCREW (.375-16 x 2.00) |
4 | discontinued |
| 6 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь WASHER (.390 x .625 x .062) Stainless Steel |
6 | |
| 7 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
2 | |
| 8 | 820589 |
ВИНТ (0.250-20 x 1.250) SCREW (.250-20 x 1.250) |
2 | |
| 9 | 43044 |
ШТИФТ Штифт – без отверстия (0.375 x 0.625) PIN Dowel - Without Hole (.375 x .625) |
2 |
