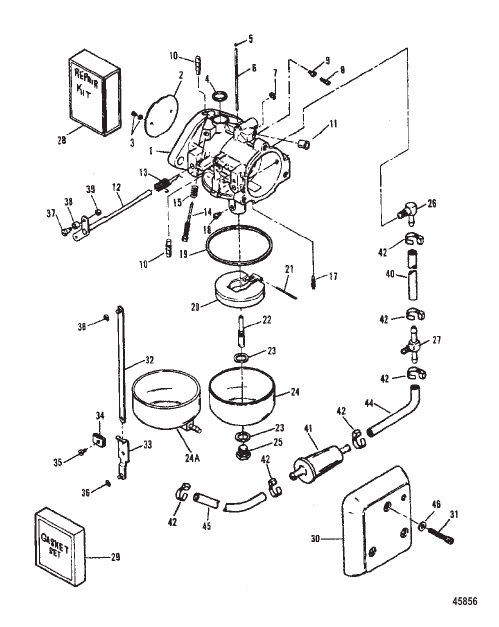

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
820203 |
CARBURETOR (TOP) (TC-119A)
|
1 |
disc.
|
| 1 |
820195 |
CARBURETOR (BOTTOM) (TC-120A)
|
1 |
superseded
|
| 10 |
F10274 |
NOZZLE Primer
|
1 |
disc.
|
| 11 |
F10263 |
CUP Metering
|
1 |
disc.
|
| 12 |
FO17884 |
SHAFT AND LEVER Throttle
|
1 |
disc.
|
| 13 |
FO16143 |
SPRING
|
1 |
|
| 14 |
F10268 |
SCREW
|
1 |
|
| 15 |
27160 |
SPRING
|
1 |
|
| 17 |
F10265 |
NEEDLE Inlet NOTE: DO NOT REMOVE INLET SEAT
|
1 |
|
| 18 |
FO14191 |
JET Main (.094) (0 - 1500 FT.)
|
1 |
disc.
|
| 18 |
5733 |
JET Main (.092) (1500 - 3000 FT.)
|
OPT |
|
| 18 |
6247 |
JET Main (.090) (3000 - 4500 FT.)
|
OPT |
|
| 18 |
FO13193 |
JET Main (.088) (4500 - 6000 FT.)
|
OPT |
|
| 18 |
FO13949 |
JET (.086) (6000 - 10000 FT.)
|
OPT |
|
| 19 |
FO15623 |
GASKET
|
1 |
|
| 2 |
FO16142 |
SHUTTER Throttle
|
1 |
disc.
|
| 20 |
F10346 |
FLOAT Fuel Bowl
|
1 |
superseded
|
| 21 |
FO13944 |
PIN
|
1 |
|
| 22 |
FO16133 |
NOZZLE
|
1 |
|
| 23 |
FO5323 |
GASKET
|
2 |
|
| 24 |
FO16130 |
BOWL (BOTTOM CARB)
|
1 |
|
| 24A |
820492 |
BOWL (TOP CARB)
|
1 |
disc.
|
| 25 |
FO16132 |
SCREW
|
1 |
disc.
|
| 26 |
F84314-2 |
ELBOW (L) (TOP CARB)
|
1 |
disc.
|
| 27 |
F85314-1 |
FITTING (T) (BOTTOM CARB)
|
1 |
superseded
|
| 28 |
FK10103-2 |
REPAIR KIT
|
1 |
|
| 29 |
FK10023 |
GASKET SET Carburetor
|
1 |
|
| 3 |
F10328 |
SCREW
|
2 |
superseded
|
| 30 |
F511708-3 |
COVER Carburetor
|
2 |
superseded
|
| 31 |
F2192 |
SCREW (.250-20 x 1.750)
|
6 |
|
| 32 |
FA178233 |
TIE BAR ASSEMBLY
|
1 |
disc.
|
| 33 |
FA85193 |
END ASSEMBLY
|
1 |
disc.
|
| 34 |
F1693 |
NUT (#8-32)
|
1 |
|
| 35 |
F1064 |
SCREW (#8-32 x .375)
|
1 |
|
| 36 |
21058 |
E RING
|
2 |
disc.
|
| 37 |
F333316 |
SHAFT
|
1 |
superseded
|
| 38 |
819225 |
ROLLER
|
1 |
disc.
|
| 39 |
F1997 |
NUT (#8-32)
|
1 |
superseded
|
| 4 |
FO16128 |
PLUG
|
1 |
|
| 40 |
99127109 |
LINE (57.00 Inches Bulk) (CUT 7.500 IN.)
|
1 |
superseded
|
| 41 |
816296 |
FILTER Fuel
|
1 |
superseded
|
| 42 |
816311 |
TIE STRAP (8.00 Inches)
|
6 |
superseded
|
| 44 |
99127109 |
LINE (57.00 Inches Bulk) (CUT 5.250 IN.)
|
1 |
superseded
|
| 45 |
99127109 |
LINE (57.00 Inches Bulk) (CUT 21.00 IN.)
|
1 |
superseded
|
| 46 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
6 |
superseded
|
| 5 |
FO10588 |
PLUG
|
5OR6 |
|
| 6 |
FO16993 |
TUBE
|
1 |
|
| 7 |
FO16620 |
E RING
|
1 |
disc.
|
| 8 |
F10275 |
SCREW
|
1 |
|
| 9 |
F10273 |
JET (.047) IDLE AIR
|
1 |
|
