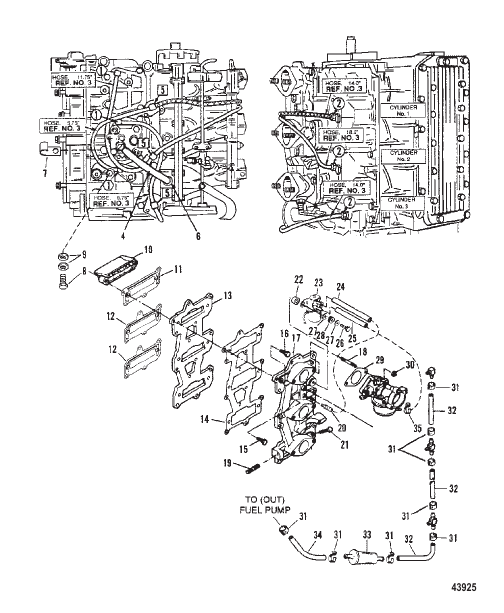

Reed Plate and Recirculation System

Parts (35)

#Part NumberDescriptionQtyStatus
1 F743314 ELBOW Recirculating 3 disc.
10 11645 REED BLOCK 3 superseded
11 F85168-2 GASKET (Top), Reed Plate Adapter 1
12 819733 GASKET (Center/Bottom), Reed Plate Adapter 2
13 8197351 ADAPTER Reed Plate 1 disc.
14 F85159-1 GASKET Intake Manifold 1
15 F2030 SCREW (.250-20 x 1.250) Stainless Steel 2
16 F1532 SCREW (.250-20 x 1.00) 10 superseded
17 825195A2 MANIFOLD KIT Intake 1 disc.
18 826388   STUD (.312-18 x 1.250) (5/16-18 x 1-1/4") With Dri Loc 6 superseded
19 826389   STUD (.250-20 x 1.250) 1 superseded
2 42658 CHECK VALVE Check 3 superseded
20 F695858   FITTING 1 disc.
21 F2050 SCREW (.250-20 x 1.500) 6 superseded
22 F694359 SPACER 1
23 819503 SOLENOID Primer 1 superseded
24 9912688 TUBING (36.00 Inches Bulk) Cut to 4.25 in. 1
25 9912688 TUBING (36.00 Inches Bulk) Cut to 5.00 in. 1
26 28636 SCREW (.250-20 x .750) 1
27 35044 WASHER (.281 x .625 x .065) Stainless Steel 2
28 F694504 GROMMET 1
29 F85906 GASKET Carburetor 3 superseded
3 99130122 TUBING (20.00 Feet Bulk) (Cut 3 pcs.8-3/4 in.)(Cut 1 pcs.11-3/4 in.)(Cut 1 pcs.14 in.)(Cut 1 pcs.18 in.) 1 superseded
30 68292 NUT (.312-18) 6 superseded
31 816311 TIE STRAP (8.00 Inches) 8 superseded
32 99127109 LINE (57.00 Inches Bulk) Cut as Required 1 superseded
33 816296 FILTER Fuel 1 superseded
34 99127109 LINE (57.00 Inches Bulk) Cut as Required 1 superseded
35 56762 TIE STRAP (4.00 Inches) 1
4 99127109 LINE (57.00 Inches Bulk) Impulse Cut to (4.50 in.) 1 superseded
5 820706 ELBOW ("T"), Check Valve 3 superseded
6 99664 ELBOW 1 superseded
7 55098 J CLIP 1 superseded
8 28636 SCREW (.250-20 x .750) 1
9 78968 LOCKWASHER Internal (.250) 2
