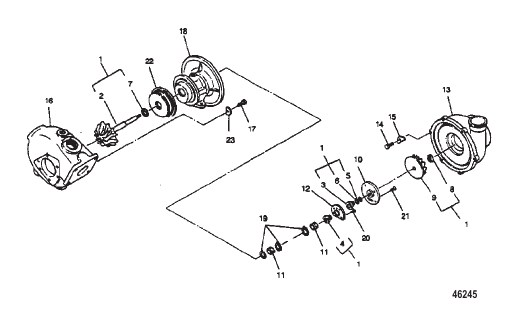

TURBOCHARGER (831001821)
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 831001821 |
ТУРБОНАГНЕТАТЕЛЬ В СБОРЕ TURBOCHARGER ASSEMBLY |
1 | discontinued |
| 1 | 831501140 |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 10 | 831271090 |
ПЛАСТИНА Черный PLATE Black |
1 | discontinued |
| 11 | 831311140 |
ПОДШИПНИК BEARING |
2 | discontinued |
| 12 | 831431090 |
ПОДШИПНИК Упор BEARING Thrust |
1 | discontinued |
| 13 | 831141130 |
КОРОБКА Вентилятор CASE Blower |
1 | discontinued |
| 14 | 831451240 |
БОЛТ BOLT |
6 | discontinued |
| 15 | 831231220 |
ПЛАСТИНА PLATE |
6 | discontinued |
| 16 | 831111290 |
КОРОБКА Турбина CASE Turbine |
1 | discontinued |
| 17 | 831451190 |
БОЛТ BOLT |
6 | superseded |
| 18 | 831211130 |
КОРОБКА Подшипник CASE Bearing |
1 | discontinued |
| 19 | 831321080 |
КОЛЬЦО Форсунка RING Nozzle |
3 | discontinued |
| 2 | 834999998 |
РОТОР ROTOR |
1 | discontinued |
| 20 | 831361120 |
ВИНТ SCREW |
4 | superseded |
| 21 | 831361130 |
ВИНТ SCREW |
3 | discontinued |
| 22 | 831411100 |
ЗАЩИТНОЕ ПРИСПОСОБЛЕНИЕ Теплообменник PROTECTOR Heat |
1 | discontinued |
| 23 | 831231270 |
ПЛАСТИНА PLATE |
5 | discontinued |
| 3 | 834999990 |
ОТРАЖАТЕЛЬ Масло THROWER Oil |
1 | discontinued |
| 4 | 831221050 |
ВТУЛКА BUSHING |
1 | discontinued |
| 5 | 831241200 |
УПЛОТНЕНИЕ Кольцо SEAL Ring |
1 | discontinued |
| 6 | 831241190 |
УПЛОТНЕНИЕ Кольцо SEAL Ring |
1 | discontinued |
| 7 | 831241270 |
УПЛОТНЕНИЕ Кольцо SEAL Ring |
1 | discontinued |
| 8 | 831171210 |
ГАЙКА Замок NUT Lock |
1 | discontinued |
| 9 | 831181100 |
КРЫЛЬЧАТКА Вентилятор IMPELLER Blower |
1 | discontinued |
