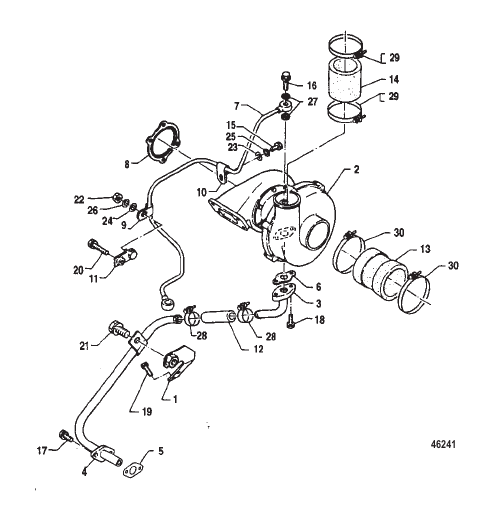

TURBOCHARGER SYSTEM (STYLE I)
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 834914420 |
КРОНШТЕЙН Труба BRACKET Pipe |
1 | discontinued |
| 10 | 839041380 |
ЗАЖИМ CLIP |
1 | discontinued |
| 11 | 834921400 |
ДЕРЖАТЕЛЬ Зажим HOLDER Clip |
1 | discontinued |
| 12 | 830232061 |
РУКАВ Масло HOSE Oil |
1 | discontinued |
| 13 | 830233363 |
РУКАВ Воздух HOSE Air |
1 | discontinued |
| 14 | 830233437 |
РУКАВ Воздух HOSE Air |
1 | discontinued |
| 15 | 831108160 |
БОЛТ BOLT |
1 | discontinued |
| 16 | 832910261 |
БОЛТ BOLT |
1 | discontinued |
| 17 | 838108200 |
БОЛТ BOLT |
2 | discontinued |
| 18 | 839106202 |
БОЛТ BOLT |
2 | discontinued |
| 19 | 839108162 |
БОЛТ BOLT |
2 | discontinued |
| 2 | 831001621 |
ТУРБОНАГНЕТАТЕЛЬ В СБОРЕ СМ. «ТУРБОНАГНЕТАТЕЛЬ (831001621)» TURBOCHARGER ASSEMBLY SEE "TURBOCHARGER (831001621)" |
1 | discontinued |
| 20 | 839108351 |
БОЛТ BOLT |
1 | discontinued |
| 21 | 839114252 |
БОЛТ BOLT |
1 | discontinued |
| 22 | 830110080 |
ГАЙКА NUT |
1 | discontinued |
| 23 | 836008140 |
ШАЙБА Плоск. WASHER Plain |
1 | discontinued |
| 24 | 836010180 |
ШАЙБА Плоск. WASHER Plain |
1 | discontinued |
| 25 | 838008200 |
СТОПОРНАЯ ШАЙБА Замок LOCKWASHER Lock |
1 | discontinued |
| 26 | 838010250 |
СТОПОРНАЯ ШАЙБА Замок LOCKWASHER Lock |
1 | discontinued |
| 27 | 835410100 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 28 | 836602810 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 29 | 836606510 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 3 | 831721170 |
ТРУБА Выпуск масла PIPE Oil Outlet |
1 | discontinued |
| 30 | 836975103 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 4 | 831071200 |
ТРУБА Выпуск масла PIPE Oil Outlet |
1 | discontinued |
| 5 | 831351110 |
ПРОКЛАДКА Выпуск масла GASKET Oil Outlet |
1 | discontinued |
| 6 | 831351080 |
ПРОКЛАДКА Выпуск масла GASKET Oil Outlet |
1 | superseded |
| 7 | 831711410 |
ТРУБА Выпуск масла PIPE Oil Outlet |
1 | discontinued |
| 8 | 831791170 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 9 | 839041280 |
ЗАЖИМ CLIP |
1 | discontinued |
