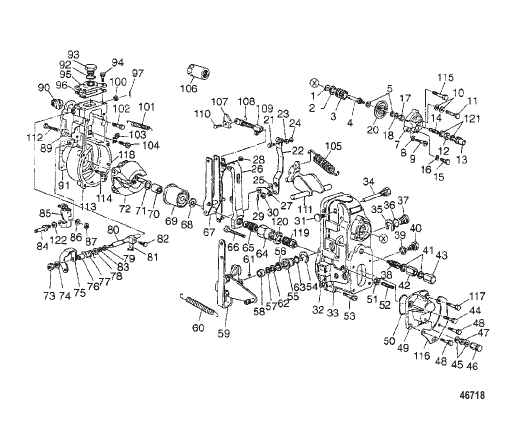

GOVERNOR ASSEMBLY
Parts (129)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 833203290 |
РЕГУЛЯТОР В СБОРЕ GOVERNOR ASSEMBLY |
1 | discontinued |
| - | 833203290 |
РЕГУЛЯТОР В СБОРЕ GOVERNOR ASSEMBLY |
1 | discontinued |
| - | 833203290 |
РЕГУЛЯТОР В СБОРЕ GOVERNOR ASSEMBLY |
1 | discontinued |
| 1 | 838817710 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
2 | discontinued |
| 10 | 838431040 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 100 | 838231310 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 101 | 833311290 |
ПРУЖИНА SPRING |
1 | discontinued |
| 102 | 838113140 |
БОЛТ BOLT |
1 | discontinued |
| 103 | 833431450 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 104 | 838113160 |
БОЛТ BOLT |
1 | discontinued |
| 105 | 833211220 |
ПРУЖИНА Регулятор SPRING Governor |
1 | discontinued |
| 106 | 830313513 |
ПРОБКА CAP |
1 | discontinued |
| 107 | 833482680 |
РЫЧАГ Стоп LEVER Stop |
1 | discontinued |
| 108 | 834561100 |
ШТИФТ Разъем PIN Split |
1 | discontinued |
| 109 | 834141250 |
ПРУЖИНА SPRING |
1 | discontinued |
| 11 | 838111080 |
БОЛТ BOLT |
1 | discontinued |
| 110 | 833581540 |
ШТИФТ Прямой PIN Straight |
1 | discontinued |
| 111 | 833061260 |
РЫЧАГ В СБОРЕ Главная пружинная опора LEVER ASSEMBLY Main Spring Support |
1 | discontinued |
| 112 | 838114120 |
ГАЙКА NUT |
1 | discontinued |
| 113 | 833011500 |
КОРПУС В СБОРЕ Регулятор HOUSING ASSEMBLY Governor |
1 | discontinued |
| 114 | 838111170 |
БОЛТ BOLT |
5 | discontinued |
| 115 | 838114140 |
БОЛТ BOLT |
2 | discontinued |
| 116 | 833434450 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 117 | 838112840 |
БОЛТ BOLT |
1 | discontinued |
| 118 | 838911020 |
КЛЮЧ KEY |
1 | discontinued |
| 119 | 834141310 |
ПРУЖИНА SPRING |
1 | discontinued |
| 12 | 838212680 |
ГАЙКА NUT |
1 | discontinued |
| 120 | 838212330 |
ГАЙКА NUT |
1 | discontinued |
| 121 | 838431920 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 122 | 838008200 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 13 | 833421590 |
НАКИДНАЯ ГАЙКА CAP NUT |
1 | discontinued |
| 14 | 838611760 |
ВИНТ SCREW |
1 | discontinued |
| 15 | 838412050 |
ПРОБКА PLUG |
1 | discontinued |
| 16 | 838432110 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 17 | 838212250 |
ГАЙКА NUT |
1 | discontinued |
| 18 | 838732050 |
ШАЙБА Специальный WASHER Special |
1 | discontinued |
| 2 | 838817210 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.5) SHIM (0.5) |
AR | discontinued |
| 2 | 838814080 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.2) SHIM (0.2) |
AR | discontinued |
| 20 | 833611070 |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 21 | 833581530 |
ШТИФТ Прямой PIN Straight |
1 | discontinued |
| 22 | 833191850 |
РЫЧАГ Регулятор нагрузки LEVER Load Control |
1 | discontinued |
| 23 | 838631860 |
ШАЙБА Плоск. WASHER Plain |
1 | discontinued |
| 24 | 831241210 |
КОЛЬЦО Регулировка распределительного вала RING Camshaft Adjust |
1 | discontinued |
| 25 | 831241070 |
КОЛЬЦО Регулировка распределительного вала RING Camshaft Adjust |
1 | discontinued |
| 26 | 833081130 |
РЫЧАГ В СБОРЕ Натяжение LEVER ASSEMBLY Tension |
1 | discontinued |
| 27 | 833191860 |
РЫЧАГ Регулятор нагрузки LEVER Load Control |
1 | discontinued |
| 28 | 831241070 |
КОЛЬЦО Регулировка распределительного вала RING Camshaft Adjust |
1 | discontinued |
| 29 | 833581230 |
ШТИФТ Соединитель PIN Connector |
3 | discontinued |
| 3 | 834331460 |
ПРУЖИНА SPRING |
1 | discontinued |
| 30 | 838817160 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
4 | discontinued |
| 31 | 838112280 |
БОЛТ BOLT |
1 | discontinued |
| 32 | 838431650 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 33 | 833811640 |
КРЫШКА Регулятор COVER Governor |
1 | discontinued |
| 34 | 833581520 |
ШТИФТ Прямой PIN Straight |
1 | discontinued |
| 35 | 838831010 |
КОЛЬЦО Фиксатор RING Retainer |
1 | discontinued |
| 36 | 838131200 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 37 | 833222210 |
ВТУЛКА BUSHING |
1 | discontinued |
| 38 | 834021040 |
КАПСУЛА В СБОРЕ Пружина холостых оборотов CAPSULE ASSEMBLY Idling Spring |
1 | discontinued |
| 39 | 838432330 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 4 | 833611080 |
ДИАФРАГМА DIAPHRAGM |
1 | discontinued |
| 40 | 838114610 |
БОЛТ BOLT |
1 | discontinued |
| 41 | 838431620 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 42 | 838212670 |
ГАЙКА NUT |
1 | discontinued |
| 43 | 838211630 |
НАКИДНАЯ ГАЙКА CAP NUT |
1 | discontinued |
| 44 | 838113200 |
БОЛТ BOLT |
1 | discontinued |
| 45 | 838432310 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 46 | 833421740 |
НАКИДНАЯ ГАЙКА CAP NUT |
1 | discontinued |
| 47 | 838212630 |
ГАЙКА NUT |
1 | discontinued |
| 48 | 838114430 |
БОЛТ BOLT |
2 | discontinued |
| 49 | 833861900 |
КРЫШКА Торец COVER End |
1 | discontinued |
| 5 | 838431910 |
ПРОКЛАДКА GASKET |
2 | discontinued |
| 50 | 838131330 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 51 | 838212340 |
ГАЙКА NUT |
1 | discontinued |
| 52 | 833951100 |
ВИНТ SCREW |
1 | discontinued |
| 53 | 838113180 |
БОЛТ BOLT |
6 | discontinued |
| 54 | 838831010 |
КОЛЬЦО Фиксатор RING Retainer |
1 | discontinued |
| 55 | 833222200 |
ВТУЛКА BUSHING |
1 | discontinued |
| 56 | 838231050 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 57 | 838812130 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.3) SHIM (0.3) |
AR | discontinued |
| 58 | 833321430 |
ВТУЛКА COLLAR |
1 | discontinued |
| 59 | 834051890 |
РЫЧАГ В СБОРЕ Регулировка скорости LEVER ASSEMBLY Speed Control |
1 | discontinued |
| 60 | 833412570 |
ПРУЖИНА SPRING |
1 | discontinued |
| 61 | 838911030 |
КЛЮЧ KEY |
1 | discontinued |
| 62 | 838811740 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.4) SHIM (0.4) |
1 | discontinued |
| 63 | 838131200 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 64 | 838211740 |
ГАЙКА NUT |
1 | discontinued |
| 65 | 834141220 |
ПРУЖИНА SPRING |
1 | discontinued |
| 66 | 838011890 |
ВИНТ SCREW |
1 | discontinued |
| 67 | 833072100 |
РЫЧАГ В СБОРЕ Направляющая LEVER ASSEMBLY Guide |
1 | discontinued |
| 68 | 838812170 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.2) SHIM (0.2) |
AR | discontinued |
| 68 | 838812180 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.3) SHIM (0.3) |
AR | discontinued |
| 68 | 838812190 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.4) SHIM (0.4) |
AR | discontinued |
| 68 | 838816900 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (0.5) SHIM (0.5) |
AR | discontinued |
| 68 | 838812200 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.0) SHIM (1.0) |
AR | discontinued |
| 68 | 838816910 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.5) SHIM (1.5) |
AR | discontinued |
| 68 | 838818610 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (2.0) SHIM (2.0) |
AR | discontinued |
| 68 | 838818620 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (3.0) SHIM (3.0) |
AR | discontinued |
| 68 | 838818630 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (4.0) SHIM (4.0) |
AR | discontinued |
| 69 | 833051120 |
РУКАВ В СБОРЕ Центробежный грузик SLEEVE ASSEMBLY Flyweight |
1 | discontinued |
| 7 | 833811430 |
КРЫШКА Регулятор COVER Governor |
1 | discontinued |
| 70 | 833531010 |
ГАЙКА NUT |
1 | discontinued |
| 71 | 838731340 |
ШАЙБА Специальный WASHER Special |
1 | discontinued |
| 72 | 833041430 |
ЦЕНТРОБЕЖНЫЙ ГРУЗИК В СБОРЕ FLYWEIGHT ASSEMBLY |
1 | discontinued |
| 73 | 838211670 |
ГАЙКА NUT |
1 | discontinued |
| 74 | 838008200 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 75 | 833483020 |
РЫЧАГ Стоп LEVER Stop |
1 | discontinued |
| 76 | 833321380 |
ВТУЛКА COLLAR |
1 | discontinued |
| 77 | 833412360 |
ПРУЖИНА SPRING |
1 | discontinued |
| 78 | 838631790 |
ШАЙБА Плоск. WASHER Plain |
1 | discontinued |
| 79 | 838231310 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 8 | 838731420 |
ШАЙБА Специальный WASHER Special |
1 | discontinued |
| 80 | 833341110 |
ВАЛ Коленчатый рычаг SHAFT Bellcrank |
1 | discontinued |
| 81 | 833482660 |
РЫЧАГ Стоп LEVER Stop |
1 | discontinued |
| 82 | 838113980 |
БОЛТ BOLT |
1 | discontinued |
| 83 | 838631800 |
ШАЙБА Плоск. WASHER Plain |
1 | discontinued |
| 84 | 838111550 |
БОЛТ BOLT |
1 | discontinued |
| 85 | 833433600 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 86 | 838813100 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА SHIM |
1 | discontinued |
| 87 | 838212740 |
ГАЙКА NUT |
1 | discontinued |
| 89 | 838212010 |
ГАЙКА NUT |
1 | discontinued |
| 9 | 838113990 |
БОЛТ BOLT |
1 | discontinued |
| 90 | 831311120 |
ПЕРЕХОДНИК ADAPTER |
1 | discontinued |
| 91 | 833521040 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 92 | 838131470 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 93 | 838411850 |
ПРОБКА PLUG |
1 | discontinued |
| 94 | 838113200 |
БОЛТ BOLT |
4 | discontinued |
| 95 | 833811630 |
КРЫШКА Регулятор COVER Governor |
1 | discontinued |
| 96 | 838431930 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 97 | 833581230 |
ШТИФТ Соединитель PIN Connector |
1 | discontinued |
