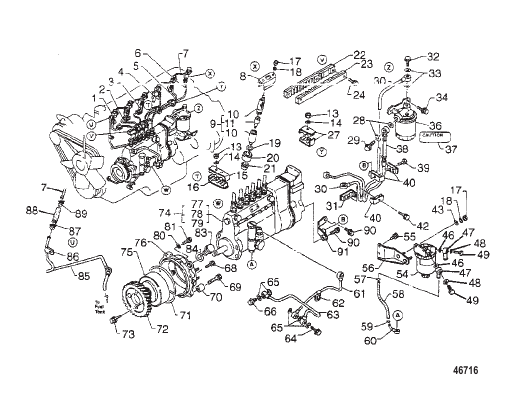

FUEL SYSTEM
Parts (78)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 837112181 |
ТРУБА Инжекторный (№ 1) PIPE Injection (NO. 1) |
1 | discontinued |
| 10 | 836201630 |
ДЕРЖАТЕЛЬ В СБОРЕ (СМ. «ДЕРЖАТЕЛЬ В СБОРЕ – ФОРСУНКА») HOLDER ASSEMBLY (SEE HOLDER ASSEMBLY-NOZZLE) |
6 | discontinued |
| 11 | 836402190 |
ФОРСУНКА В СБОРЕ NOZZLE ASSEMBLY |
6 | discontinued |
| 13 | 830106050 |
ГАЙКА NUT |
5 | discontinued |
| 14 | 838006150 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
5 | discontinued |
| 15 | 839042141 |
ЗАЖИМ CLIP |
1 | discontinued |
| 16 | 839042131 |
ЗАЖИМ CLIP |
1 | discontinued |
| 17 | 830108070 |
ГАЙКА NUT |
14 | discontinued |
| 18 | 838008200 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
14 | discontinued |
| 19 | 830111145 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА (1.00) SHIM (1.00) |
6 | discontinued |
| 2 | 837122151 |
ТРУБА Инжекторный (№ 2) PIPE Injection (NO. 2) |
1 | discontinued |
| 20 | 836671070 |
КОЛЬЦО RING |
6 | discontinued |
| 21 | 836611140 |
ПРОКЛАДКА Держатель форсунки GASKET Nozzle Holder |
6 | discontinued |
| 22 | 839042190 |
ЗАЖИМ CLIP |
1 | discontinued |
| 23 | 839042200 |
ЗАЖИМ CLIP |
1 | discontinued |
| 24 | 838106300 |
БОЛТ BOLT |
3 | discontinued |
| 27 | 839041930 |
ЗАЖИМ CLIP |
8 | discontinued |
| 28 | 835914104 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 29 | 831914184 |
БОЛТ BOLT |
1 | discontinued |
| 3 | 837132131 |
ТРУБА Инжекторный (№ 3) PIPE Injection (NO. 3) |
1 | discontinued |
| 30 | 837821161 |
ТРУБА PIPE |
1 | discontinued |
| 31 | 839041900 |
ЗАЖИМ CLIP |
1 | discontinued |
| 32 | 831914184 |
БОЛТ BOLT |
1 | discontinued |
| 33 | 835914104 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 34 | 831110251 |
БОЛТ BOLT |
2 | discontinued |
| 36 | 833002010 |
БАЗА В СБОРЕ (СМ. «ТОПЛИВНАЯ СИСТЕМА») BASE ASSEMBLY (SEE FUEL SYSTEM) |
1 | discontinued |
| 37 | 835818320 |
ПЛАСТИНА Предостережение PLATE Caution |
1 | discontinued |
| 38 | 838062501 |
ШЛАНГ В СБОРЕ Топливо HOSE ASSEMBLY Fuel |
1 | discontinued |
| 39 | 838106350 |
БОЛТ BOLT |
1 | discontinued |
| 4 | 837142141 |
ТРУБА Инжекторный (№ 4) PIPE Injection (NO. 4) |
1 | discontinued |
| 40 | 839041940 |
ЗАЖИМ CLIP |
3 | discontinued |
| 42 | 839106253 |
БОЛТ BOLT |
1 | discontinued |
| 43 | 836008180 |
ШАЙБА Плоск. WASHER Plain |
2 | discontinued |
| 46 | 835913110 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 47 | 837811620 |
ТРУБА Топливо PIPE Fuel |
2 | discontinued |
| 48 | 835914104 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 49 | 831913101 |
БОЛТ BOLT |
2 | discontinued |
| 5 | 837152070 |
ТРУБА Инжекторный (№ 5) PIPE Injection (NO. 5) |
1 | discontinued |
| 54 | 838031080 |
СЕПАРАТОР В СБОРЕ (СМ. «СЕПАРАТОР В СБОРЕ – ВОДА») SEPARATOR ASSEMBLY (SEE SEPARATOR ASSEMBLY- WATER) |
1 | discontinued |
| 55 | 838908110 |
БОЛТ BOLT |
2 | discontinued |
| 56 | 830311200 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 57 | 835415104 |
ЗАЖИМ CLIP |
1 | discontinued |
| 58 | 830562139 |
ТРУБА TUBE |
1 | discontinued |
| 59 | 835415104 |
ЗАЖИМ CLIP |
1 | discontinued |
| 6 | 837162050 |
ТРУБА Инжекторный (№ 6) PIPE Injection (NO. 6) |
1 | discontinued |
| 60 | 837811981 |
ТРУБА Топливо PIPE Fuel |
1 | discontinued |
| 61 | 837731480 |
ТРУБА Масло PIPE Oil |
1 | discontinued |
| 62 | 839041170 |
ЗАЖИМ CLIP |
1 | superseded |
| 63 | 837731371 |
ТРУБА Масло PIPE Oil |
1 | discontinued |
| 64 | 832910234 |
БОЛТ BOLT |
1 | discontinued |
| 65 | 835910105 |
ШАЙБА Мягкий WASHER Soft |
6 | discontinued |
| 66 | 832910245 |
БОЛТ BOLT |
1 | discontinued |
| 68 | 838108450 |
БОЛТ BOLT |
1 | discontinued |
| 69 | 838108600 |
БОЛТ BOLT |
1 | discontinued |
| 7 | 830811790 |
ТРУБА Протечка форсунки PIPE Nozzle Leakage |
1 | discontinued |
| 70 | 830116199 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 71 | 835101125 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 72 | 836131280 |
ПЕРЕДАЧА Привод инжекторного насоса GEAR Injection Pump Drive |
1 | discontinued |
| 73 | 839908143 |
БОЛТ BOLT |
4 | discontinued |
| 74 | 830203882 |
НАСОС В СБОРЕ Инжекторный PUMP ASSEMBLY Injection |
1 | discontinued |
| 75 | 835003170 |
ТАЙМЕР В СБОРЕ Автом. (СМ. «ТАЙМЕР В СБОРЕ») TIMER ASSEMBLY Auto (SEE TIMER ASSEMBLY) |
1 | discontinued |
| 76 | 835011020 |
КРЫШКА COVER |
1 | discontinued |
| 77 | 831202520 |
КОРПУС В СБОРЕ Инжекторный насос (СМ. «КОРПУС В СБОРЕ – НАСОС ДЛЯ ВПРЫСКА ТОПЛИВА») BODY ASSEMBLY Injection Pump (SEE BODY ASSEMBLY- FUEL INJECTION PUMP) |
1 | superseded |
| 78 | 833203290 |
РЕГУЛЯТОР В СБОРЕ (СМ. «РЕГУЛЯТОР В СБОРЕ») GOVERNOR ASSEMBLY (SEE GOVERNOR ASSEMBLY) |
1 | discontinued |
| 79 | 835601760 |
НАСОС В СБОРЕ Подача топлива (СМ. «НАСОС В СБОРЕ – ПОДАЧА ТОПЛИВА») PUMP ASSEMBLY Fuel Feed (SEE PUMP ASSEMBLY - FUEL FEED) |
1 | discontinued |
| 8 | 836651110 |
ПЕРЕХОДНИК Держатель форсунки ADAPTER Nozzle Holder |
6 | discontinued |
| 80 | 836208220 |
ШАЙБА WASHER |
1 | discontinued |
| 81 | 839108351 |
БОЛТ BOLT |
1 | discontinued |
| 83 | 831922102 |
ПРОБКА PLUG |
1 | discontinued |
| 84 | 835422150 |
ШАЙБА WASHER |
1 | discontinued |
| 85 | 830831510 |
ТРУБА В СБОРЕ Сквозная подача PIPE ASSEMBLY Through Feed |
1 | discontinued |
| 86 | 839042000 |
ЗАЖИМ CLIP |
1 | discontinued |
| 87 | 835410105 |
ЗАЖИМ CLIP |
1 | discontinued |
| 88 | 830231118 |
РУКАВ HOSE |
1 | discontinued |
| 89 | 835410105 |
ЗАЖИМ CLIP |
1 | discontinued |
| 9 | 836002580 |
НАБОР ИЗ ФОРСУНКИ И ДЕРЖАТЕЛЯ NOZZLE AND HOLDER SET |
6 | discontinued |
| 90 | 830110250 |
БОЛТ BOLT |
1 | discontinued |
| 91 | 834091071 |
КРОНШТЕЙН В СБОРЕ Инжекторный насос BRACKET ASSEMBLY Injection Pump |
1 | discontinued |
