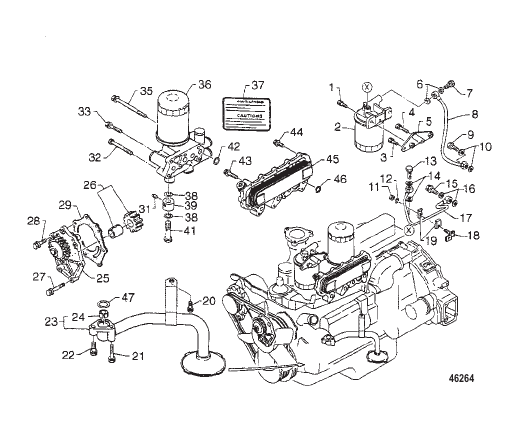

LUBRICATING SYSTEM
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 839110301 |
БОЛТ BOLT |
2 | discontinued |
| 10 | 835914104 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 11 | 830008070 |
ГАЙКА NUT |
1 | discontinued |
| 12 | 838008200 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 13 | 831914184 |
БОЛТ BOLT |
1 | discontinued |
| 14 | 835914104 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 15 | 832910189 |
БОЛТ BOLT |
1 | discontinued |
| 16 | 835910105 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 17 | 834181541 |
ТРУБА Масляный фильтр (ВПУСК) PIPE Oil Filter (INLET) |
1 | discontinued |
| 18 | 839921150 |
ПЛАСТИНА Настройка PLATE Setting |
1 | discontinued |
| 19 | 839041240 |
ЗАЖИМ В СБОРЕ CLIP ASSEMBLY |
2 | discontinued |
| 2 | 836101180 |
ФИЛЬТР В СБОРЕ Перепуск масла (СМ. «МАСЛЯНЫЙ ФИЛЬТР В СБОРЕ») FILTER ASSEMBLY Oil By Pass (SEE FILTER ASSEMBLY - OIL) |
1 | discontinued |
| 20 | 838908110 |
БОЛТ BOLT |
1 | discontinued |
| 21 | 838108500 |
БОЛТ BOLT |
1 | discontinued |
| 22 | 838108300 |
БОЛТ BOLT |
1 | discontinued |
| 23 | 834011710 |
ТРУБА В СБОРЕ Масляный насос (ВПУСК) PIPE ASSEMBLY Oil Pump (INLET) |
1 | discontinued |
| 24 | 831141050 |
НАПРАВЛЯЮЩАЯ GUIDE |
1 | discontinued |
| 25 | 830121231 |
КРЫШКА В СБОРЕ Масляный насос COVER ASSEMBLY Oil Pump |
1 | discontinued |
| 26 | 834999992 |
РЕДУКТОР В СБОРЕ Масляный насос GEAR ASSEMBLY Oil Pump |
1 | discontinued |
| 27 | 838108350 |
БОЛТ BOLT |
2 | discontinued |
| 28 | 838108200 |
БОЛТ BOLT |
5 | discontinued |
| 29 | 831191121 |
ПРОКЛАДКА Крышка масляного насоса GASKET Oil Pump Cove |
1 | discontinued |
| 3 | 831110252 |
БОЛТ BOLT |
1 | discontinued |
| 31 | 832910115 |
ПРОБКА PLUG |
3 | discontinued |
| 32 | 839108752 |
БОЛТ BOLT |
1 | discontinued |
| 33 | 839108002 |
БОЛТ BOLT |
2 | discontinued |
| 35 | 839908157 |
БОЛТ BOLT |
3 | discontinued |
| 36 | 836003490 |
БАЗА В СБОРЕ Масляный фильтр (СМ. ФИЛЬТР В СБОРЕ – МАСЛО) BASE ASSEMBLY Oil Filter (SEE FILTER ASSEMBLY - OIL) |
1 | discontinued |
| 37 | 835818181 |
ПЛАСТИНА Предостережение PLATE Caution |
1 | discontinued |
| 38 | 835914110 |
ШАЙБА Мягкий WASHER Soft |
3 | discontinued |
| 39 | 830235130 |
СОЕДИНИТЕЛЬ Труба CONNECTOR Pipe |
1 | discontinued |
| 4 | 838108700 |
БОЛТ BOLT |
1 | discontinued |
| 41 | 831914237 |
БОЛТ BOLT |
1 | discontinued |
| 42 | 835119101 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | discontinued |
| 43 | 839108401 |
БОЛТ BOLT |
8 | discontinued |
| 44 | 839108551 |
БОЛТ BOLT |
2 | discontinued |
| 45 | 837101810 |
ОХЛАДИТЕЛЬ В СБОРЕ Масло (СМ. ОХЛАДИТЕЛЬ В СБОРЕ – МАСЛО) COOLER ASSEMBLY Oil (SEE COOLER ASSEMBLY - OIL) |
1 | discontinued |
| 46 | 835119101 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
4 | discontinued |
| 47 | 834402135 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 5 | 836091320 |
КРОНШТЕЙН В СБОРЕ Масляный фильтр BRACKET ASSEMBLY Oil Filter |
1 | discontinued |
| 6 | 835914104 |
ШАЙБА Мягкий WASHER Soft |
2 | discontinued |
| 7 | 831914184 |
БОЛТ BOLT |
1 | discontinued |
| 8 | 834191790 |
ТРУБА Масляный фильтр (ВЫПУСК) PIPE Oil Filter (OUTLET) |
1 | discontinued |
| 9 | 831914184 |
БОЛТ BOLT |
1 | discontinued |
