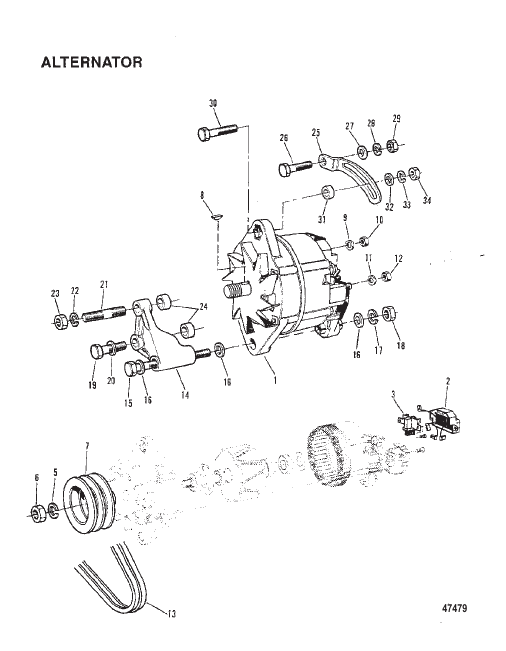

ALTERNATOR
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 816175 |
ГЕНЕРАТОР ALTERNATOR |
1 | superseded |
| 10 | 809922038 |
ГАЙКА NUT |
2 | discontinued |
| 11 | 809931076 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | superseded |
| 12 | 809922800 |
ГАЙКА NUT |
2 | superseded |
| 13 | 816544 |
КЛИНОВОЙ РЕМЕНЬ V BELT |
2 | superseded |
| 14 | 816542 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 15 | 816454 |
ВИНТ SCREW |
1 | discontinued |
| 16 | 809931084 |
ШАЙБА WASHER |
3 | superseded |
| 17 | 400249 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 18 | 809922133 |
ГАЙКА NUT |
1 | discontinued |
| 19 | 811476 |
ВИНТ SCREW |
1 | discontinued |
| 2 | 811505 |
РЕГУЛЯТОР REGULATOR |
1 | discontinued |
| 20 | 811480 |
ШАЙБА WASHER |
1 | discontinued |
| 21 | 811475 |
ШПИЛЬКА STUD |
1 | discontinued |
| 22 | 811482 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | superseded |
| 23 | 811478 |
ГАЙКА NUT |
1 | superseded |
| 24 | 816543 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 25 | 816540 |
СКОБА BRACE |
1 | |
| 26 | 811477 |
ВИНТ SCREW |
1 | discontinued |
| 27 | 811479 |
ШАЙБА WASHER |
1 | superseded |
| 28 | 811481 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | superseded |
| 29 | 801333455 |
ГАЙКА NUT |
1 | superseded |
| 3 | 811521 |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | |
| 30 | 40001197 |
ВИНТ (M10 x 35) SCREW (M10 x 35) |
1 | |
| 31 | 816541 |
ПРОСТАВКА SPACER |
1 | |
| 32 | 809931332 |
ШАЙБА WASHER |
1 | discontinued |
| 33 | 400248 |
СТОПОРНАЯ ШАЙБА (M10) LOCKWASHER (M10) |
1 | |
| 34 | 400214 |
ГАЙКА (M10), нержавеющая сталь NUT (M10) Stainless Steel |
1 | |
| 5 | 809933149 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 6 | 809921631 |
ГАЙКА NUT |
1 | discontinued |
| 7 | 816539 |
ШКИВ PULLEY |
1 | |
| 8 | 809951453 |
КЛЮЧ KEY |
1 | discontinued |
| 9 | 809931036 |
ШАЙБА WASHER |
2 | discontinued |
