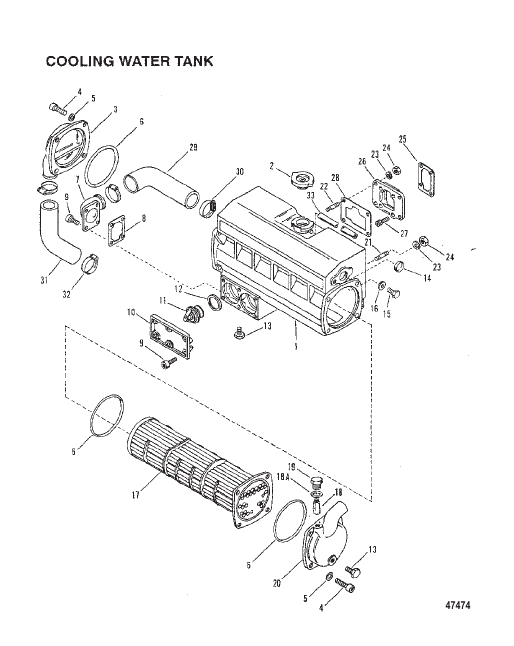

COOLING WATER TANK
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 816011A3 |
ТЕПЛООБМЕННИК HEAT EXCHANGER |
1 | superseded |
| 10 | 816009 |
КРЫШКА ТЕРМОСТАТА THERMOSTAT COVER |
1 | discontinued |
| 11 | 816008 |
ТЕРМОСТАТ THERMOSTAT |
2 | discontinued |
| 12 | 816007 |
ПРОКЛАДКА Термостат GASKET Thermostat |
2 | discontinued |
| 13 | 815997 |
ПРОБКА PLUG |
2 | discontinued |
| 14 | 816001 |
СФЕРИЧЕСКАЯ ЗАГЛУШКА WELCH PLUG |
2 | discontinued |
| 15 | 809913624 |
ВИНТ SCREW |
1 | discontinued |
| 16 | 809963042 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 17 | 816010 |
ВСТАВКА INSERT |
1 | discontinued |
| 18 | 816000 |
АНОД ANODE |
1 | discontinued |
| 18A | 811483 |
ШАЙБА WASHER |
1 | |
| 19 | 815999 |
ПРОБКА PLUG |
1 | superseded |
| 2 | 13130 |
ПРОБКА Давление CAP Pressure |
1 | |
| 20 | 815991 |
КОЛПАЧОК END CAP |
1 | discontinued |
| 21 | 809908132 |
ШПИЛЬКА STUD |
3 | discontinued |
| 22 | 809909067 |
ШПИЛЬКА STUD |
4 | superseded |
| 23 | 4002217 |
ШАЙБА WASHER |
7 | |
| 24 | 400213 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
7 | |
| 25 | 816676 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 26 | 815987 |
ПЕРЕХОДНИК ADAPTOR |
1 | discontinued |
| 27 | 809919969 |
ВИНТ SCREW |
4 | |
| 28 | 816677 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 29 | 815989 |
РУКАВ HOSE |
1 | discontinued |
| 3 | 815992 |
КОЛПАЧОК END CAP |
1 | discontinued |
| 30 | 801326523 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 31 | 816155 |
РУКАВ HOSE |
1 | discontinued |
| 32 | 801326639 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 33 | 811471 |
РУКАВ HOSE |
1 | superseded |
| 4 | 4007535 |
ВИНТ (M8 x 40) SCREW (M8 x 40) |
8 | discontinued |
| 5 | 809932095 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
8 | superseded |
| 6 | 816005 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
3 | discontinued |
| 7 | 815988 |
ВЫПУСКНОЙ ПАТРУБОК OUTLET FITTING |
1 | discontinued |
| 8 | 816006 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 9 | 4007416 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
10 | discontinued |
