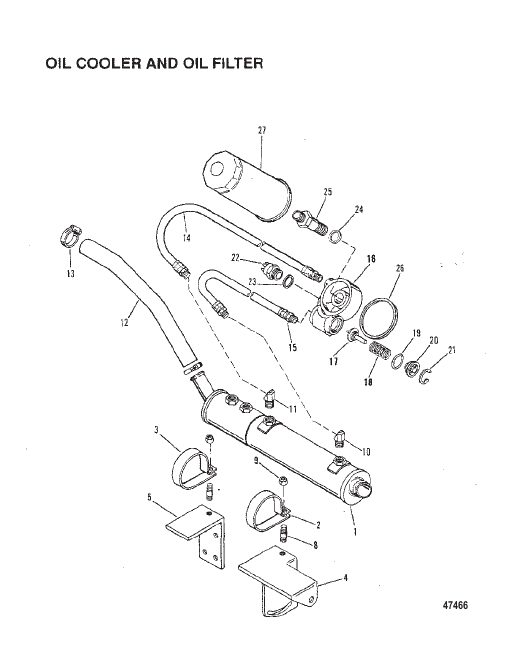

OIL COOLER AND OIL FILTER (STERN DRIVE)
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 816156T |
ОХЛАДИТЕЛЬ Масло COOLER Oil |
1 | discontinued |
| 10 | 63825 |
КОЛЕНЧАТЫЙ ELBOW |
1 | |
| 11 | 48872 |
ФИТИНГ Коленчатый патрубок на 45 градусов FITTING 45 Degree Elbow |
1 | |
| 12 | 816735 |
РУКАВ HOSE |
1 | discontinued |
| 13 | 801326639 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 14 | 9235759 |
РУКАВ (34") HOSE (34") |
1 | |
| 15 | 9235750 |
РУКАВ Масло (25") HOSE Oil (25") |
1 | discontinued |
| 16 | 816161T |
ПЕРЕХОДНИК Масляный фильтр ADAPTOR Oil Filter |
1 | discontinued |
| 17 | 816163 |
ТЕРМОСТАТ THERMOSTAT |
1 | discontinued |
| 18 | 816162 |
ПРУЖИНА SPRING |
1 | |
| 19 | 816678 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 2 | 814858 |
ЗАЖИМ CLIP |
1 | discontinued |
| 20 | 816165 |
КРЫШКА COVER |
1 | superseded |
| 21 | 816166 |
КОЛЬЦО Стопор RING Retaining |
1 | discontinued |
| 22 | 814078 |
ДАТЧИК Температура масла SENDER Oil Temperature |
1 | discontinued |
| 23 | 809963201 |
ШАЙБА WASHER |
1 | superseded |
| 24 | 809963355 |
ШАЙБА WASHER |
1 | discontinued |
| 25 | 816167 |
ФИТИНГ FITTING |
1 | discontinued |
| 26 | 805732 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.612 x 0.103) O-RING (2.612 x .103) |
1 | |
| 27 | 816168 |
ФИЛЬТР Масло FILTER Oil |
1 | |
| 3 | 816182 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 4 | 816340 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 5 | 816157 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 8 | 809908147 |
ШПИЛЬКА STUD |
2 | discontinued |
| 9 | 815088 |
ГАЙКА (M8) NUT (M8) |
2 | superseded |
