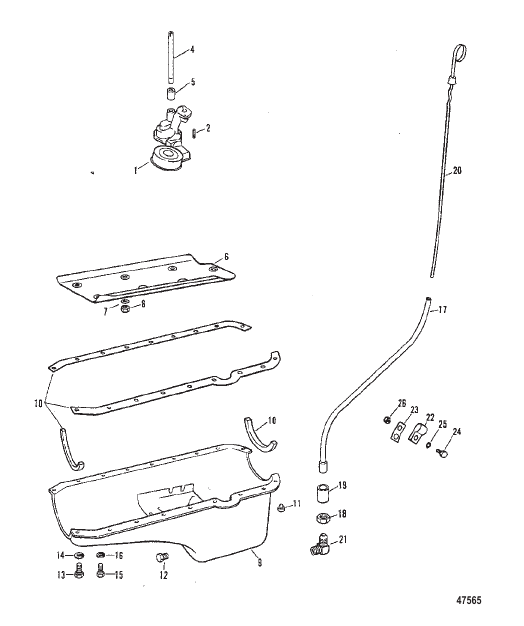

OIL PAN AND OIL PUMP
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 19379 |
НАСОС Масло PUMP Oil |
1 | superseded |
| 10 | 52550 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| 11 | 47815 |
ПРОБКА (РЕЗИНА) PLUG (RUBBER) |
2 | discontinued |
| 12 | 87543 |
ПРОБКА PLUG |
1 | superseded |
| 13 | 55714 |
ВИНТ (7/8") (5/16-18 x 7/8") SCREW (7/8 In.) (5/16-18 X 7/8") |
10 | discontinued |
| 14 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) LOCKWASHER (.312-24) |
10 | |
| 15 | 55715 |
ВИНТ (0.250-20 x 0.880) (1/4-20 x 7/8") SCREW (.250-20 x .880) (1/4-20 X 7/8") |
2 | |
| 16 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 17 | 86890A2 |
ТРУБА TUBE |
1 | discontinued |
| 18 | 47626 |
ГАЙКА NUT |
1 | discontinued |
| 19 | 78039 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | discontinued |
| 2 | 49108 |
ШПИЛЬКА STUD |
1 | superseded |
| 20 | 49661T |
УКАЗАТЕЛЬ GAUGE |
1 | discontinued |
| 21 | 47625 |
КОЛЕНЧАТЫЙ ELBOW |
1 | discontinued |
| 22 | 92338 |
ЗАЖИМ CLIP |
1 | discontinued |
| 23 | 48134 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 24 | 54630 |
ВИНТ (0.312-24 x 0.625) (5/8") SCREW (.312-24 x .625) (5/8") |
1 | discontinued |
| 25 | 39107 |
СТОПОРНАЯ ШАЙБА (0.312-24) LOCKWASHER (.312-24) |
1 | |
| 26 | 22053 |
ГАЙКА (0.312-24) NUT (.312-24) |
1 | |
| 4 | 49149 |
ВАЛ SHAFT |
1 | superseded |
| 5 | 52193 |
РУКАВ SLEEVE |
1 | discontinued |
| 6 | 49198 |
ОТРАЖАТЕЛЬНЫЙ ЩИТОК (БЛОК ЦИЛИНДРОВ) BAFFLE (CYLINDER BLOCK) |
1 | discontinued |
| 7 | 49112 |
ШАЙБА WASHER |
5 | discontinued |
| 8 | 37500 |
ГАЙКА (3/8-16) NUT (3/8-16) |
5 | |
| 9 | 47552A5 |
ПОДДОН В СБОРЕ Масло PAN ASSEMBLY Oil |
1 | discontinued |
