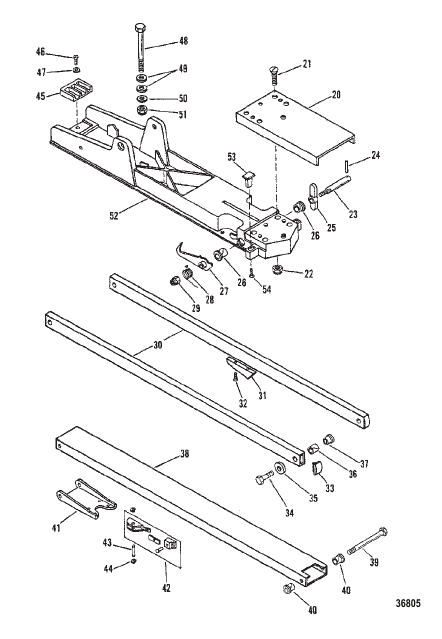

DECK BASE AND SIDE ARMS (LARGE)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813130A4 |
ОСНОВА ПАЛУБЫ В СБОРЕ (R, RL, D) DECK BASE ASSEMBLY (R,RL,D) |
1 | discontinued |
| - | 813130A6 |
ОСНОВА ПАЛУБЫ В СБОРЕ (RX) DECK BASE ASSEMBLY (RX) |
1 | discontinued |
| 20 | 813829 |
УДЛИНИТЕЛЬ (RX) EXTENSION (RX) |
1 | discontinued |
| 21 | 96953 |
ВИНТ (RX) SCREW (RX) |
2 | discontinued |
| 22 | 13438 |
ГАЙКА (0.250-28) (RX) NUT (.250-28) (RX) |
2 | superseded |
| 23 | 813824 |
ВАЛ SHAFT |
1 | discontinued |
| 24 | 813826 |
ШТИФТ PIN |
1 | discontinued |
| 25 | 8138251 |
УДАРНЫЙ РЫЧАГ STRIKE ARM |
1 | discontinued |
| 26 | 85999 |
ВТУЛКА BUSHING |
2 | |
| 27 | 8138211 |
КРЕПЕЖНЫЙ КОЛПАК (R, RL, D) HOLD DOWN HOOD (R,RL,D) |
1 | discontinued |
| 27 | 8138221 |
КРЕПЕЖНЫЙ КРЮК (RX) HOLD DOWN HOOK (RX) |
1 | discontinued |
| 28 | 814070 |
ПРУЖИНА SPRING |
1 | discontinued |
| 29 | 13438 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 30 | 813835T |
БОКОВОЙ РЫЧАГ (R, RL, D) SIDE ARM (R,RL,D) |
2 | discontinued |
| 30 | 813836T |
БОКОВОЙ РЫЧАГ (RX) SIDE ARM (RX) |
2 | discontinued |
| 31 | 813842 |
СТОП (RX) STOP (RX) |
2 | discontinued |
| 32 | 62233 |
ВИНТ (№10-16 x 0.625) (RX) SCREW (#10-16 x .625) (RX) |
4 | discontinued |
| 33 | 8138411 |
ПРОБКА PLUG |
4 | discontinued |
| 34 | 90092 |
ВИНТ SCREW |
4 | superseded |
| 35 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь WASHER (.406 x .734 x .063) Stainless Steel |
4 | |
| 36 | 61615 |
ВТУЛКА BUSHING |
4 | discontinued |
| 37 | 817248 |
ПРОСТАВКА SPACER |
4 | discontinued |
| 38 | 813843T |
ЦЕНТРАЛЬНЫЙ РЫЧАГ (R, RL, D) CENTER ARM (R,RL,D) |
1 | discontinued |
| 38 | 813844T |
ЦЕНТРАЛЬНЫЙ РЫЧАГ (RX) CENTER ARM (RX) |
1 | discontinued |
| 39 | 817249 |
ВИНТ SCREW |
2 | discontinued |
| 40 | 48237 |
ВТУЛКА BUSHING |
4 | |
| 41 | 8138312 |
ЗАЩЕЛКА LATCH |
1 | discontinued |
| 42 | 813832A1 |
РЫЧАГ В СБОРЕ LEVER ASSEMBLY |
1 | discontinued |
| 43 | 815779 |
ШТИФТ Защелка PIN Latch |
1 | discontinued |
| 44 | 61319 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
2 | |
| 45 | 813827 |
УСТАНОВОЧНАЯ ПЛАНКА BASE PAD |
1 | discontinued |
| 46 | 41772 |
ВИНТ (№10-24 x 0.500) SCREW (#10-24 x .500) |
1 | discontinued |
| 47 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь WASHER (.203 x .562 x .060) Stainless Steel |
1 | |
| 48 | 88489 |
ВИНТ (0.250-28 x 2.500) SCREW (.250-28 x 2.500) |
4 | superseded |
| 49 | 816511 |
ШАЙБА WASHER |
8 | discontinued |
| 50 | 35280 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь WASHER (.255 x .620 x .030) Stainless Steel |
4 | |
| 51 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
4 | superseded |
| 52 | 813130T |
ОСНОВАНИЕ ПАЛУБЫ DECK BASE |
1 | discontinued |
| 53 | 816693 |
УПОР BUMPER |
2 | discontinued |
| 54 | 88904 |
ВИНТ (№8-18 x 0.620) SCREW (#8-18 x .620) |
2 |
