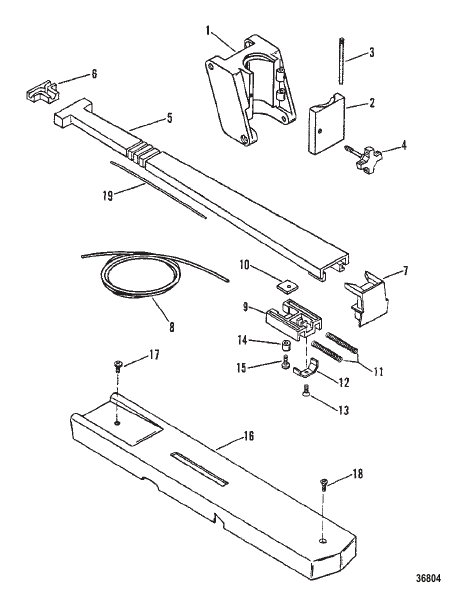

DECK BASE AND SIDE ARMS (SMALL)
Parts (23)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813130A4 |
ОСНОВА ПАЛУБЫ В СБОРЕ (R, RL, D) DECK BASE ASSEMBLY (R,RL,D) |
1 | discontinued |
| - | 813130A6 |
ОСНОВА ПАЛУБЫ В СБОРЕ (RX) DECK BASE ASSEMBLY (RX) |
1 | discontinued |
| 1 | 813131T |
КОРПУС Колонка HOUSING Column |
1 | discontinued |
| 10 | 8138462 |
РАЗГРУЗОЧНАЯ ПЛАСТИНА RELEASE PLATE |
1 | discontinued |
| 11 | 813847 |
ПРУЖИНА SPRING |
2 | discontinued |
| 12 | 813848 |
СТОП Высвобождение STOP Release |
1 | discontinued |
| 13 | 814069 |
ВИНТ SCREW |
1 | discontinued |
| 14 | 814289 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 15 | 15124 |
ВИНТ (№10-32 x 0.750) SCREW (#10-32 x .750) |
1 | |
| 16 | 813828T |
Панель двигателя (R, RL, D) MOTOR PAD (R,RL,D) |
1 | discontinued |
| 16 | 813830T |
Панель двигателя (RX) MOTOR PAD (RX) |
1 | discontinued |
| 17 | 41772 |
ВИНТ (№10-24 x 0.500) SCREW (#10-24 x .500) |
1 | discontinued |
| 18 | 86843 |
ВИНТ (№10-24 x 0.500) SCREW (#10-24 x .500) |
1 | |
| 19 | 816378 |
ТРУБОПРОВОД TUBING |
1 | discontinued |
| 2 | 812382T |
ДВЕРЬ DOOR |
1 | discontinued |
| 3 | 8123831 |
ШТИФТ PIN |
1 | discontinued |
| 4 | 812469 |
ДВЕРНАЯ РУЧКА DOOR KNOB |
1 | superseded |
| 5 | 814287 |
РУКОЯТКА HANDLE |
1 | discontinued |
| 6 | 814114 |
ФИКСАТОР Трос RETAINER Rope |
1 | discontinued |
| 7 | 813849 |
НАПРАВЛЯЮЩАЯ ТРОСА ROPE GUIDE |
1 | discontinued |
| 8 | 814305A1 |
ТРОС (R, RL, D) ROPE (R,RL,D) |
1 | discontinued |
| 8 | 814305A3 |
ТРОС (RX) ROPE (RX) |
1 | discontinued |
| 9 | 813845A3 |
ВЫСВОБОЖДЕНИЕ КРЕПЕЖА HOLD DOWN RELEASE |
1 | discontinued |
