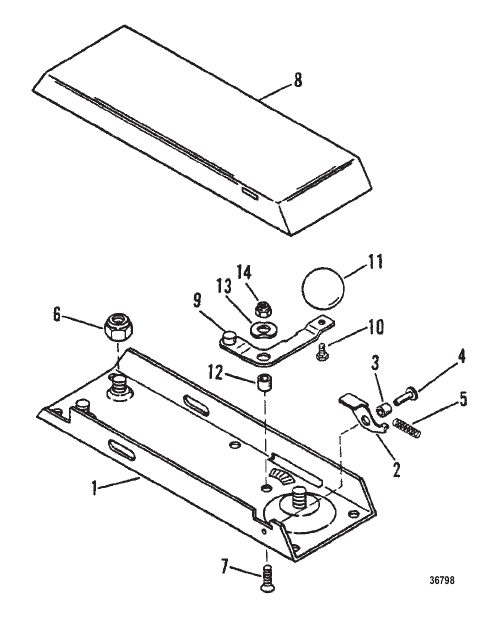

SUB BASE (Remote)
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 813853A4 |
НИЖНЯЯ ПЛИТА В СБОРЕ SUB BASE ASSEMBLY |
1 | discontinued |
| 1 | 813853A6 |
НИЖНЯЯ ПЛИТА В СБОРЕ SUB BASE ASSEMBLY |
1 | discontinued |
| 10 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 11 | 816738 |
РУЧКА KNOB |
1 | discontinued |
| 12 | 8142901 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 13 | 67983 |
ШАЙБА WASHER |
1 | |
| 14 | 35045 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | superseded |
| 2 | 813858 |
ЗАМОК LOCK |
1 | discontinued |
| 3 | 814291 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 4 | 8143021 |
ЗАКЛЕПКА RIVET |
1 | discontinued |
| 5 | 814285 |
ЗАЛИВОЧНАЯ ПЛАСТИНА FILLER PLATE |
1 | discontinued |
| 6 | 35778 |
ГАЙКА (.500-20) NUT (.500-20) |
3 | superseded |
| 7 | 814301 |
ВИНТ SCREW |
1 | discontinued |
| 8 | 814610A1 |
КРЫШКА В СБОРЕ COVER ASSEMBLY |
1 | discontinued |
| 9 | 813856A2 |
РЫЧАГ В СБОРЕ LEVER ASSEMBLY |
1 | discontinued |
