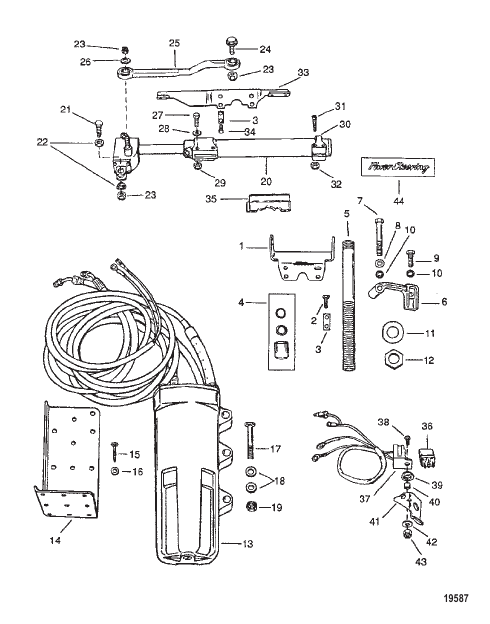

Power Steering Components
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 17771 |
КРЕПЛЕНИЕ MOUNT |
1 | discontinued |
| 10 | 34863 |
ГАЙКА (.375-24) NUT (.375-24) |
2 | superseded |
| 11 | 42100 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
2 | |
| 12 | 37984 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | superseded |
| 13 | 811290 |
АККУМУЛЯТОР ACCUMULATOR |
1 | discontinued |
| 14 | 817372 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 15 | 16862 |
ВИНТ (0.250-10 x 1.25) SCREW (.250-10 x 1.25) |
4 | discontinued |
| 16 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4 | superseded |
| 17 | 4000383 |
ВИНТ (M10 x 70) SCREW (M10 x 70) |
2 | |
| 18 | 4002319 |
ШАЙБА WASHER |
4 | |
| 19 | 13914 |
ГАЙКА (M10) NUT (M10) |
2 | superseded |
| 2 | 59702 |
ВИНТ (0.250-28 x 0.875), нержавеющая сталь SCREW (.250-28 x .875) Stainless Steel |
4 | |
| 20 | 811289 |
РУЛЕВОЙ ПРИВОД ACTUATOR |
1 | superseded |
| 21 | 94319 |
ВИНТ (0.375-24 x 1.5) SCREW (.375-24 x 1.5) |
1 | |
| 22 | 17405 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 23 | 34863 |
ГАЙКА (.375-24) NUT (.375-24) |
3 | superseded |
| 24 | 14000 |
ВИНТ (0.375-24 x 1.25) SCREW (.375-24 x 1.25) |
1 | superseded |
| 25 | 92876A4 |
СТЕРЖЕНЬ ТЯГИ В СБОРЕ LINK ROD ASSEMBLY |
1 | discontinued |
| 26 | 68300 |
ШАЙБА (0.88 x 0.39 x 0.06) WASHER (..88 x .39 x .06) |
1 | discontinued |
| 27 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 28 | 43450 |
ШАЙБА WASHER |
2 | superseded |
| 29 | 400634 |
ГАЙКА (M6) NUT (M6) |
2 | superseded |
| 3 | 88404 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
4 | |
| 30 | 811292 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 31 | 818182 |
ВИНТ SCREW |
2 | discontinued |
| 32 | 400263 |
ГАЙКА (M5) NUT (M5) |
2 | discontinued |
| 33 | 811291 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 34 | 38601 |
ВИНТ (0.250-28 x 1.250) SCREW (.250-28 x 1.250) |
4 | |
| 35 | 197491 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 36 | 18211 |
ПЕРЕКЛЮЧАТЕЛЬ РЕЛЕ RELAY SWITCH |
1 | discontinued |
| 37 | 18244A1 |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 38 | 18124 |
ВИНТ (№10-32 x 0.750) SCREW (#10-32 x .750) |
1 | discontinued |
| 39 | 90329 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 4 | 78862A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | superseded |
| 40 | 309772 |
ПРОСТАВКА SPACER |
1 | |
| 41 | 816994 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 42 | 42118 |
ШАЙБА WASHER |
1 | |
| 43 | 29488 |
ГАЙКА (№10-32) NUT (#10-32) |
1 | superseded |
| 44 | 81563024 |
НАКЛЕЙКА DECAL |
1 | discontinued |
| 5 | 71565 |
ТРУБА Направляющая троса TUBE Cable Guide |
1 | |
| 6 | 17776 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | discontinued |
| 7 | 817040 |
ВИНТ (0.375-24 x 2.75) SCREW (.375-24 x 2.75) |
1 | discontinued |
| 8 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь WASHER (.406 x .734 x .063) Stainless Steel |
1 | |
| 9 | 90092 |
ВИНТ SCREW |
1 | superseded |
