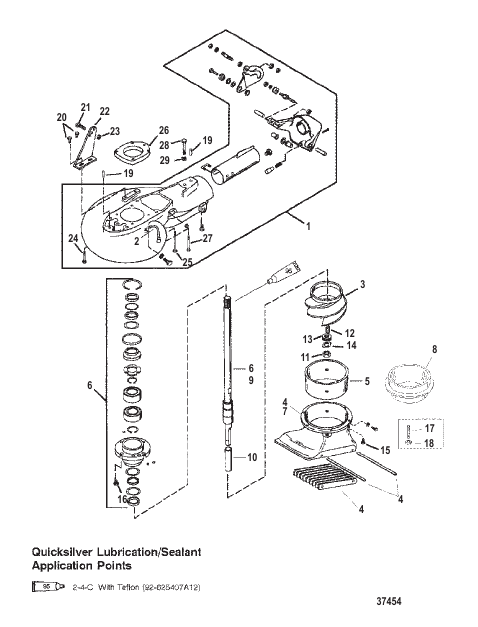

JET PUMP ASSEMBLY
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 80140090 |
ВОДОМЕТНЫЙ НАСОС В СБОРЕ (ЧЕРНЫЙ) [0G582704] & Below JET PUMP ASSEMBLY (BLACK) [0G582704] & Below |
1 | superseded |
| - | 80140190 |
ВОДОМЕТНЫЙ НАСОС В СБОРЕ (СЕРЫЙ) [0G582704] & Below JET PUMP ASSEMBLY (GRAY) [0G582704] & Below |
1 | superseded |
| - | 85576690 |
ВОДОМЕТНЫЙ НАСОС В СБОРЕ [0G582705] & Up JET PUMP ASSEMBLY [0G582705] & Up |
1 | superseded |
| 1 | 80141190 |
КОРПУС Насос [0G582704] & Below HOUSING Pump [0G582704] & Below |
1 | superseded |
| 1 | 85576790 |
КОРПУС Насос [0G582705] & Up HOUSING Pump [0G582705] & Up |
1 | superseded |
| 10 | 8271891 |
РУКАВ SLEEVE |
1 | |
| 11 | 8271901 |
ГАЙКА NUT |
1 | |
| 12 | 801405875 |
КЛЮЧ KEY |
1 | |
| 13 | 801404875 |
РЕГУЛИРОВОЧНАЯ ПРОКЛАДКА Крыльчатка SHIM Impeller |
8 | |
| 14 | 801403875 |
ЛЕПЕСТКОВАЯ ШАЙБА TAB WASHER |
1 | |
| 15 | 848497 |
ВИНТ (0.312-18 x 1.00) [0G582704] & Below SCREW (.312-18 x 1.00) [0G582704] & Below |
6 | |
| 16 | 19923088 |
ВИНТ (0.250-20 x 0.875) [0G582704] & Below SCREW (.250-20 x .875) [0G582704] & Below |
4 | |
| 16 | 848497 |
ВИНТ (0.312-18 x 1.00) [0G582705] & Up SCREW (.312-18 x 1.00) [0G582705] & Up |
4 | |
| 17 | 855840 |
ШПИЛЬКА (0.312-18 x 1.81) [0G582705] & Up STUD (.312-18 x 1.81) [0G582705] & Up |
6 | |
| 18 | 67980 |
ГАЙКА (0.312-18) [0G582705] & Up NUT (.312-18) [0G582705] & Up |
6 | superseded |
| 19 | 801407 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 2 | 827490 |
РУКАВ Смазка HOSE Lube |
1 | |
| 20 | 19923062 |
ВИНТ (0.250-20 x 0.625) SCREW (.250-20 x .625) |
2 | |
| 21 | 60411 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
1 | |
| 22 | 801410 |
КРОНШТЕЙН Опора кабеля BRACKET Cable Support |
1 | |
| 23 | 67980 |
ГАЙКА (0.312-18) NUT (.312-18) |
1 | superseded |
| 24 | 4010860 |
ВИНТ Шестигранный фланец (M10 x 60), нержавеющая сталь SCREW (M10 x 60) Hex Flange - Stainless Steel |
2 | |
| 25 | 4010890 |
ВИНТ Шестигранный фланец (M10 x 90), нержавеющая сталь SCREW (M10 x 90) Hex Flange - Stainless Steel |
1 | |
| 26 | 808747 |
ПЕРЕХОДНИК Насос ADAPTER Pump |
1 | |
| 27 | 4010870 |
ВИНТ Шестигранный фланец (M10 x 70), нержавеющая сталь SCREW (M10 x 70) Hex Flange - Stainless Steel |
1 | |
| 28 | 843575 |
ВИНТ (0.375-16 x 4.00), нержавеющая сталь SCREW (.375-16 x 4.00) Stainless Steel |
1 | |
| 29 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) WASHER (.406 x .750 x .104) |
1 | superseded |
| 3 | 80141490 |
КРЫЛЬЧАТКА IMPELLER |
1 | superseded |
| 4 | 80141290 |
КОРПУС Впуск [0G582704] & Below HOUSING Intake [0G582704] & Below |
1 | discontinued |
| 5 | 8271883 |
ОТДЕЛКА [0G582704] & Below LINER [0G582704] & Below |
1 | |
| 6 | 80141390 |
ВЕДУЩИЙ ВАЛ [0G582704] & Below DRIVESHAFT [0G582704] & Below |
1 | discontinued |
| 7 | 85576890 |
КОРПУС Впуск [0G582705] & Up HOUSING Intake [0G582705] & Up |
1 | |
| 8 | 855771 |
ОТДЕЛКА [0G582705] & Up LINER [0G582705] & Up |
1 | |
| 9 | 85576990 |
ВЕДУЩИЙ ВАЛ [0G582705] & Up DRIVESHAFT [0G582705] & Up |
1 |
