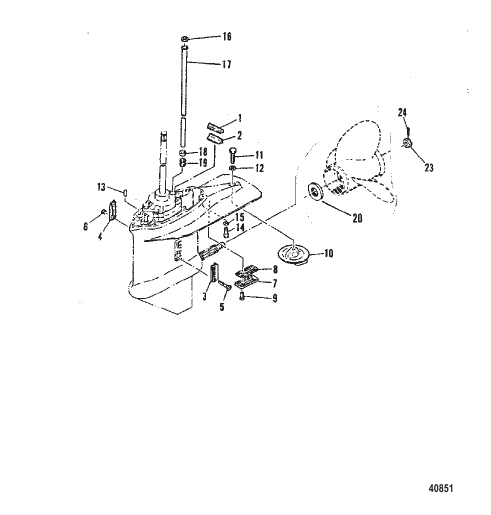

LOWER GEAR HOUSING ASSEMBLY
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 94533M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 81448M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 10 | 83859M |
ВКЛАДКА ОБРЕЗКИ TRIM TAB |
1 | superseded |
| 11 | 94532M |
БОЛТ BOLT |
1 | discontinued |
| 12 | 82218M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 13 | 82364M |
ПИН-дюбель PIN Dowel |
2 | discontinued |
| 14 | 95416M |
БОЛТ BOLT |
6 | discontinued |
| 15 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
6 | discontinued |
| 16 | 81852M |
ШАЙБА WASHER |
1 | discontinued |
| 17 | 83451M |
ТРУБКА (КОРОТКАЯ) TUBE (SHORT) |
1 | discontinued |
| 17 | 83452M |
ТРУБКА (ДЛИННАЯ) TUBE (LONG) |
1 | discontinued |
| 18 | 81989M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 19 | 81427M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 2 | 81449M |
РУКОВОДСТВО GUIDE |
1 | discontinued |
| 20 | 73345A1 |
УПОРНАЯ ШАЙБА [M-019580/ML-361825/E-151230/EL-455005] и ниже THRUST WASHER [M-019580/ML-361825/E-151230/EL-455005] & Below |
1 | |
| 20 | 92647M |
УПОРНАЯ ШАЙБА [M-019581/ML-361826/E-151231/EL-455006] И выше THRUST WASHER [M-019581/ML-361826/E-151231/EL-455006] & Up |
1 | superseded |
| 21 | 84445M |
ПРОСТАВКА [M-019581/ML-361826/E-151231/EL-455006] И выше SPACER [M-019581/ML-361826/E-151231/EL-455006] & Up |
1 | superseded |
| 22 | 83700M |
ШАЙБА [M-019581/ML-361826/E-151231/EL-455006] и ниже WASHER [M-019581/ML-361826/E-151231/EL-455006] & Below |
1 | discontinued |
| 23 | 81775M |
ГАЙКА NUT |
1 | superseded |
| 24 | 82132M |
ШПИЛЬНИК COTTER PIN |
1 | discontinued |
| 3 | 19166M |
КРЫШКА COVER |
1 | discontinued |
| 4 | 19167M |
КРЫШКА COVER |
1 | discontinued |
| 5 | 83858M |
ВИНТ SCREW |
1 | discontinued |
| 6 | 81781M |
ГАЙКА NUT |
1 | superseded |
| 7 | 95417M |
КРЕПЛЕНИЕ ПЛАСТИНЫ ДВОЙНЫМ ВИНТОМ PLATE DOUBLE SCREW MOUNTING |
1 | discontinued |
| 7 | 835081M |
КРЕПЛЕНИЕ ПЛАСТИНЫ ОДНИМ ВИНТОМ PLATE SINGLE SCREW MOUNTING |
1 | discontinued |
| 8 | 95418M |
ПРОКЛАДКА КРЕПЛЕНИЕ ДВОЙНЫМ ВИНТОМ GASKET DOUBLE SCREW MOUNTING |
1 | discontinued |
| 8 | 835082M |
ПРОКЛАДКА КРЕПЛЕНИЕ ОДНИМ ВИНТОМ GASKET SINGLE SCREW MOUNTING |
1 | discontinued |
| 9 | 83870M |
ВИНТ ДВОЙНОЙ ВИНТ КРЕПЛЕНИЕ SCREW DOUBLE SCREW MOUNTING |
2 | discontinued |
| 9 | 83870M |
ВИНТОВОЕ ОДНОВИНТОВОЕ КРЕПЛЕНИЕ SCREW SINGLE SCREW MOUNTING |
1 | discontinued |
