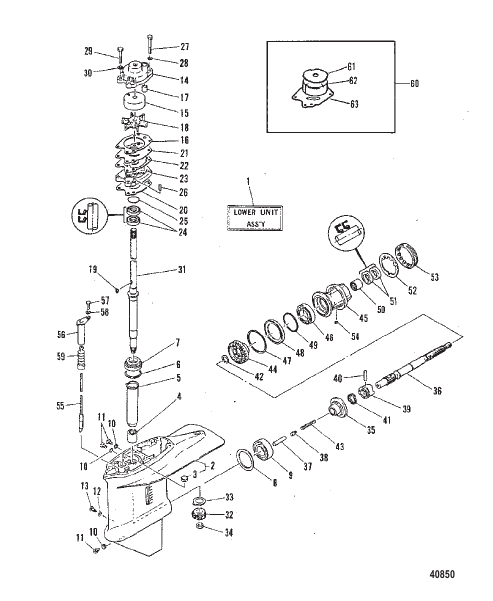

GEAR HOUSING ASSEMBLY
Parts (86)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 94533M |
КОМПЛЕКТ ПРОКЛАДОК НИЖНЕГО БЛОКА GASKET SET LOWER UNIT |
1 | discontinued |
| - | 84363M |
РЕМКОМПЛЕКТ ВОДЯНОЙ НАСОС REPAIR KIT WATER PUMP |
1 | superseded |
| 1 | 9680M |
КОРПУС ШЕСТЕРНИ В СБОРЕ (КОРОТКИЙ) GEAR HOUSING ASSEMBLY COMPLETE (SHORT) |
1 | discontinued |
| 1 | 9681M |
КОРПУС РЕДУКТОРА В СБОРЕ (ДЛИННЫЙ) В КОМПЛЕКТЕ GEAR HOUSING ASSEMBLY COMPLETE (LONG) |
1 | discontinued |
| 10 | 81987M |
ПРОКЛАДКА GASKET |
3 | superseded |
| 11 | 81924M |
ПРОБКА PLUG |
3 | discontinued |
| 12 | 95610M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 13 | 83392M |
ВИНТ SCREW |
1 | discontinued |
| 14 | 83396M |
КРЫШКА COVER |
1 | discontinued |
| 15 | 83403M |
ВСТАВИТЬ INSERT |
1 | discontinued |
| 16 | 83398M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 17 | 81426M |
УПЛОТНЕНИЕ SEAL |
1 | |
| 18 | 99971M |
РАБОЧЕЕ КОЛЕСО IMPELLER |
1 | |
| 19 | 83444M |
КЛЮЧ KEY |
1 | discontinued |
| 2 | 9573M |
КОРПУС РЕДУКТОРА В СБОРЕ БАЗОВЫЙ GEAR HOUSING ASSEMBLY BASIC |
1 | discontinued |
| 20 | 83865M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 21 | 83400M |
ЛИЦЕВАЯ ПЛИТА FACE PLATE |
1 | discontinued |
| 22 | 83399M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 23 | 83864M |
БАЗА BASE |
1 | superseded |
| 24 | 82233M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | superseded |
| 25 | 82275M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 26 | 82354M |
ПИН-код PIN |
2 | discontinued |
| 27 | 84057M |
БОЛТ BOLT |
2 | discontinued |
| 28 | 82217M |
ШАЙБА WASHER |
2 | discontinued |
| 29 | 82468M |
БОЛТ BOLT |
2 | superseded |
| 3 | 83857M |
ПРОБКА PLUG |
1 | discontinued |
| 30 | 82217M |
ШАЙБА WASHER |
2 | discontinued |
| 31 | 83866M |
ПРИВОДНОЙ ВАЛ (КОРОТКИЙ) DRIVESHAFT (SHORT) |
1 | discontinued |
| 31 | 83867M |
ПРИВОДНОЙ ВАЛ (ДЛИННЫЙ) DRIVESHAFT (LONG) |
1 | discontinued |
| 32 | 83869M |
Шестерня Шестерня GEAR Pinion |
1 | superseded |
| 33 | 81455M |
ПОДШИПНИК BEARING |
1 | discontinued |
| 34 | 81772M |
ГАЙКА NUT |
1 | discontinued |
| 35 | 83877M |
МЕХАНИЗМ GEAR |
1 | superseded |
| 36 | 94531M |
ВАЛ SHAFT |
2 | discontinued |
| 37 | 83419M |
СЛЕДУЮЩАЯ Кэм FOLLOWER Cam |
1 | discontinued |
| 38 | 81475M |
СЛАЙД SLIDE |
1 | discontinued |
| 39 | 81473M |
СЦЕПЛЕНИЕ CLUTCH |
1 | superseded |
| 4 | 82316M |
ПОДШИПНИК BEARING |
1 | superseded |
| 40 | 81903M |
ПИН-код PIN |
1 | discontinued |
| 41 | 81474M |
КОЛЬЦО RING |
1 | discontinued |
| 42 | 81837M |
ШАЙБА WASHER |
1 | discontinued |
| 43 | 83429M |
ВЕСНА SPRING |
1 | discontinued |
| 44 | 83879M |
МЕХАНИЗМ GEAR |
1 | superseded |
| 45 | 83880M |
ДЕРЖАТЕЛЬНЫЙ ПОДШИПНИК CARRIER Bearing |
1 | superseded |
| 46 | 82296M |
ПОДШИПНИК BEARING |
1 | superseded |
| 47 | 19160M |
ПРОКЛАДКА (0,10 ММ) SHIM (0.10MM) |
AR | discontinued |
| 47 | 81464M |
ПРОКЛАДКА (0,12 ММ) SHIM (0.12MM) |
AR | superseded |
| 47 | 19161M |
ПРОКЛАДКА (0,15 ММ) SHIM (0.15MM) |
AR | discontinued |
| 47 | 19162M |
ПРОКЛАДКА (0,18 ММ) SHIM (0.18MM) |
AR | discontinued |
| 47 | 19163M |
ПРОКЛАДКА (0,30 ММ) SHIM (0.30MM) |
AR | superseded |
| 47 | 19164M |
ПРОКЛАДКА (0,40 ММ) SHIM (0.40MM) |
AR | discontinued |
| 47 | 19165M |
ПРОКЛАДКА (0,50 ММ) SHIM (0.50MM) |
AR | discontinued |
| 48 | 81461M |
ШАЙБА WASHER |
1 | discontinued |
| 49 | 82289M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 5 | 83868M |
РУКАВ SLEEVE |
1 | discontinued |
| 50 | 82317M |
ПОДШИПНИК BEARING |
1 | discontinued |
| 51 | 82233M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
2 | superseded |
| 52 | 81877M |
ШАЙБА WASHER |
1 | discontinued |
| 53 | 81450M |
ГАЙКА NUT |
1 | superseded |
| 54 | 81916M |
КЛЮЧ KEY |
1 | discontinued |
| 55 | 83881M |
КУЛАЧОК СДВИГА (КОРОТКИЙ) SHIFT CAM (SHORT) |
1 | discontinued |
| 55 | 83882M |
КУЛАЧОК СДВИГА (ДЛИННЫЙ) SHIFT CAM (LONG) |
1 | discontinued |
| 56 | 83883M |
ВТУЛКА BUSHING |
1 | discontinued |
| 57 | 82451M |
БОЛТ BOLT |
1 | superseded |
| 58 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 59 | 82881M |
ЗАГРУЗКА BOOT |
1 | discontinued |
| 6 | 19148M |
ПРОКЛАДКА (0,10 ММ) SHIM (0.10MM) |
AR | discontinued |
| 6 | 81469M |
ПРОКЛАДКА (0,12 ММ) SHIM (0.12MM) |
AR | superseded |
| 6 | 19149M |
ПРОКЛАДКА (0,15 ММ) SHIM (0.15MM) |
AR | discontinued |
| 6 | 19150M |
ПРОКЛАДКА (0,18 ММ) SHIM (0.18MM) |
AR | discontinued |
| 6 | 19151M |
ПРОКЛАДКА (0,30 ММ) SHIM (0.30MM) |
AR | superseded |
| 6 | 19152M |
ПРОКЛАДКА (0,40 ММ) SHIM (0.40MM) |
AR | discontinued |
| 6 | 19153M |
ПРОКЛАДКА (0,50 ММ) SHIM (0.50MM) |
AR | discontinued |
| 60 | 83884M |
НАСОС ДЛЯ Воды - Хром PUMP KIT Water - Chrome |
1 | discontinued |
| 61 | 83449M |
ВСТАВИТЬ INSERT |
1 | discontinued |
| 62 | 83450M |
ВНУТРЕННЯЯ ПЛАСТИНА INNER PLATE |
1 | discontinued |
| 63 | 83448M |
ЛИЦЕВАЯ ПЛИТА FACE PLATE |
1 | discontinued |
| 7 | 98933M |
ПОДШИПНИК BEARING |
1 | superseded |
| 8 | 19154M |
ПРОКЛАДКА (0,10 ММ) SHIM (0.10MM) |
AR | discontinued |
| 8 | 19155M |
ПРОКЛАДКА (0,12 ММ) SHIM (0.12MM) |
AR | superseded |
| 8 | 19156M |
ПРОКЛАДКА (0,15 ММ) SHIM (0.15MM) |
AR | discontinued |
| 8 | 19157M |
ПРОКЛАДКА (0,18 ММ) SHIM (0.18MM) |
AR | discontinued |
| 8 | 19158M |
ПРОКЛАДКА (0,30 ММ) SHIM (0.30MM) |
AR | discontinued |
| 8 | 19159M |
ПРОКЛАДКА (0,40 ММ) SHIM (0.40MM) |
AR | discontinued |
| 8 | 81460M |
ПРОКЛАДКА (0,50 ММ) SHIM (0.50MM) |
AR | discontinued |
| 9 | 82320M |
ПОДШИПНИК BEARING |
1 | superseded |
