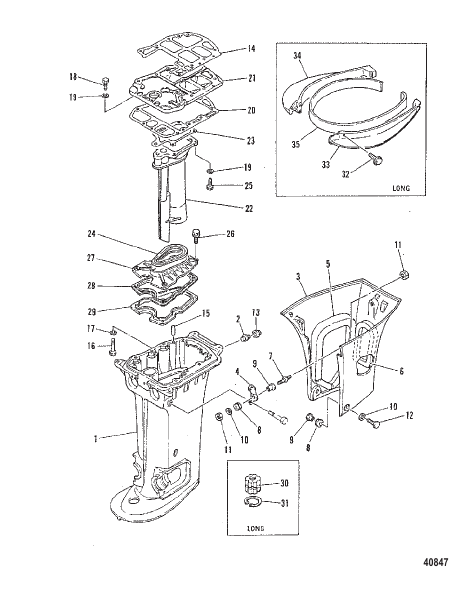

DRIVESHAFT HOUSING
Parts (38)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814556M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| - | 94533M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 8569M |
КОРПУС Приводной вал (КОРОТКИЙ) HOUSING Driveshaft (SHORT) |
1 | discontinued |
| 1 | 8570M |
КОРПУС Карданный вал (ДЛИННЫЙ) HOUSING Driveshaft (LONG) |
1 | discontinued |
| 10 | 94524M |
ШАЙБА WASHER |
4 | discontinued |
| 11 | 82389M |
ГАЙКА NUT |
4 | discontinued |
| 12 | 94526M |
БОЛТ BOLT |
2 | discontinued |
| 13 | 83042M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 14 | 83378M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 15 | 83379M |
ПИН-код PIN |
2 | discontinued |
| 16 | 97749M |
БОЛТ BOLT |
8 | discontinued |
| 17 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
8 | discontinued |
| 18 | 82405M |
БОЛТ BOLT |
3 | discontinued |
| 19 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
7 | discontinued |
| 2 | 94520M |
СТОП STOP |
1 | discontinued |
| 20 | 19175M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 21 | 814969M |
ПЛИТА Выхлопная PLATE Exhaust |
1 | discontinued |
| 22 | 97750M |
ТРУБКА Выхлопная TUBE Exhaust |
1 | discontinued |
| 23 | 83383M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 24 | 83384M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 25 | 84058M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
4 | |
| 26 | 82476M |
БОЛТ BOLT |
4 | discontinued |
| 27 | 814970M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 28 | 83386M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 29 | 814971M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 3 | 94517M |
ФАРТУК APRON |
1 | discontinued |
| 30 | 94529M |
ВТУЛКА (ДЛИННАЯ) BUSHING (LONG) |
1 | discontinued |
| 31 | 94530M |
ЗАЖИМ (ДЛИННЫЙ) CIRCLIP (LONG) |
1 | discontinued |
| 32 | 82476M |
БОЛТ (ДЛИННЫЙ) BOLT (LONG) |
3 | discontinued |
| 33 | 93046M |
ЗАЩИТНИК (ДЛИННЫЙ) SPLASH PLATE (LONG) |
1 | discontinued |
| 34 | 93047M |
ЗАЩИТНИК (ДЛИННЫЙ) SPLASH PLATE (LONG) |
1 | discontinued |
| 35 | 93048M |
УПЛОТНЕНИЕ (ДЛИННОЕ) SEAL (LONG) |
1 | discontinued |
| 4 | 94521M |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 5 | 94518M |
ДЕМПФЕР DAMPER |
2 | discontinued |
| 6 | 94519M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 7 | 94523M |
БОЛТ BOLT |
2 | discontinued |
| 8 | 94525M |
ВТУЛКА GROMMET |
4 | discontinued |
| 9 | 94522M |
Ошейник COLLAR |
4 | discontinued |
