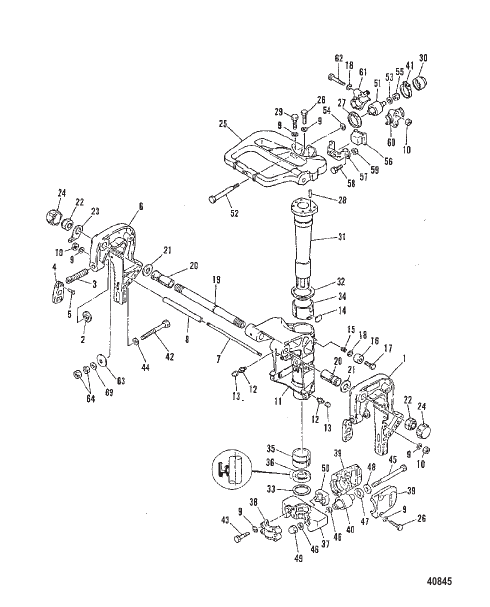

CLAMP AND SWIVEL BRACKET
Parts (66)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9822M |
ЗАЖИМ КРОНШТЕЙН Порт CLAMP BRACKET Port |
1 | discontinued |
| 10 | 82382M |
ГАЙКА NUT |
4 | discontinued |
| 11 | 9821M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 12 | 82369M |
ФИТИНГ FITTING |
4 | |
| 13 | 81439M |
КАП CAP |
4 | discontinued |
| 14 | 80633M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 15 | 83488M |
ВЕСНА SPRING |
1 | discontinued |
| 16 | 83490M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 17 | 43106M |
БОЛТ BOLT |
1 | discontinued |
| 18 | 82217M |
ШАЙБА WASHER |
5 | discontinued |
| 19 | 18974M |
БОЛТ BOLT |
1 | discontinued |
| 2 | 80638M |
ПАД PAD |
2 | discontinued |
| 20 | 41313M |
ВТУЛКА BUSHING |
2 | discontinued |
| 21 | 81836M |
ШАЙБА WASHER |
2 | discontinued |
| 22 | 81787M |
ГАЙКА NUT |
2 | superseded |
| 23 | 19111M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 24 | 81388M |
КРЫШКА [M-018005/ML-358040/E-151005/EL-453890] и ниже CAP [M-018005/ML-358040/E-151005/EL-453890] & Below |
2 | superseded |
| 24 | 811914M |
КЕПКА [M-018006/ML-358041/E-151006/EL-453891] и выше CAP [M-018006/ML-358041/E-151006/EL-453891] & Up |
2 | discontinued |
| 25 | 83513M |
КРОНШТЕЙН BRACKET |
1 | superseded |
| 26 | 95416M |
БОЛТ BOLT |
6 | discontinued |
| 27 | 83505M |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 28 | 82368M |
ПИН-код PIN |
2 | discontinued |
| 29 | 814575M |
БОЛТ BOLT |
2 | superseded |
| 3 | 83481M |
ВИНТ SCREW |
2 | discontinued |
| 30 | 83912M |
КАП CAP |
2 | discontinued |
| 31 | 83907M |
ВАЛ SHAFT |
1 | discontinued |
| 32 | 83482M |
ШАЙБА WASHER |
1 | discontinued |
| 33 | 83487M |
ШАЙБА WASHER |
1 | discontinued |
| 34 | 83483M |
ВТУЛКА BUSHING |
1 | discontinued |
| 35 | 83485M |
ВТУЛКА BUSHING |
1 | discontinued |
| 36 | 83486M |
УПЛОТНИТЕЛЬНОЕ масло SEAL Oil |
1 | discontinued |
| 37 | 83492M |
ЖИЛЬЕ HOUSING |
1 | superseded |
| 38 | 83491M |
ЖИЛЬЕ HOUSING |
1 | discontinued |
| 39 | 83512M |
КРЫШКА COVER |
2 | discontinued |
| 4 | 11868M |
РУЧКА HANDLE |
2 | discontinued |
| 40 | 83914M |
КРЕПЛЕНИЕ ДЕМПФЕРА MOUNT DAMPER |
2 | superseded |
| 41 | 83507M |
ЗАЖИМ [M-019580/ML-361825/E-151230/EL-455005] и ниже CLAMP [M-019580/ML-361825/E-151230/EL-455005] & Below |
2 | discontinued |
| 41 | 827148M |
ЗАЖИМ [M-019581/ML-361826/E-151231/EL-455006] И вверх CLAMP [M-019581/ML-361826/E-151231/EL-455006] & Up |
2 | discontinued |
| 42 | 84970M |
БОЛТ BOLT |
4 | discontinued |
| 43 | 82468M |
БОЛТ BOLT |
4 | superseded |
| 44 | 814576M |
ШАЙБА WASHER |
8 | superseded |
| 45 | 83510M |
БОЛТ BOLT |
2 | discontinued |
| 46 | 84429M |
ШАЙБА WASHER |
4 | discontinued |
| 47 | 81860M |
ШАЙБА WASHER |
2 | discontinued |
| 48 | 83915M |
ШАЙБА WASHER |
2 | discontinued |
| 49 | 82397M |
ГАЙКА NUT |
2 | discontinued |
| 5 | 81889M |
ПИН-код PIN |
2 | discontinued |
| 50 | 83511M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 51 | 83910M |
КРЕПЛЕНИЕ ДЕМПФЕРА MOUNT DAMPER |
2 | superseded |
| 52 | 83501M |
БОЛТ BOLT |
2 | discontinued |
| 53 | 83911M |
ШАЙБА WASHER |
2 | discontinued |
| 54 | 83504M |
ШАЙБА WASHER |
2 | discontinued |
| 55 | 84295M |
ГАЙКА NUT |
2 | discontinued |
| 56 | 83496M |
ДЕМПФЕР DAMPER |
1 | discontinued |
| 57 | 83497M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 58 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 59 | 82389M |
ГАЙКА NUT |
2 | discontinued |
| 6 | 9823M |
ЗАЖИМ КРОНШТЕЙН Правый борт CLAMP BRACKET Starboard |
1 | discontinued |
| 60 | 83498M |
КРЫШКА COVER |
2 | discontinued |
| 61 | 83499M |
КРЫШКА COVER |
2 | discontinued |
| 62 | 83506M |
БОЛТ BOLT |
4 | discontinued |
| 63 | 81812M |
ШАЙБА WASHER |
4 | discontinued |
| 64 | 82395M |
ГАЙКА NUT |
8 | discontinued |
| 7 | 83472M |
ШПИЛЬКА STUD |
1 | discontinued |
| 8 | 19258M |
ПРОСТАВКА SPACER |
1 | discontinued |
| 9 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
14 | discontinued |
