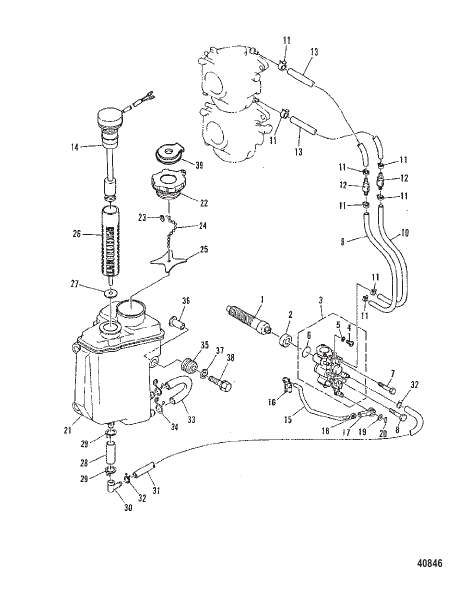

OIL PUMP
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814577M |
Шестеренчатый привод GEAR Driven |
1 | discontinued |
| 10 | 811045M |
ШЛАНГ HOSE |
1 | discontinued |
| 11 | 814585M |
КЛИП CLIP |
8 | discontinued |
| 12 | 814586M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | discontinued |
| 13 | 814587M |
ШЛАНГ HOSE |
2 | discontinued |
| 14 | 814968M |
ДАТЧИК В СБОРЕ Уровень масла [M-019580/ML-361825/E-151230/EL-455005] и ниже GAUGE ASSEMBLY Oil Level [M-019580/ML-361825/E-151230/EL-455005] & Below |
1 | superseded |
| 14 | 822883M |
ДАТЧИК В СБОРЕ Уровень масла [M-019581/ML-361826/E-151231/EL-455006] и выше GAUGE ASSEMBLY Oil Level [M-019581/ML-361826/E-151231/EL-455006] & Up |
1 | discontinued |
| 15 | 814588M |
стержень ROD |
1 | discontinued |
| 16 | 97742M |
ССЫЛКА LINK |
1 | discontinued |
| 17 | 16715M |
СОВМЕСТНЫЙ JOINT |
1 | |
| 18 | 82379M |
ГАЙКА NUT |
1 | superseded |
| 19 | 83768M |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 814578M |
ВТУЛКА BUSHING |
1 | discontinued |
| 20 | 814589M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 21 | 814590M |
ТАНК Масло TANK Oil |
1 | discontinued |
| 22 | 814591M |
КАП CAP |
1 | discontinued |
| 23 | 814592M |
ШАЙБА WASHER |
2 | discontinued |
| 24 | 814593M |
ЦЕПЬ CHAIN |
1 | discontinued |
| 25 | 814594M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 26 | 814595M |
ФИЛЬТР Масло STRAINER Oil |
1 | discontinued |
| 27 | 814596M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 28 | 811142M |
ШЛАНГ HOSE |
1 | discontinued |
| 29 | 814598M |
КЛИП CLIP |
2 | discontinued |
| 3 | 814579M |
НАСОС В СБОРЕ Впрыск масла PUMP ASSEMBLY Oil Injection |
1 | discontinued |
| 30 | 814599M |
РАЗЪЕМ CONNECTOR |
1 | discontinued |
| 31 | 814600M |
ШЛАНГ HOSE |
1 | discontinued |
| 32 | 82047M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 33 | 814966M |
ШЛАНГ HOSE |
1 | discontinued |
| 34 | 814967M |
КЛИП CLIP |
2 | discontinued |
| 35 | 93114M |
ДЕМПФЕР DAMPER |
3 | superseded |
| 36 | 82851M |
ВТУЛКА BUSHING |
3 | superseded |
| 37 | 83769M |
ШАЙБА WASHER |
3 | discontinued |
| 38 | 83285M |
БОЛТ BOLT |
3 | discontinued |
| 39 | 811015M |
КРЮК [M-015616/ML-351381/E-150276/EL-451766] И ВВЕРХ HOOK [M-015616/ML-351381/E-150276/EL-451766] & Up |
1 | discontinued |
| 4 | 814580M |
ВИНТОВАЯ СЛИВНАЯ ПРОБКА SCREW Drain Plug |
1 | discontinued |
| 5 | 814581M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 6 | 814582M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | discontinued |
| 7 | 814583M |
БОЛТ BOLT |
1 | discontinued |
| 8 | 814584M |
БОЛТ BOLT |
1 | discontinued |
| 9 | 811045M |
ШЛАНГ HOSE |
1 | discontinued |
