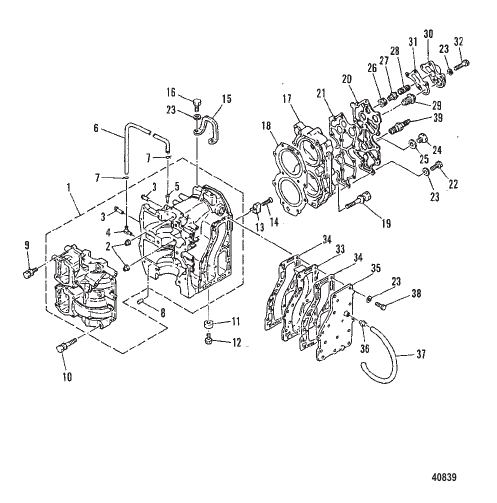

CRANKCASE AND CYLINDER HEAD
Parts (46)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 822878M |
СИЛОВАЯ ГОЛОВКА В КОМПЛЕКТЕ (РУЧНАЯ) POWERHEAD ASSEMBLY COMPLETE (MANUAL) |
1 | discontinued |
| - | 822879M |
СИЛОВАЯ ГОЛОВКА В КОМПЛЕКТЕ (ЭЛЕКТРИЧЕСКАЯ) POWERHEAD ASSEMBLY COMPLETE (ELECTRIC) |
1 | discontinued |
| - | 814556M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| - | 94533M |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок GASKET SET Lower Unit |
1 | discontinued |
| 1 | 814550M |
КАРТЕР В СБОРЕ (РУЧНОЙ) CRANKCASE ASSEMBLY (MANUAL) |
1 | discontinued |
| 1 | 814551M |
КАРТЕР В СБОРЕ (ЭЛЕКТРИЧЕСКИЙ) CRANKCASE ASSEMBLY (ELECTRIC) |
1 | discontinued |
| 10 | 41838M |
БОЛТ BOLT |
6 | discontinued |
| 11 | 83394M |
АНОД ANODE |
1 | discontinued |
| 12 | 84247M |
БОЛТ BOLT |
1 | superseded |
| 13 | 83330M |
АНОД ANODE |
1 | discontinued |
| 14 | 82168M |
ВИНТ SCREW |
1 | discontinued |
| 15 | 814553M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 16 | 82439M |
БОЛТ BOLT |
2 | discontinued |
| 17 | 8562M |
ГОЛОВНОЙ цилиндр HEAD Cylinder |
1 | discontinued |
| 18 | 95414M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 19 | 41884M |
БОЛТ (M8 x 55) BOLT (M8 x 55) |
11 | superseded |
| 2 | 81258M |
ПИН-код PIN |
2 | discontinued |
| 20 | 97703M |
КРЫШКА COVER |
1 | discontinued |
| 21 | 97704M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 22 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
11 | superseded |
| 23 | 82214M |
ШАЙБА WASHER |
31 | discontinued |
| 24 | 81926M |
ПРОБКА PLUG |
1 | discontinued |
| 25 | 81990M |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 26 | 82067M |
ВТУЛКА GROMMET |
1 | discontinued |
| 27 | 81267M |
КЛАПАН VALVE |
1 | discontinued |
| 28 | 83340M |
ВЕСНА SPRING |
1 | discontinued |
| 29 | 814554M |
ТЕРМОСТАТ THERMOSTAT |
1 | superseded |
| 3 | 83329M |
ФИТИНГ FITTING |
2 | discontinued |
| 30 | 97705M |
КРЫШКА COVER |
1 | discontinued |
| 31 | 814555M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 32 | 83285M |
БОЛТ BOLT |
4 | discontinued |
| 33 | 97707M |
ВНУТРЕННЯЯ КРЫШКА INNER COVER |
1 | discontinued |
| 34 | 83338M |
ПРОКЛАДКА [M-019580/ML-361825/E-151230/EL-455005] и ниже GASKET [M-019580/ML-361825/E-151230/EL-455005] & Below |
2 | superseded |
| 34 | 83338M |
ПРОКЛАДКА [M-019581/ML-361826/E-151210/EL-455006] И выше GASKET [M-019581/ML-361826/E-151210/EL-455006] & Up |
1 | superseded |
| 34A | 827176M |
ПРОКЛАДКА [M-019581/ML-361826/E-151210/EL-455006] И выше GASKET [M-019581/ML-361826/E-151210/EL-455006] & Up |
1 | discontinued |
| 35 | 97708M |
ВНЕШНЯЯ КРЫШКА OUTER COVER |
1 | discontinued |
| 36 | 80756M |
ФИТИНГ FITTING |
1 | superseded |
| 37 | 94476M |
ВТУЛКА GROMMET |
1 | discontinued |
| 38 | 82405M |
БОЛТ BOLT |
16 | discontinued |
| 39 | 82372M |
СВЕЧА ЗАЖИГАНИЯ SPARK PLUG |
2 | superseded |
| 4 | 80727M |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | discontinued |
| 5 | 80122M |
ФИТИНГ FITTING |
1 | discontinued |
| 6 | 83328M |
ШЛАНГ HOSE |
1 | discontinued |
| 7 | 82046M |
ЗАЖИМ CLAMP |
2 | discontinued |
| 8 | 82368M |
ПИН-код PIN |
2 | discontinued |
| 9 | 41837M |
БОЛТ BOLT |
9 | discontinued |
