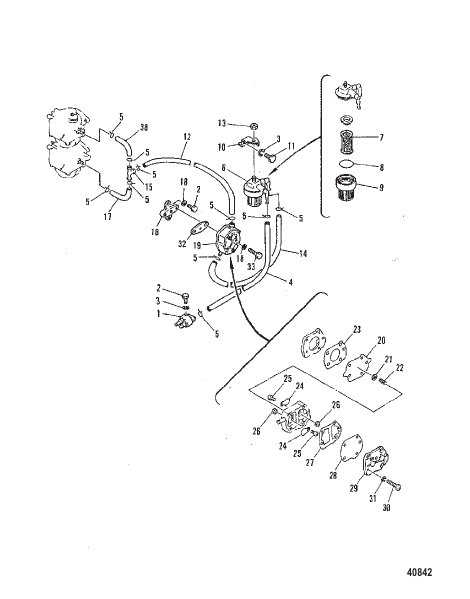

FUEL PUMP, LINES AND FILTER
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 814556M |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | discontinued |
| 1 | 14187M |
РАЗЪЕМ CONNECTOR |
1 | |
| 10 | 814568M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 11 | 84247M |
БОЛТ BOLT |
1 | superseded |
| 12 | 82012M |
ШЛАНГ HOSE |
1 | discontinued |
| 13 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 14 | 11841M |
ШЛАНГ [M-017335/ML-356050/E-150780/EL-453380] и ниже HOSE [M-017335/ML-356050/E-150780/EL-453380] & Below |
1 | superseded |
| 14 | 82012M |
ШЛАНГ [M-017336/ML-356051/E-150781/EL-453381] И выше HOSE [M-017336/ML-356051/E-150781/EL-453381] & Up |
1 | discontinued |
| 15 | 97083M |
ТРОЙНИК TEE FITTING |
1 | discontinued |
| 16 | 814569M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 17 | 82012M |
ШЛАНГ HOSE |
2 | discontinued |
| 18 | 82214M |
ШАЙБА WASHER |
4 | discontinued |
| 19 | 43113M |
НАСОС В СБОРЕ Топливный PUMP ASSEMBLY Fuel |
1 | superseded |
| 2 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
3 | superseded |
| 20 | 80606M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 21 | 80611M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 22 | 80610M |
ВЕСНА SPRING |
1 | discontinued |
| 23 | 80613M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 24 | 41888M |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | |
| 25 | 41889M |
ВИНТ (M3 x 5) SCREW (M3 x 5) |
2 | discontinued |
| 26 | 82537M |
ГАЙКА NUT |
2 | discontinued |
| 27 | 80614M |
ПРОКЛАДКА GASKET |
1 | superseded |
| 28 | 84141M |
ДИАФРАГМА DIAPHRAGM |
1 | |
| 29 | 80607M |
КРЫШКА COVER |
1 | discontinued |
| 3 | 82214M |
ШАЙБА WASHER |
2 | discontinued |
| 30 | 82522M |
ВИНТ SCREW |
3 | discontinued |
| 31 | 82208M |
ШАЙБА WASHER |
3 | superseded |
| 32 | 80757M |
ПРОКЛАДКА GASKET |
2 | superseded |
| 33 | 82428M |
БОЛТ BOLT |
2 | superseded |
| 4 | 82012M |
ШЛАНГ HOSE |
1 | discontinued |
| 5 | 82047M |
ЗАЖИМ CLAMP |
10 | discontinued |
| 6 | 11931M |
ФИЛЬТР В СБОРЕ [M-019580/ML-361825/E-151230/EL-455005] и ниже FILTER ASSEMBLY [M-019580/ML-361825/E-151230/EL-455005] & Below |
1 | superseded |
| 6 | 826964M |
ФИЛЬТР В СБОРЕ [M-019581/ML-361826/E-151231/EL-455006] И выше FILTER ASSEMBLY [M-019581/ML-361826/E-151231/EL-455006] & Up |
1 | superseded |
| 7 | 11934M |
ФИЛЬТР [M-019580/ML-361825/E-151230/EL-455005] И НИЖЕ FILTER [M-019580/ML-361825/E-151230/EL-455005] & Below |
1 | superseded |
| 7 | 826965M |
ФИЛЬТР [M-019581/ML-361826/E-151231/EL-455006] И выше FILTER [M-019581/ML-361826/E-151231/EL-455006] & Up |
1 | superseded |
| 8 | 84957M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [M-019580/ML-361825/E-151230/EL-455005] и ниже O-RING [M-019580/ML-361825/E-151230/EL-455005] & Below |
1 | |
| 8 | 826966M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО [M-019581/ML-361826/E-151231/EL-455006] и выше O-RING [M-019581/ML-361826/E-151231/EL-455006] & Up |
1 | superseded |
| 9 | 11935M |
ЧАШКА [M-019580/ML-361825/E-151230/EL-455005] и ниже CUP [M-019580/ML-361825/E-151230/EL-455005] & Below |
1 | discontinued |
| 9 | 826967M |
ЧАШКА [M-019581/ML-361826/E-151231/EL-455006] И ВВЕРХ CUP [M-019581/ML-361826/E-151231/EL-455006] & Up |
1 | discontinued |
