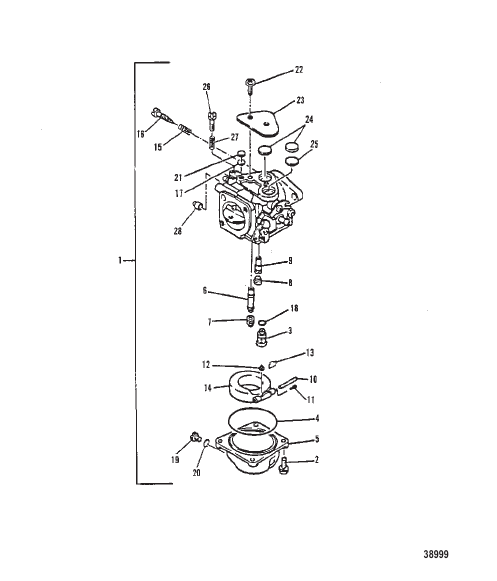

CARBURETOR
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 17068M |
РЕМКОМПЛЕКТ Карбюратора REPAIR KIT Carburetor |
1 | |
| 1 | 9660M |
КАРБЮРАТОР В СБОРЕ (ВЕРХНИЙ) (РУЧНОЙ) [M-017335/ML-356050/E-150780/EL-453380] и ниже CARBURETOR ASSEMBLY (UPPER)(MANUAL) [M-017335/ML-356050/E-150780/EL-453380] & Below |
1 | discontinued |
| 1 | 9676M |
КАРБЮРАТОР В СБОРЕ (НИЖНИЙ)(РУЧНОЙ) [M-017335/ML-356050/E-150780/EL-453380] и ниже CARBURETOR ASSEMBLY (LOWER)(MANUAL) [M-017335/ML-356050/E-150780/EL-453380] & Below |
1 | discontinued |
| 1 | 814564M |
КАРБЮРАТОР (ВЕРХНИЙ)(ЭЛЕКТРИЧЕСКИЙ) [M-017335/ML-356050/E-150780/EL-453380] и ниже CARBURETOR (UPPER)(ELECTRIC) [M-017335/ML-356050/E-150780/EL-453380] & Below |
1 | discontinued |
| 1 | 814565M |
КАРБЮРАТОР (НИЖНИЙ)(ЭЛЕКТРИЧЕСКИЙ) [M-017335/ML-356050/E-150780/EL-453380] и ниже CARBURETOR (LOWER)(ELECTRIC) [M-017335/ML-356050/E-150780/EL-453380] & Below |
1 | discontinued |
| 1 | 811361M |
КАРБЮРАТОР (ВЕРХНИЙ)(РУЧНОЙ) [M-017336/ML-356051/E-150781/EL-453381] И Вверх CARBURETOR (UPPER)(MANUAL) [M-017336/ML-356051/E-150781/EL-453381] & Up |
1 | discontinued |
| 1 | 811363M |
КАРБЮРАТОР (НИЖНИЙ)(РУЧНОЙ) [M-017336/ML-356051/E-150781/EL-453381] И Вверх CARBURETOR (LOWER)(MANUAL) [M-017336/ML-356051/E-150781/EL-453381] & Up |
1 | discontinued |
| 1 | 811362M |
КАРБЮРАТОР (ВЕРХНИЙ)(ЭЛЕКТРИЧЕСКИЙ) [M-017336/ML-356051/E-150781/EL-453381] И ВВЕРХ CARBURETOR (UPPER)(ELECTRIC) [M-017336/ML-356051/E-150781/EL-453381] & Up |
1 | discontinued |
| 1 | 811364M |
КАРБЮРАТОР (НИЖНИЙ)(ЭЛЕКТРИЧЕСКИЙ) [M-017336/ML-356051/E-150781/EL-453381] И Вверх CARBURETOR (LOWER)(ELECTRIC) [M-017336/ML-356051/E-150781/EL-453381] & Up |
1 | discontinued |
| 10 | 97730M |
ПИН-код PIN |
2 | discontinued |
| 11 | 82500M |
ВИНТ (M4 x 8) SCREW (M4 x 8) |
2 | discontinued |
| 12 | 92639M |
PIN-код с плавающей запятой PIN Float |
2 | |
| 13 | 82781M |
КЛИП CLIP |
2 | superseded |
| 14 | 83363M |
ПЛАВАТЬ FLOAT |
2 | superseded |
| 15 | 94499M |
ВЕСНА SPRING |
2 | discontinued |
| 16 | 17067M |
ВИНТ SCREW |
2 | discontinued |
| 17 | 97732M |
ТАРЕЛКА PLATE |
2 | discontinued |
| 18 | 97070M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 19 | 81293M |
ВИНТ Дренаж SCREW Drain |
2 | discontinued |
| 2 | 814566M |
ВИНТ SCREW |
8 | superseded |
| 20 | 94498M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 21 | 97733M |
УПАКОВКА PACKING |
2 | discontinued |
| 22 | 19147M |
ВИНТ SCREW |
4 | discontinued |
| 23 | 97734M |
ТАРЕЛКА PLATE |
2 | discontinued |
| 24 | 97735M |
ПРОКЛАДКА GASKET |
4 | discontinued |
| 25 | 97736M |
ТАРЕЛКА PLATE |
2 | discontinued |
| 26 | 81277M |
ВИНТ (НИЖНИЙ) SCREW (LOWER) |
1 | discontinued |
| 27 | 82080M |
ПРУЖИНА (НИЖНЯЯ) SPRING (LOWER) |
1 | discontinued |
| 28 | 19233M |
ВОРОТНИК (НИЖНИЙ) COLLAR (LOWER) |
1 | discontinued |
| 3 | 17050M |
КОМПЛЕКТ ИГОЛЬЧАТЫХ КЛАПАНОВ NEEDLE VALVE SET |
2 | |
| 4 | 83362M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 5 | 94495M |
ТЕЛО BODY |
2 | discontinued |
| 6 | 97727M |
СОПЛО NOZZLE |
2 | discontinued |
| 7 | 42437M |
ДжЕТ (#170) JET (#170) |
2 | discontinued |
| 8 | 83369M |
КАП CAP |
2 | superseded |
| 9 | 42438M |
ДжЕТ (#75) JET (#75) |
2 | discontinued |
