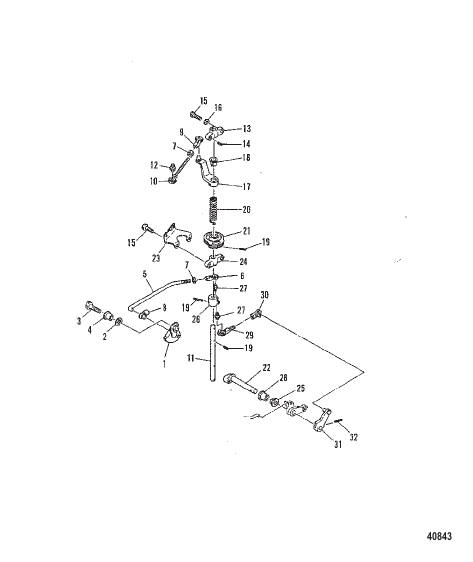

THROTTLE CONTROL
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 97740M |
САМ CAM |
1 | discontinued |
| 10 | 84100M |
ФИКСАТОР RETAINER |
1 | |
| 11 | 83555M |
ВАЛ SHAFT |
1 | discontinued |
| 12 | 84305M |
СОВМЕСТНЫЙ JOINT |
1 | discontinued |
| 13 | 83547M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 14 | 82154M |
ПИН-код PIN |
1 | discontinued |
| 15 | 83539M |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | superseded |
| 16 | 82214M |
ШАЙБА WASHER |
1 | discontinued |
| 17 | 811365M |
РЫЧАГ управления магнето [M-017336/ML-356051/E-150781/EL-453381] и вверх LEVER Magneto Control [M-017336/ML-356051/E-150781/EL-453381] & Up |
1 | discontinued |
| 17 | 83548M |
РЫЧАГ [M-017335/ML-356050/E-150780/EL-453380] и ниже LEVER [M-017335/ML-356050/E-150780/EL-453380] & Below |
1 | discontinued |
| 18 | 81946M |
ВТУЛКА BUSHING |
1 | discontinued |
| 19 | 82149M |
ПИН (18,5 мм) PIN (18.5 mm) |
3 | discontinued |
| 2 | 81868M |
ВОЛНОВАЯ ШАЙБА WAVE WASHER |
1 | discontinued |
| 20 | 83549M |
ВЕСНА SPRING |
1 | discontinued |
| 21 | 83919M |
ШКИВ PULLEY |
1 | discontinued |
| 22 | 814573M |
ВАЛ управления дроссельной заслонкой SHAFT Throttle Control |
1 | discontinued |
| 23 | 83551M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 24 | 83537M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 25 | 81946M |
ВТУЛКА BUSHING |
1 | discontinued |
| 26 | 97739M |
РЫЧАГ LEVER |
1 | discontinued |
| 27 | 84305M |
СОВМЕСТНЫЙ JOINT |
2 | discontinued |
| 28 | 814574M |
ВТУЛКА BUSHING |
1 | discontinued |
| 29 | 83921M |
стержень ROD |
1 | discontinued |
| 3 | 83285M |
БОЛТ BOLT |
1 | discontinued |
| 30 | 16715M |
СОВМЕСТНЫЙ JOINT |
1 | |
| 31 | 83526M |
РЫЧАГ LEVER |
1 | discontinued |
| 32 | 82158M |
ПИН-код PIN |
1 | discontinued |
| 4 | 94503M |
Ошейник COLLAR |
1 | discontinued |
| 5 | 97741M |
ССЫЛКА LINK |
1 | discontinued |
| 6 | 16715M |
СОВМЕСТНЫЙ JOINT |
1 | |
| 7 | 82388M |
ГАЙКА (М5) NUT (M5) |
2 | |
| 8 | 97742M |
ССЫЛКА LINK |
1 | discontinued |
| 9 | 83957M |
ССЫЛКА [M-015616/ML-351381/E-150276/EL-451766] И выше LINK [M-015616/ML-351381/E-150276/EL-451766] & Up |
1 | discontinued |
| 9 | 84101M |
ШТОК [M-015615/ML-351380/E-150275/EL-451765] и ниже ROD [M-015615/ML-351380/E-150275/EL-451765] & Below |
1 | discontinued |
