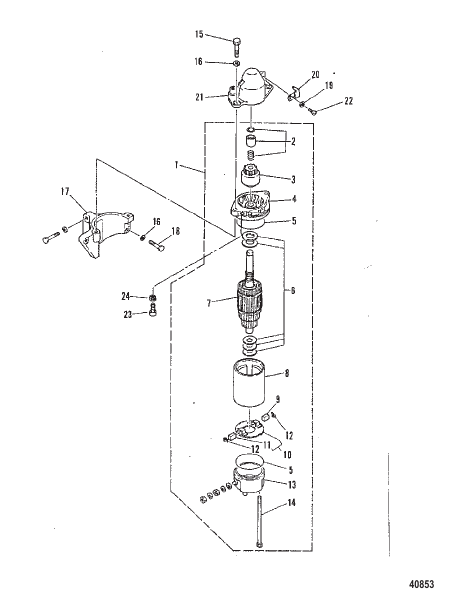

STARTER MOTOR
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814980M |
ПУСКОВОЙ МОТОР В СБОРЕ STARTING MOTOR ASSEMBLY |
1 | discontinued |
| 10 | 96367M |
ДЕРЖАТЕЛЬ Кисть HOLDER Brush |
1 | discontinued |
| 11 | 96369M |
ЩЕТКА BRUSH |
1 | discontinued |
| 12 | 84927M |
ВЕСНА SPRING |
2 | discontinued |
| 13 | 96370M |
КРЫШКА (ЗАДНЯЯ) COVER (REAR) |
1 | discontinued |
| 14 | 84929M |
БОЛТ BOLT |
2 | discontinued |
| 15 | 82442M |
БОЛТ BOLT |
2 | discontinued |
| 16 | 82217M |
ШАЙБА WASHER |
4 | discontinued |
| 17 | 814983M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 18 | 82441M |
БОЛТ BOLT |
2 | discontinued |
| 19 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 2 | 96360M |
КОМПЛЕКТ СТОППЕРА Шестерня STOPPER KIT Pinion |
1 | discontinued |
| 20 | 814984M |
ТАБЛИЧКА ГРМ TIMING PLATE |
1 | discontinued |
| 21 | 814985M |
КРЫШКА COVER |
1 | discontinued |
| 22 | 83523M |
ВИНТ SCREW |
1 | discontinued |
| 23 | 96371M |
БОЛТ BOLT |
1 | discontinued |
| 24 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 3 | 97694M |
ШЕСТЕРНЯ PINION |
1 | superseded |
| 4 | 814981M |
КРОНШТЕЙН (ПЕРЕДНИЙ) BRACKET (FRONT) |
1 | discontinued |
| 5 | 814982M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | discontinued |
| 6 | 96364M |
КОМПЛЕКТ ШАЙБ WASHER KIT |
1 | discontinued |
| 7 | 96365M |
АРМАТУРА ARMATURE |
1 | discontinued |
| 8 | 96366M |
СТАТОР STATOR |
1 | discontinued |
| 9 | 96368M |
ЩЕТКА BRUSH |
1 | discontinued |
