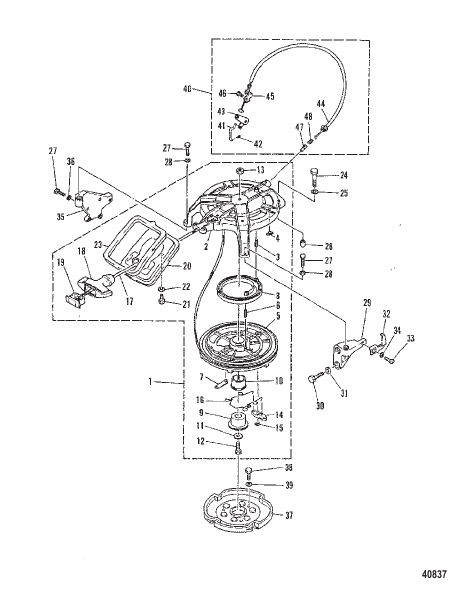

RECOIL STARTER
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814528M |
СТАРТЕР В СБОРЕ STARTER ASSEMBLY Recoil |
1 | discontinued |
| 10 | 83589M |
ВТУЛКА BUSHING |
1 | discontinued |
| 11 | 81801M |
ШАЙБА WASHER |
1 | discontinued |
| 12 | 84342M |
БОЛТ BOLT |
1 | discontinued |
| 13 | 82382M |
ГАЙКА NUT |
1 | discontinued |
| 14 | 84894M |
ПАВЛ PAWL |
1 | |
| 15 | 84895M |
КОЛЬЦО Snap RING Snap |
1 | discontinued |
| 16 | 83591M |
ВЕСНА SPRING |
1 | discontinued |
| 17 | 12066A9 |
ВЕРЕВКА ROPE |
1 | superseded |
| 18 | 814491M |
РУЧКА HANDLE |
1 | discontinued |
| 19 | 814492M |
КРЫШКА COVER |
1 | discontinued |
| 2 | 7102M |
КОРПУС [M-018005/ML-358040/E-151005/EL-453890] и ниже HOUSING [M-018005/ML-358040/E-151005/EL-453890] & Below |
1 | superseded |
| 2 | 811912M |
КОРПУС [M-018006/ML-358041/E-151006/EL-453891] И выше HOUSING [M-018006/ML-358041/E-151006/EL-453891] & Up |
1 | discontinued |
| 20 | 814531M |
РУКОВОДСТВО GUIDE |
1 | discontinued |
| 21 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 22 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 23 | 814532M |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 24 | 97749M |
БОЛТ BOLT |
1 | discontinued |
| 25 | 82215M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 26 | 14229M |
ПИН-код PIN |
1 | discontinued |
| 27 | 82405M |
БОЛТ BOLT |
5 | discontinued |
| 28 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 29 | 814533M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 3 | 82157M |
ПИН-код PIN |
1 | discontinued |
| 30 | 82441M |
БОЛТ BOLT |
2 | discontinued |
| 31 | 82217M |
ШАЙБА WASHER |
2 | discontinued |
| 32 | 814534M |
ARM ARM |
1 | discontinued |
| 33 | 83523M |
ВИНТ SCREW |
1 | discontinued |
| 34 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
| 35 | 814535M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 36 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 37 | 814536M |
ШКИВ PULLEY |
1 | discontinued |
| 38 | 82438M |
БОЛТ BOLT |
3 | discontinued |
| 39 | 82217M |
ШАЙБА WASHER |
3 | discontinued |
| 4 | 83585M |
ПРОБКА PLUG |
6 | discontinued |
| 40 | 93105M |
БЛОКИРОВКА БЛОКИРОВКИ Безопасность LOCKOUT ASSEMBLY Safety |
1 | discontinued |
| 41 | 83595M |
стержень ROD |
1 | discontinued |
| 42 | 82125M |
ШПИЛЬНИК COTTER PIN |
1 | discontinued |
| 43 | 83596M |
РЫЧАГ LEVER |
1 | discontinued |
| 44 | 83597M |
КАБЕЛЬ CABLE |
1 | discontinued |
| 45 | 93106M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 46 | 813477M |
БОЛТ BOLT |
1 | superseded |
| 47 | 81106M |
ПОРШЕНЬ PLUNGER |
1 | discontinued |
| 48 | 82079M |
ВЕСНА SPRING |
1 | discontinued |
| 5 | 83587M |
ШКИВ Стартера SHEAVE Starter |
1 | discontinued |
| 6 | 82157M |
ПИН-код PIN |
1 | discontinued |
| 7 | 84893M |
КЛИП CLIP |
1 | discontinued |
| 8 | 83588M |
ВЕСНА SPRING |
1 | |
| 9 | 83590M |
ВАЛ SHAFT |
1 | discontinued |
