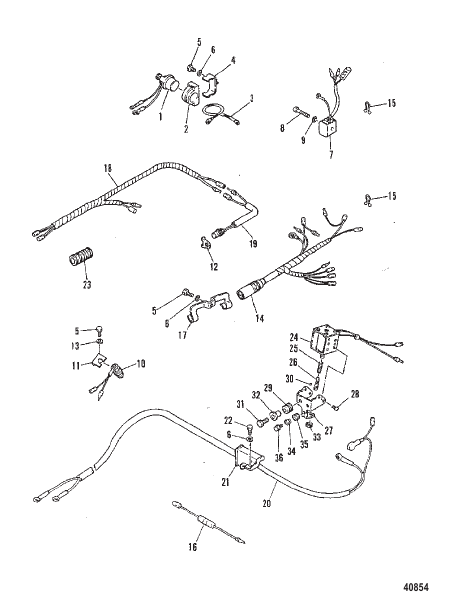

ELECTRICAL (STARTER RELAY ASSEMBLY)
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 95642M |
СОЛЕНОИД SOLENOID |
1 | superseded |
| 10 | 97684M |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Нейтральный старт SWITCH ASSEMBLY Neutral Start |
1 | discontinued |
| 11 | 97683M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 12 | 815004M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 13 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 14 | 814996M |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 15 | 814997M |
ЗАЖИМ CLAMP |
3 | discontinued |
| 16 | 814998M |
ПОДВОДЯЩИЙ ПРОВОД LEAD WIRE |
1 | discontinued |
| 17 | 814999M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 18 | 815001M |
РАСШИРЕНИЕ EXTENSION |
1 | discontinued |
| 19 | 815003M |
ТЕРМОПЕРЕКЛЮЧАТЕЛЬ THERMO SWITCH |
1 | discontinued |
| 2 | 814992M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 20 | 815000M |
ЖГУТ ПРОВОДОВ В СБОРЕ HARNESS ASSEMBLY |
1 | discontinued |
| 21 | 97066M |
ЗАЖИМ CLAMP |
1 | discontinued |
| 22 | 813477M |
БОЛТ BOLT |
1 | superseded |
| 23 | 815002M |
ИЗОЛЯТОР INSULATOR |
1 | discontinued |
| 24 | 97685M |
СОЛЕНОИД В СБОРЕ SOLENOID ASSEMBLY |
1 | superseded |
| 25 | 84701M |
ПРОВОД WIRE |
1 | discontinued |
| 26 | 84702M |
КРЮК HOOK |
1 | discontinued |
| 27 | 97686M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 28 | 17661M |
ВИНТ SCREW |
4 | discontinued |
| 29 | 93114M |
ДЕМПФЕР DAMPER |
2 | superseded |
| 3 | 814993M |
ПОДВОДЯЩИЙ ПРОВОД LEAD WIRE |
1 | discontinued |
| 30 | 82258M |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 31 | 82405M |
БОЛТ BOLT |
2 | discontinued |
| 32 | 82851M |
ВТУЛКА BUSHING |
2 | superseded |
| 33 | 82060M |
ВТУЛКА GROMMET |
1 | discontinued |
| 34 | 97688M |
Ошейник COLLAR |
1 | discontinued |
| 35 | 97687M |
ВТУЛКА GROMMET |
1 | discontinued |
| 36 | 91686M |
БОЛТ BOLT |
1 | discontinued |
| 4 | 814994M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 5 | 84247M |
БОЛТ BOLT |
3 | superseded |
| 6 | 82214M |
ШАЙБА WASHER |
3 | discontinued |
| 7 | 814995M |
ВЫПРЯМИТЕЛЬ RECTIFIER |
1 | discontinued |
| 8 | 82521M |
ВИНТ SCREW |
1 | superseded |
| 9 | 82211M |
ШАЙБА WASHER |
1 | discontinued |
