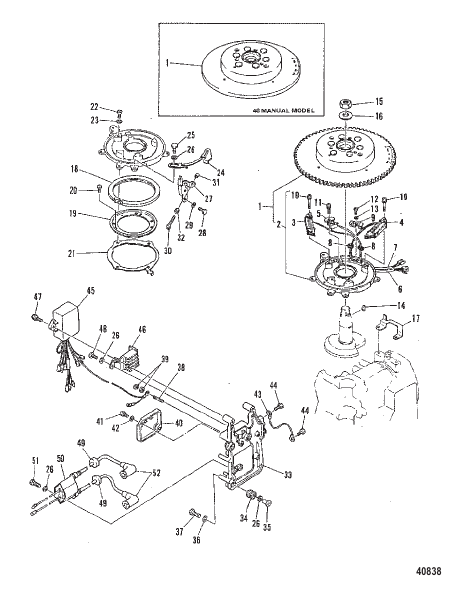

MAGNETO
Parts (56)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814537M |
МАХОВИК В СБОРЕ (РУЧНОЙ) FLYWHEEL ASSEMBLY (MANUAL) |
1 | superseded |
| 1 | 814538M |
МАХОВИК В СБОРЕ (ЭЛЕКТРИЧЕСКИЙ) FLYWHEEL ASSEMBLY (ELECTRIC) |
1 | discontinued |
| 10 | 97803M |
ВИНТ SCREW |
4 | discontinued |
| 11 | 811177M |
ВИНТ SCREW |
2 | discontinued |
| 12 | 82499M |
ВИНТ SCREW |
1 | discontinued |
| 13 | 82184M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | superseded |
| 14 | 81915M |
КЛЮЧ KEY |
1 | discontinued |
| 15 | 81773M |
ГАЙКА NUT |
1 | superseded |
| 16 | 84436M |
ШАЙБА WASHER |
1 | superseded |
| 17 | 814547M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 18 | 83566M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 19 | 19139M |
ФИКСАТОР RETAINER |
1 | discontinued |
| 2 | 814539M |
БАЗОВАЯ СБОРКА BASE ASSEMBLY |
1 | discontinued |
| 20 | 11832M |
ВИНТ SCREW |
4 | discontinued |
| 21 | 83569M |
ТАРЕЛКА PLATE |
1 | discontinued |
| 22 | 14232M |
ВИНТ SCREW |
4 | discontinued |
| 23 | 82208M |
ШАЙБА WASHER |
4 | superseded |
| 24 | 814570M |
СТОППЕР STOPPER |
1 | discontinued |
| 25 | 84315M |
БОЛТ BOLT |
2 | superseded |
| 26 | 82214M |
ШАЙБА WASHER |
9 | discontinued |
| 27 | 814571M |
СТОППЕР STOPPER |
1 | discontinued |
| 28 | 84247M |
БОЛТ BOLT |
2 | superseded |
| 29 | 82212M |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 3 | 814540M |
КАТУШКА В СБОРЕ Зарядка COIL ASSEMBLY Charge |
1 | discontinued |
| 30 | 83924M |
ВИНТ SCREW |
1 | discontinued |
| 31 | 81415M |
КАП CAP |
1 | discontinued |
| 32 | 82381M |
ГАЙКА NUT |
1 | superseded |
| 33 | 814986M |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 34 | 93114M |
ДЕМПФЕР DAMPER |
3 | superseded |
| 35 | 82851M |
ВТУЛКА BUSHING |
3 | superseded |
| 36 | 83769M |
ШАЙБА WASHER |
3 | discontinued |
| 37 | 83285M |
БОЛТ BOLT |
3 | discontinued |
| 38 | 84870M |
ШПИЛЬКА STUD |
1 | discontinued |
| 39 | 82389M |
ГАЙКА NUT |
2 | discontinued |
| 4 | 814541M |
КАТУШКА В СБОРЕ Освещение COIL ASSEMBLY Lighting |
1 | discontinued |
| 40 | 93115M |
КРЫШКА COVER |
1 | discontinued |
| 41 | 83356M |
ВИНТ SCREW |
2 | discontinued |
| 42 | 82211M |
ШАЙБА WASHER |
2 | discontinued |
| 43 | 81250M |
ПРОВОД WIRE |
1 | discontinued |
| 44 | 813477M |
БОЛТ BOLT |
2 | superseded |
| 45 | 814987M |
БЛОК CDI В СБОРЕ (РУЧНОЙ) CDI UNIT ASSEMBLY (MANUAL) |
1 | discontinued |
| 45 | 814988M |
БЛОК CDI В СБОРЕ (ЭЛЕКТРИЧЕСКИЙ) [M-015615/ML-351380/E-150275/EL-451765] и ниже CDI UNIT ASSEMBLY (ELECTRIC) [M-015615/ML-351380/E-150275/EL-451765] & Below |
1 | superseded |
| 45 | 822884M |
БЛОК CDI В СБОРЕ (ЭЛЕКТРИЧЕСКИЙ) [M-015616/ML-351381/E-150276/EL-451766] и выше CDI UNIT ASSEMBLY (ELECTRIC) [M-015616/ML-351381/E-150276/EL-451766] & Up |
1 | superseded |
| 46 | 93116M |
ДЕРЖАТЕЛЬ HOLDER |
1 | discontinued |
| 47 | 814989M |
БОЛТ BOLT |
2 | discontinued |
| 48 | 11832M |
ВИНТ SCREW |
2 | discontinued |
| 49 | 82069M |
ВТУЛКА GROMMET |
2 | discontinued |
| 5 | 814542M |
КАТУШКА В СБОРЕ Генератор COIL ASSEMBLY Pulser |
1 | discontinued |
| 50 | 814990M |
КАТУШКА зажигания COIL Ignition |
1 | superseded |
| 51 | 83285M |
БОЛТ BOLT |
2 | discontinued |
| 52 | 63709A1 |
КОМПЛЕКТ ПЫЛОЧНИКА/ТЕРМИНАЛА (РУКОВОДСТВО) BOOT/TERMINAL KIT (MANUAL) |
2 | |
| 52 | 814991M |
ЗАГЛУШКА (ЭЛЕКТРИЧЕСКАЯ) PLUG CAP (ELECTRIC) |
2 | superseded |
| 6 | 814543M |
СБОРКА ВЫВОДНЫХ ПРОВОДОВ LEAD WIRE ASSEMBLY |
1 | discontinued |
| 7 | 814544M |
СБОРКА ВЫВОДНЫХ ПРОВОДОВ LEAD WIRE ASSEMBLY |
1 | discontinued |
| 8 | 814545M |
ВТУЛКА GROMMET |
2 | discontinued |
| 9 | 814546M |
ЗАЖИМ CLAMP |
1 | discontinued |
