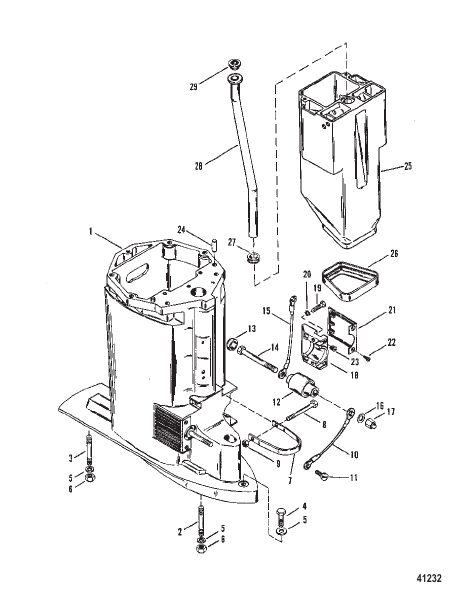

DRIVESHAFT HOUSING AND EXHAUST TUBE
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 88605A89 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 8437A2 |
КОРПУС В СБОРЕ Приводной вал (ДЛИННЫЙ) (ЧЕРНЫЙ) HOUSING ASSEMBLY Driveshaft (LONG) (BLACK) |
1 | discontinued |
| 1 | 9099A2 |
КОРПУС В СБОРЕ Приводной вал (X-ДЛИННЫЙ) (ЧЕРНЫЙ) HOUSING ASSEMBLY Driveshaft (X-LONG) (BLACK) |
1 | discontinued |
| 1 | 9673A3 |
КОРПУС В СБОРЕ Приводной вал (XX-LONG) (ЧЕРНЫЙ) HOUSING ASSEMBLY Driveshaft (XX-LONG) (BLACK) |
1 | discontinued |
| 1 | 8437A3 |
КОРПУС В СБОРЕ Приводной вал (ДЛИННЫЙ) (СЕРЫЙ) HOUSING ASSEMBLY Driveshaft (LONG) (GRAY) |
1 | discontinued |
| 1 | 9099A3 |
КОРПУС В СБОРЕ Приводной вал (X-ДЛИННЫЙ) (СЕРЫЙ) HOUSING ASSEMBLY Driveshaft (X-LONG) (GRAY) |
1 | discontinued |
| 1 | 9673A4 |
КОРПУС В СБОРЕ Приводной вал (XX-LONG) (СЕРЫЙ) HOUSING ASSEMBLY Driveshaft (XX-LONG) (GRAY) |
1 | discontinued |
| 10 | 88238A2 |
КАБЕЛЬНАЯ СБОРКА Заземление CABLE ASSEMBLY Ground |
1 | superseded |
| 11 | 41508 |
ВИНТ (.250-20 x .500) Нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 12 | 77327 |
МОНТАЖ MOUNT |
2 | |
| 13 | 25067 |
БАМПЕР BUMPER |
2 | discontinued |
| 14 | 96853 |
ВИНТ (.500-20 x 6.380) SCREW (.500-20 x 6.380) |
2 | discontinued |
| 15 | 88238A1 |
КАБЕЛЬНАЯ СБОРКА Заземление CABLE ASSEMBLY Ground |
1 | superseded |
| 16 | 49339 |
ШАЙБА (.8125) WASHER (.8125) |
2 | |
| 17 | 25096 |
ГАЙКА NUT |
2 | discontinued |
| 18 | 67076 |
ЗАЖИМ CLAMP |
2 | superseded |
| 19 | 82127335 |
ВИНТ (M8 x 35 ММ) SCREW (M8 x 35 MM) |
4 | |
| 2 | 57933 |
ШПИЛЬКА (.437-14/.437-20 x 2,190) STUD (.437-14/.437-20 x 2.190) |
4 | superseded |
| 20 | 400247 |
СТОПОРНАЯ ШАЙБА (M8) LOCKWASHER (M8) |
4 | |
| 21 | 67077T |
КРЫШКА Черный COVER Black |
2 | superseded |
| 21 | 67077T6 |
КРЫШКА (СЕРАЯ) COVER (GRAY) |
2 | superseded |
| 22 | 88417 |
ВИНТ (#12-24 x .620) SCREW (#12-24 x .620) |
4 | |
| 23 | 35521 |
ГАЙКА NUT |
4 | |
| 24 | 20433 |
ПИН-дюбель (0,375 x 1,00) PIN Dowel (.375 x 1.00) |
2 | discontinued |
| 25 | 888874 |
ТРУБКА Выхлопная TUBE Exhaust |
1 | discontinued |
| 26 | 88883 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 27 | 89417 |
ВТУЛКА GROMMET |
1 | discontinued |
| 28 | 88884 |
ТРУБКА (ДЛИННАЯ) TUBE (LONG) |
1 | discontinued |
| 28 | 89098 |
ТРУБКА (X-ДЛИННАЯ) TUBE (X-LONG) |
1 | discontinued |
| 28 | 96128 |
ТРУБКА ДЛЯ ВОДЫ (XX-ДЛИННАЯ) TUBE Water (XX-LONG) |
1 | discontinued |
| 29 | 89419 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 3 | 57984 |
ШПИЛЬКА (.437-14/.437-20 x 2,380) STUD (.437-14/.437-20 x 2.380) |
1 | |
| 4 | 54493 |
ВИНТ (.437-14 x 2,500) SCREW (.437-14 x 2.500) |
1 | discontinued |
| 5 | 45176 |
ШАЙБА (.453 x .812 x .105) Нержавеющая сталь WASHER (.453 x .812 x .105) Stainless Steel |
6 | |
| 6 | 34933 |
ГАЙКА (.437-20) Нержавеющая сталь NUT (.437-20) Stainless Steel |
5 | superseded |
| 7 | 88758T |
РЕМЕНЬ (ЧЕРНЫЙ) STRAP (BLACK) |
1 | discontinued |
| 7 | 88758T6 |
РЕМЕНЬ (СЕРЫЙ) STRAP (GRAY) |
1 | discontinued |
| 8 | 67769 |
ВИНТ (.375-24 x 4,00) SCREW (.375-24 x 4.00) |
1 | discontinued |
| 9 | 25269 |
ГАЙКА (.375-24) NUT (.375-24) |
1 | discontinued |
