| # | Part Number | Description | Qty | Status |
|---|
| - |
88605A89 |
GASKET SET
|
1 |
disc.
|
| - |
92040A89 |
POWERHEAD ASSEMBLY (250)
|
1 |
disc.
|
| - |
19398A93 |
POWERHEAD ASSEMBLY (275)
|
1 |
disc.
|
| 1 |
437692 |

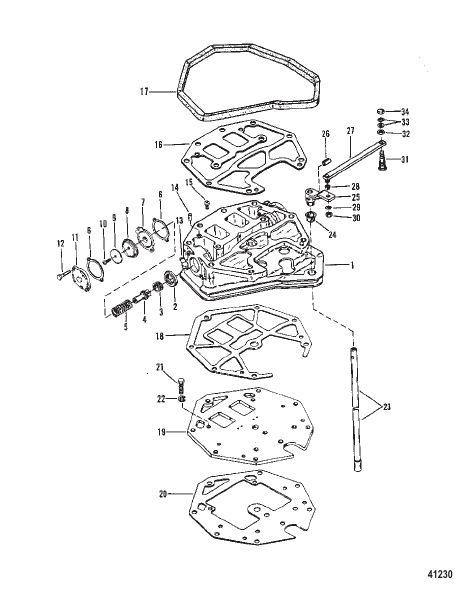

PLATE Exhaust (250)
|
1 |
disc.
|
| 1 |
43769A3 |
PLATE ASSEMBLY Exhaust (275)
|
1 |
disc.
|
| 10 |
69570 |
SCREW (#10-16 x .750)
|
2 |
|
| 11 |
65663A2 |
COVER ASSEMBLY
|
2 |
superseded
|
| 12 |
4000354 |
SCREW (M8 x 30)
|
4 |
|
| 13 |
68727 |
FITTING (.250-18) 90 Degree - Brass
|
2 |
superseded
|
| 14 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 15 |
81516265 |
BOLT (M10 x 65)
|
1 |
disc.
|
| 16 |
438771 |
GASKET (UPPER)
|
1 |
disc.
|
| 17 |
88355 |
SEAL
|
1 |
disc.
|
| 18 |
438782 |
GASKET (LOWER)
|
1 |
disc.
|
| 19 |
88880A1 |
PLATE
|
1 |
disc.
|
| 2 |
64872 |
GROMMET
|
2 |
|
| 20 |
890842 |
GASKET
|
1 |
disc.
|
| 21 |
4000354 |
SCREW (M8 x 30)
|
3 |
|
| 22 |
400247 |
LOCKWASHER (M8)
|
3 |
|
| 23 |
968431 |
SHIFT SHAFT (LONG)
|
1 |
disc.
|
| 23 |
968432 |
SHIFT SHAFT (X-LONG)
|
1 |
disc.
|
| 23 |
968433 |
SHIFT SHAFT Upper (XX-LONG)
|
1 |
disc.
|
| 24 |
65830 |
NYLINER
|
1 |
|
| 25 |
968413 |
LEVER
|
1 |
disc.
|
| 26 |
96888 |
PIN Roll
|
1 |
disc.
|
| 27 |
96848 |
SHIFT LINK
|
1 |
disc.
|
| 28 |
26856 |
BUSHING
|
2 |
|
| 29 |
29720 |
WAVE WASHER
|
1 |
|
| 3 |
65848 |
CARRIER
|
2 |
|
| 30 |
35045 |
NUT (.250-28)
|
1 |
superseded
|
| 31 |
96849 |
SCREW
|
1 |
disc.
|
| 32 |
28770 |
NUT (.312-24) Stainless Steel
|
1 |
|
| 33 |
29720 |
WAVE WASHER
|
2 |
|
| 34 |
35045 |
NUT (.250-28)
|
1 |
superseded
|
| 4 |
86596 |
POPPET VALVE
|
2 |
|
| 5 |
90392 |
SPRING
|
2 |
|
| 6 |
88907 |
GASKET
|
4 |
superseded
|
| 7 |
65664A1 |
PLATE ASSEMBLY
|
2 |
|
| 8 |
64877 |
DIAPHRAGM
|
2 |
superseded
|
| 9 |
76451 |
WASHER
|
2 |
|
