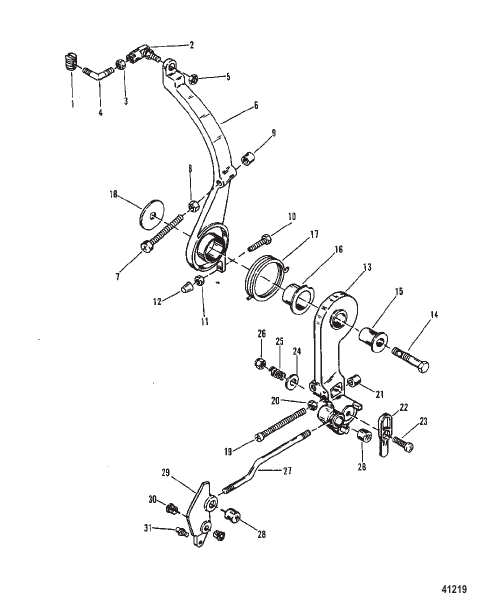

THROTTLE LEVER
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 74897 |
ПОВОРОТ PIVOT |
1 | superseded |
| 10 | 12405 |
ВИНТ (1-1/4 дюйма) SCREW (1-1/4") |
1 | discontinued |
| 11 | 68219 |
ГАЙКА (#10-32) Нержавеющая сталь NUT (#10-32) Stainless Steel |
1 | |
| 12 | 48039 |
КАП CAP |
1 | |
| 13 | 94818 |
РЫЧАГ LEVER |
1 | discontinued |
| 14 | 818165 |
ВИНТ (.375-16 x 1,75) SCREW (.375-16 x 1.75) |
1 | |
| 15 | 55164 |
ВТУЛКА BUSHING |
1 | |
| 16 | 55171 |
ВТУЛКА BUSHING |
1 | discontinued |
| 17 | 55162 |
ВЕСНА SPRING |
1 | |
| 18 | 68410 |
ШАЙБА WASHER |
1 | discontinued |
| 19 | 75168 |
ВИНТ SCREW |
2 | discontinued |
| 2 | 62459 |
ШАРОВОЙ СОЕДИНЕНИЕ В СБОРЕ BALL JOINT ASSEMBLY |
1 | superseded |
| 20 | 29598 |
ГАЙКА (.250-28) Нержавеющая сталь NUT (.250-28) Stainless Steel |
2 | |
| 21 | 52023 |
КАП CAP |
2 | discontinued |
| 22 | 39483 |
ЗАЩЕЛКА LATCH |
1 | |
| 23 | 69026 |
ВИНТ (.250-28 x .880) SCREW (.250-28 x .880) |
1 | |
| 24 | 69057 |
ШАЙБА (.281 x .734 x .063) WASHER (.281 x .734 x .063) |
1 | |
| 25 | 20099 |
ВЕСНА SPRING |
1 | |
| 26 | 35045 |
ГАЙКА (.250-28) NUT (.250-28) |
1 | superseded |
| 27 | 93259 |
стержень ROD |
1 | discontinued |
| 28 | 60572 |
БОЧКА BARREL |
2 | superseded |
| 29 | 8130011 |
САМ Дроссель CAM Throttle |
1 | discontinued |
| 3 | 45076 |
ГАЙКА (#10-32) Латунь NUT (#10-32) Brass |
1 | |
| 30 | 26856 |
ВТУЛКА BUSHING |
2 | |
| 31 | 41122 |
ШАРИКОВАЯ ВИНТ (.250-20 x .440) BALL SCREW (.250-20 x .440) |
1 | discontinued |
| 4 | 76035 |
стержень ROD |
1 | discontinued |
| 5 | 46438 |
ГАЙКА (#10-32) NUT (#10-32) |
1 | |
| 6 | 89811 |
РЫЧАГ LEVER |
1 | discontinued |
| 7 | 75168 |
ВИНТ SCREW |
1 | discontinued |
| 8 | 29598 |
ГАЙКА (.250-28) Нержавеющая сталь NUT (.250-28) Stainless Steel |
1 | |
| 9 | 52023 |
КАП CAP |
1 | discontinued |
