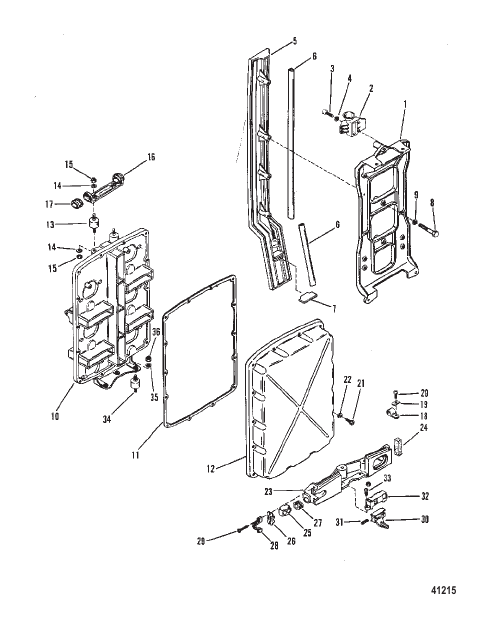

SOUND ATTENUATOR AND COWL BRACKET
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 883644 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 10 | 13944A1 |
ПЛАСТИНА/КРЫШКА В СБОРЕ Звукоглушитель PLATE/COVER ASSEMBLY Sound Attenuator |
1 | discontinued |
| 11 | 898192 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 12 | 139441 |
КРЫШКА COVER |
1 | discontinued |
| 13 | 90435 |
МОНТАЖ MOUNT |
2 | |
| 14 | 29245 |
ШАЙБА (.281 x .500 x .060) Нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4 | superseded |
| 15 | 35888 |
ГАЙКА (.250-28) Нержавеющая сталь NUT (.250-28) Stainless Steel |
4 | |
| 16 | 67245T |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 17 | 67272 |
ВТУЛКА GROMMET |
2 | discontinued |
| 18 | 26550 |
ЗАЖИМ CLAMP |
1 | |
| 19 | 69205 |
С ШАЙБА C WASHER |
1 | superseded |
| 2 | 85651 |
ЖИЛЬЕ (ПОРТ) HOUSING (PORT) |
2 | discontinued |
| 2 | 85650 |
КОРПУС (ПРАВЫЙ БОРТ) HOUSING (STARBOARD) |
2 | discontinued |
| 20 | 78291 |
ВИНТ (.190-24 x .500) SCREW (.190-24 x .500) |
1 | |
| 21 | 40062127 |
ВИНТ SCREW |
14 | discontinued |
| 22 | 4002316 |
ШАЙБА (6,60 X 17,0 X 1,5 SS) WASHER (6.60 X 17.0 X 1.5SS) |
14 | superseded |
| 23 | 41124T1 |
КРОНШТЕЙН (ЧЕРНЫЙ) BRACKET (BLACK) |
1 | discontinued |
| 23 | 41124T6 |
КРОНШТЕЙН (СЕРЫЙ) BRACKET (GRAY) |
1 | discontinued |
| 24 | 88357 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 25 | 99391 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 26 | 88622 |
ТАРЕЛКА PLATE |
1 | discontinued |
| 27 | 67272 |
ВТУЛКА GROMMET |
2 | discontinued |
| 28 | 88621 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 29 | 34994 |
ВИНТ (#10-32 x 1,00) Нержавеющая сталь SCREW (#10-32 x 1.00) Stainless Steel |
2 | discontinued |
| 3 | 34941 |
ВИНТ (.250-20 x .880) SCREW (.250-20 x .880) |
8 | discontinued |
| 30 | 76264 |
ЗАЩЕЛКА LATCH |
1 | discontinued |
| 31 | 85367 |
ВЕСНА SPRING |
1 | discontinued |
| 32 | 67241 |
ЖИЛЬЕ HOUSING |
1 | |
| 33 | 92051 |
ВИНТ (10-16 x 0,75) SCREW (10-16 x .75) |
2 | |
| 34 | 90435 |
МОНТАЖ MOUNT |
3 | |
| 35 | 29245 |
ШАЙБА (.281 x .500 x .060) Нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
6 | superseded |
| 36 | 35888 |
ГАЙКА (.250-28) Нержавеющая сталь NUT (.250-28) Stainless Steel |
6 | |
| 4 | 29245 |
ШАЙБА (.281 x .500 x .060) Нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
8 | superseded |
| 5 | 88361T |
КРОНШТЕЙН (ЧЕРНЫЙ) BRACKET (BLACK) |
1 | discontinued |
| 5 | 88361T6 |
КРОНШТЕЙН (СЕРЫЙ) BRACKET (GRAY) |
1 | discontinued |
| 6 | 14900A1 |
УПЛОТНЕНИЕ SEAL |
2 | discontinued |
| 7 | 88356 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 8 | 4000335 |
ВИНТ (M6 x 50) SCREW (M6 x 50) |
4 | |
| 9 | 29245 |
ШАЙБА (.281 x .500 x .060) Нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
4 | superseded |
