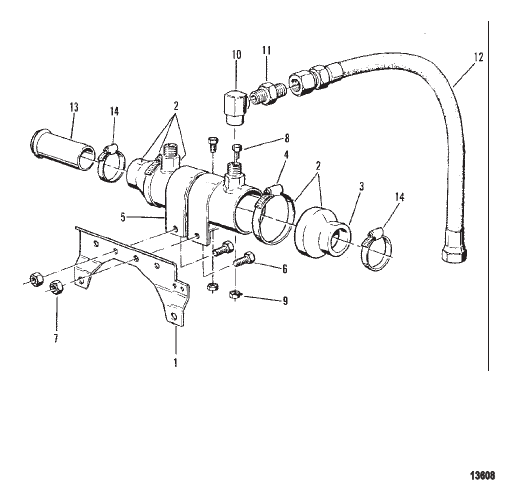

Oil Cooler (Mechanical Transmission)
Parts (14)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 801326972 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 10 | 801761919 |
ГНЕЗДО SOCKET |
2 | discontinued |
| 11 | 801330753 |
СОЕДИНИТЕЛЬ CONNECTOR |
2 | discontinued |
| 12 | 801330744 |
ТРУБА Масло PIPE Oil |
2 | discontinued |
| 13 | 801761587 |
ТРУБА Забортная вода PIPE Seawater |
1 | discontinued |
| 14 | 801326639 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 2 | 801761376 |
ОХЛАДИТЕЛЬ Масло COOLER Oil |
1 | discontinued |
| 3 | 801761375 |
КРЫШКА COVER |
2 | discontinued |
| 4 | 801328048 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 5 | 801763507 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 6 | 809913624 |
ВИНТ SCREW |
2 | discontinued |
| 7 | 809922087 |
ГАЙКА NUT |
2 | superseded |
| 8 | 809913442 |
ВИНТ SCREW |
2 | discontinued |
| 9 | 809922800 |
ГАЙКА NUT |
2 | superseded |
