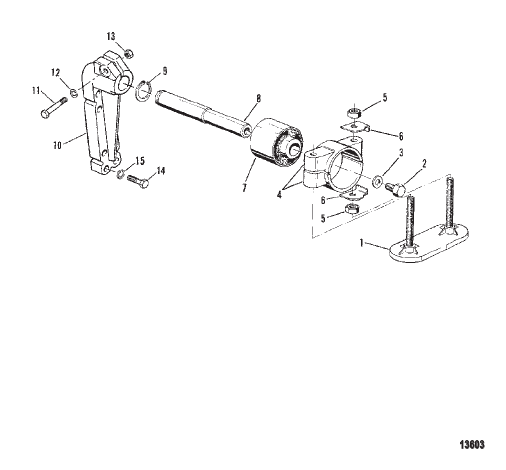

Transmission Mounting (Hydraulic Transmission)
Parts (15)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 801765040 |
БАЗА BASE |
2 | discontinued |
| 10 | 809934175 |
КОЛЬЦО RING |
2 | discontinued |
| 11 | 809913859 |
ВИНТ SCREW |
2 | discontinued |
| 12 | 809931076 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | superseded |
| 13 | 809922113 |
ГАЙКА NUT |
2 | discontinued |
| 14 | 4007745 |
ВИНТ SCREW |
8 | discontinued |
| 15 | 809933127 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
8 | discontinued |
| 2 | 809913815 |
ВИНТ SCREW |
2 | discontinued |
| 3 | 809936436 |
ШАЙБА WASHER |
2 | discontinued |
| 4 | 801765035 |
КОРПУС HOUSING |
2 | discontinued |
| 5 | 809923100 |
ГАЙКА NUT |
8 | discontinued |
| 6 | 801765045 |
ШАЙБА WASHER |
8 | discontinued |
| 7 | 801765045 |
ШАЙБА WASHER |
2 | discontinued |
| 8 | 801763900 |
ШТИФТ PIN |
2 | superseded |
| 9 | 801763900 |
ШТИФТ PIN |
2 | superseded |
