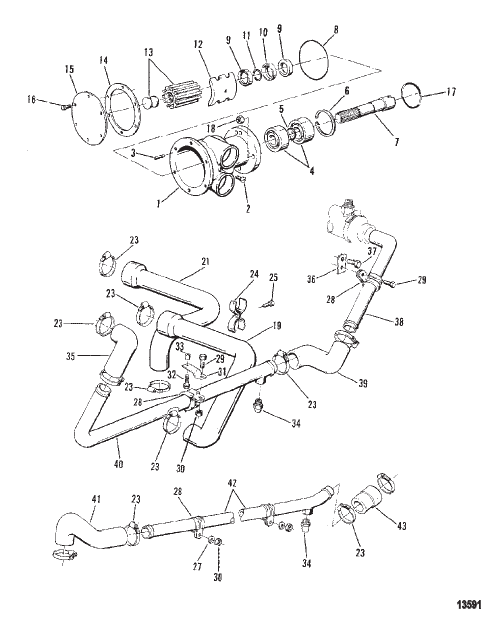

Seawater Pump (Mechanical Transmission)
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 02 | 801332604 |
ВИНТ SCREW |
1 | discontinued |
| 1 | 814874 |
НАСОС В СБОРЕ Забортная вода PUMP ASSEMBLY Seawater |
1 | discontinued |
| 10 | 801332599 |
РАСТЯЖКА SPREADER |
1 | discontinued |
| 11 | 801332598 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 12 | 814873 |
КУЛАЧОК CAM |
1 | discontinued |
| 13 | 801332602 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 14 | 801332606 |
ПРОКЛАДКА GASKET |
1 | |
| 15 | 801332607 |
КРЫШКА COVER |
1 | superseded |
| 16 | 801332608 |
ВИНТ SCREW |
6 | |
| 17 | 801333850 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 18 | 809922800 |
ГАЙКА NUT |
4 | superseded |
| 19 | 805375 |
РУКАВ HOSE |
1 | |
| 21 | 805376 |
РУКАВ Забортная вода HOSE Seawater |
1 | discontinued |
| 23 | 801326639 |
ЗАЖИМ CLAMP |
10 | discontinued |
| 24 | 801761122 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 25 | 809915039 |
ВИНТ SCREW |
1 | discontinued |
| 27 | 809931067 |
ШАЙБА WASHER |
2 | superseded |
| 28 | 801331113 |
ЗАЖИМ CLAMP |
2 | discontinued |
| 29 | 809913624 |
ВИНТ SCREW |
2 | discontinued |
| 3 | 801332620 |
ШТИФТ PIN |
1 | discontinued |
| 30 | 400213 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
2 | |
| 31 | 801761589 |
КРОНШТЕЙН BRACKET |
2 | discontinued |
| 32 | 809913483 |
ВИНТ SCREW |
2 | discontinued |
| 33 | 801763599 |
ПРОСТАВКА SPACER |
2 | discontinued |
| 34 | 801763335 |
КРАН СЛИВА DRAIN COCK |
1 | discontinued |
| 35 | 801763997 |
РУКАВ HOSE |
1 | discontinued |
| 36 | 801761588 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 37 | 809913815 |
ВИНТ SCREW |
1 | discontinued |
| 38 | 801761585 |
ТРУБА Забортная вода PIPE Seawater |
1 | discontinued |
| 39 | 801761584 |
РУКАВ HOSE |
1 | discontinued |
| 4 | 801332597 |
ПОДШИПНИК Шарик BEARING Ball |
2 | superseded |
| 40 | 801763719 |
ТРУБА Забортная вода PIPE Seawater |
1 | discontinued |
| 40 | 801761586 |
ТРУБА Забортная вода PIPE Seawater |
1 | discontinued |
| 41 | 801763230 |
РУКАВ HOSE |
1 | discontinued |
| 42 | 801763722 |
ТРУБА Забортная вода PIPE Seawater |
1 | discontinued |
| 42 | 801763229 |
ТРУБА Забортная вода PIPE Seawater |
1 | discontinued |
| 43 | 801763231 |
ШТУЦЕР NOZZLE |
1 | superseded |
| 5 | 801332596 |
ПРОСТАВКА SPACER |
1 | superseded |
| 6 | 801332595 |
КОЛЬЦО Защелка Стопор RING Snap Retaining |
1 | |
| 7 | 801332593 |
ВАЛ SHAFT |
1 | discontinued |
| 8 | 801332601 |
ИЗНОСОСТОЙКАЯ ПЛАСТИНА WEAR PLATE |
1 | |
| 9 | 801332600 |
УПЛОТНЕНИЕ SEAL |
2 |
