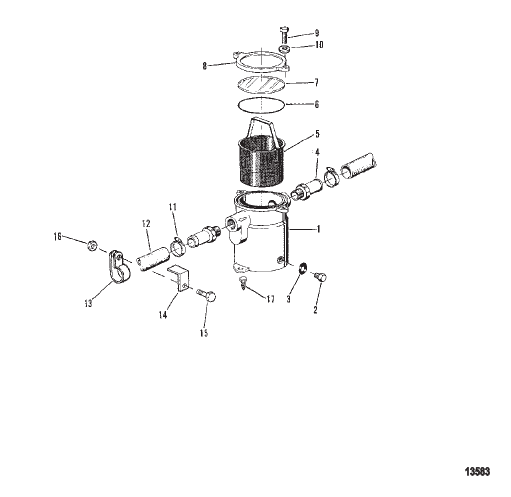

Seawater Filter
Parts (17)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 801763739 |
ФИЛЬТР Забортная вода FILTER Seawater |
1 | superseded |
| 10 | 809933096 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | superseded |
| 11 | 801326523 |
ЗАЖИМ CLAMP |
4 | discontinued |
| 12 | 801331258 |
РУКАВ HOSE |
2 | discontinued |
| 13 | 47715 |
ЗАЖИМ CLIP |
1 | discontinued |
| 14 | 801331164 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 15 | 809913624 |
ВИНТ SCREW |
1 | discontinued |
| 16 | 809922087 |
ГАЙКА NUT |
1 | superseded |
| 17 | 85181 |
БОЛТ BOLT |
2 | discontinued |
| 2 | 801763853 |
ПРОБКА PLUG |
1 | |
| 3 | 801765058 |
КОЛЬЦО RING |
1 | superseded |
| 4 | 801763860 |
ФИТИНГ Ниппель NOZZLE |
2 | discontinued |
| 5 | 801763855 |
ЭЛЕМЕНТ ELEMENT |
1 | |
| 6 | 801763856 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 7 | 801763857 |
ОТВЕРСТИЕ WINDOW |
1 | discontinued |
| 8 | 801763858 |
КРЫШКА COVER |
1 | discontinued |
| 9 | 801763859 |
ВИНТ SCREW |
2 |
