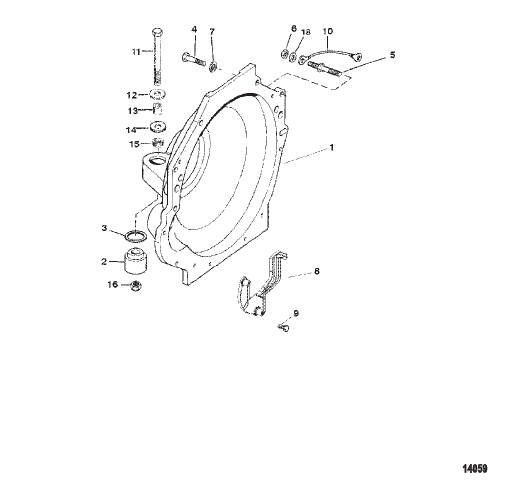

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
865657A03 |
HOUSING ASSEMBLY Flywheel
|
1 |
|
| 10 |
62826A6 |
CABLE ASSEMBLY Ground (13.00 Inches) Black
|
1 |
superseded
|
| 11 |
97934 |
SCREW (.500-20 x 5.370) Special
|
2 |
superseded
|
| 12 |
35777 |
WASHER (.5156 x 1.375 x .125) Aluminum
|
2 |
|
| 13 |
99299 |
SPACER (.520 x .870 x .630)
|
2 |
|
| 14 |
32834 |
WASHER (.9375 x 1.750 x .172)
|
2 |
|
| 15 |
33734 |
LOCKWASHER (.500)
|
2 |
|
| 16 |
863332 |
NUT (.500-20) Aluminum
|
2 |
|
| 17 |
40125100 |
NUT (M10)
|
2 |
|
| 18 |
400248 |
LOCKWASHER (M10)
|
2 |
|
| 2 |
865329A02 |
MOUNT KIT Rubber
|
1 |
disc.
|
| 3 |
99322 |
SPACER
|
2 |
|
| 4 |
37612 |
SCREW (.375-16 x 1.250)
|
3 |
|
| 4 |
32132 |
SCREW (.375-16 x 1.750)
|
1 |
|
| 4 |
40001197 |
SCREW (M10 x 35)
|
3 |
|
| 4 |
40001203 |
SCREW (M10 x 45)
|
1 |
superseded
|
| 5 |
64066 |
STUD (.375-16 x 2.750) Special
|
2 |
superseded
|
| 5 |
861577 |
STUD Double Ended Metric (M10)
|
2 |
|
| 6 |
32219 |
NUT (.375-16)
|
2 |
|
| 6 |
40125100 |
NUT (M10)
|
2 |
|
| 7 |
35048 |
LOCKWASHER (.375)
|
4 |
|
| 8 |
807456A2 |
COVER
|
1 |
|
| 9 |
76596 |
SCREW (.250-20 x 1.250)
|
2 |
|
