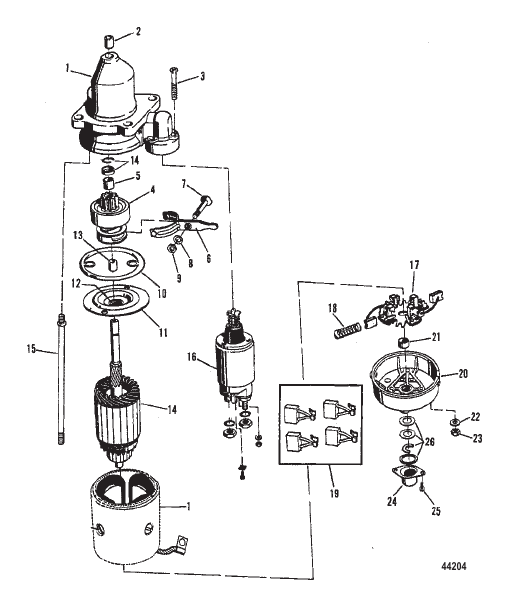

STARTER MOTOR (INBOARD)
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 805991 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 10 | 808227 |
КОЛЬЦО Уплотнение RING Sealing |
1 | discontinued |
| 11 | 808216 |
ПОДШИПНИК BEARING |
1 | discontinued |
| 12 | 808218 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | discontinued |
| 13 | 808217 |
ВТУЛКА BUSHING |
1 | discontinued |
| 14 | 808215 |
ЯКОРЬ ARMATURE |
1 | discontinued |
| 15 | 808224 |
СКВОЗНОЙ БОЛТ THRU BOLT |
2 | discontinued |
| 16 | 808262 |
ЭЛЕКТРОМАГНИТНЫЙ ПЕРЕКЛЮЧАТЕЛЬ SOLENOID SWITCH |
1 | discontinued |
| 17 | 808229 |
ДЕРЖАТЕЛЬ Щетка HOLDER Brush |
1 | discontinued |
| 18 | 808238 |
ПРУЖИНА Щетка SPRING Brush |
4 | discontinued |
| 19 | 808266 |
НАБОР ЩЕТОК BRUSH SET |
1 | discontinued |
| 2 | 808221 |
ВТУЛКА BUSHING |
1 | discontinued |
| 20 | 808249 |
КОЛПАЧОК END CAP |
1 | discontinued |
| 21 | 808251 |
ВТУЛКА BUSHING |
1 | discontinued |
| 22 | 808255 |
ШАЙБА WASHER |
2 | discontinued |
| 23 | 808257 |
ГАЙКА NUT |
2 | discontinued |
| 24 | 808259 |
ПРОБКА CAP |
1 | discontinued |
| 25 | 808265 |
ВИНТ SCREW |
2 | discontinued |
| 26 | 808268 |
КОМПЛЕКТ ДЕТАЛЕЙ PARTS KIT |
1 | discontinued |
| 3 | 808225 |
ВИНТ SCREW |
3 | discontinued |
| 4 | 808219 |
ПРИВОД DRIVE |
1 | superseded |
| 5 | 808220 |
ВТУЛКА BUSHING |
2 | discontinued |
| 6 | 808280 |
Вильчатый рычаг FORK LEVER |
1 | discontinued |
| 7 | 808264 |
ВИНТ SCREW |
1 | discontinued |
| 8 | 808222 |
ШАЙБА WASHER |
1 | discontinued |
| 9 | 808223 |
ГАЙКА NUT |
1 | discontinued |
