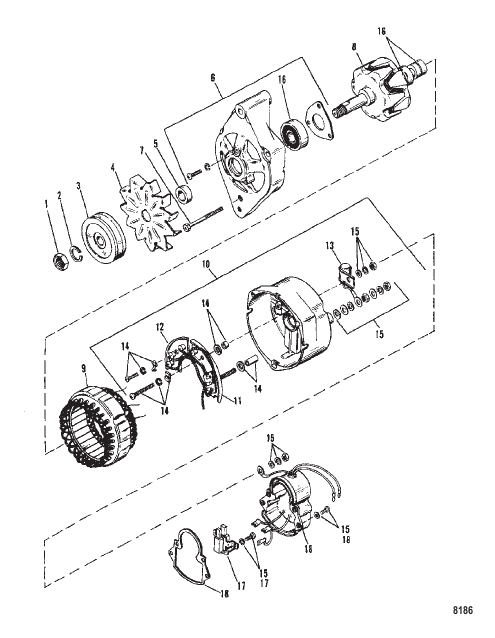

Alternator (MANDO) #AR - 150
Parts (19)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 92497A3 |
ГЕНЕРАТОР В СБОРЕ (55 ампер) ALTERNATOR ASSEMBLY (55 Ampere) |
1 | superseded |
| 1 | 42768 |
ГАЙКА NUT |
1 | superseded |
| 10 | 42777 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 11 | 42778 |
ТЕПЛОПОГЛОЩАЮЩИЙ HEAT SINK |
1 | discontinued |
| 12 | 42779 |
ТЕПЛОПОГЛОЩАЮЩИЙ HEAT SINK |
1 | discontinued |
| 13 | 42780 |
КОНДЕНСАТОР В СБОРЕ CONDENSER ASSEMBLY |
1 | discontinued |
| 14 | 42783 |
КОМПЛЕКТ ОБОРУДОВАНИЯ (Internal) HARDWARE KIT (Internal) |
1 | discontinued |
| 15 | 42782 |
КОМПЛЕКТ ОБОРУДОВАНИЯ (External) HARDWARE KIT (External) |
1 | discontinued |
| 16 | 42781 |
КОМПЛЕКТ ПОДШИПНИКОВ BEARING KIT |
1 | discontinued |
| 17 | 42784 |
КОМПЛЕКТ ДЕРЖАТЕЛЯ (Includes springs & brushes) HOLDER KIT (Includes springs & brushes) |
1 | discontinued |
| 18 | 42785 |
КОМПЛЕКТ РЕГУЛЯТОРА REGULATOR KIT |
1 | |
| 2 | 42769 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 3 | 42770 |
ШКИВ PULLEY |
1 | superseded |
| 4 | 42771 |
ВЕНТИЛЯТОР FAN |
1 | discontinued |
| 5 | 42772 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 6 | 42774 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 7 | 42773 |
СКВОЗНОЙ БОЛТ THRU BOLT |
3 | discontinued |
| 8 | 42775 |
РОТОР (Includes Bearings) ROTOR (Includes Bearings) |
1 | discontinued |
| 9 | 42776 |
СТАТОР STATOR |
1 | discontinued |
