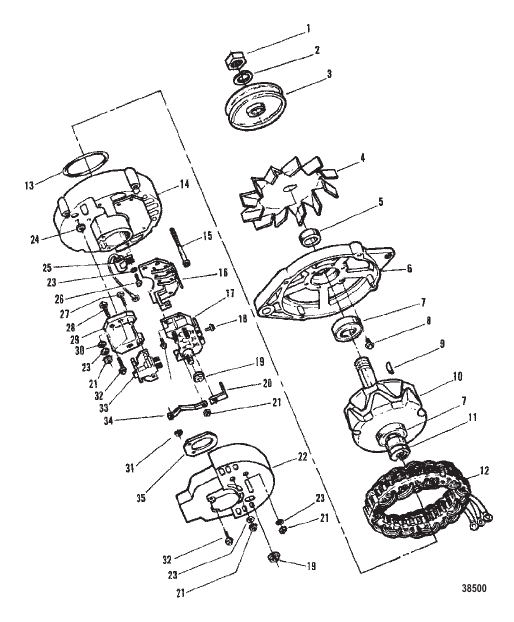

Alternator (PRESTOLITE #8EM2003K4)
Parts (36)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 92497A3 |
ГЕНЕРАТОР В СБОРЕ (55 ампер) ALTERNATOR ASSEMBLY (55 Ampere) |
1 | superseded |
| 1 | 7027 |
ГАЙКА NUT |
1 | discontinued |
| 10 | 813962 |
РОТОР ROTOR |
1 | discontinued |
| 11 | 7014 |
ТОКОСОБИРАТЕЛЬНОЕ КОЛЬЦО SLIP RING |
1 | discontinued |
| 12 | 813963 |
СТАТОР STATOR |
1 | discontinued |
| 13 | 7007 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 14 | 813964 |
КОРПУС Задний HOUSING Rear |
1 | discontinued |
| 15 | 813975 |
СКВОЗНОЙ БОЛТ THRU BOLT |
4 | discontinued |
| 16 | 813966 |
ДИОДНЫЙ МОСТ DIODE BRIDGE |
1 | discontinued |
| 17 | 813965 |
ДИОДНОЕ ПОЛЕ DIODE FIELD |
1 | discontinued |
| 18 | 813981 |
ВИНТ SCREW |
3 | discontinued |
| 19 | 813976 |
ГАЙКА NUT |
2 | discontinued |
| 2 | 7033 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 20 | 813973 |
СКОБА STRAP |
1 | discontinued |
| 21 | 7021 |
ГАЙКА NUT |
5 | discontinued |
| 22 | 813971 |
КРЫШКА COVER |
1 | discontinued |
| 23 | 813984 |
ШАЙБА WASHER |
5 | discontinued |
| 24 | 7022 |
ШАЙБА WASHER |
2 | discontinued |
| 25 | 813972 |
КОНДЕНСАТОР CAPACITOR |
1 | discontinued |
| 26 | 813982 |
ВИНТ SCREW |
1 | discontinued |
| 27 | 813979 |
ВИНТ SCREW |
2 | discontinued |
| 28 | 813983 |
ВИНТ SCREW |
2 | discontinued |
| 29 | 813974 |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
1 | discontinued |
| 3 | 8637 |
ШКИВ PULLEY |
1 | discontinued |
| 30 | 813985 |
ШАЙБА WASHER |
2 | discontinued |
| 31 | 813977 |
ГАЙКА NUT |
2 | discontinued |
| 32 | 813980 |
ВИНТ SCREW |
8 | discontinued |
| 33 | 813968 |
ЩЕТКА В СБОРЕ BRUSH ASSEMBLY |
1 | discontinued |
| 34 | 813967 |
СКОБА (D+) STRAP (D+) |
1 | discontinued |
| 35 | 813970 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 4 | 7004 |
ВЕНТИЛЯТОР FAN |
1 | discontinued |
| 5 | 813969 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 6 | 813961 |
КОРПУС Передний HOUSING Front |
1 | discontinued |
| 7 | 7005 |
ПОДШИПНИК Шарик BEARING Ball |
2 | discontinued |
| 8 | 813978A1 |
ВИНТ SCREW |
4 | discontinued |
| 9 | 7034 |
КЛЮЧ KEY |
1 | discontinued |
