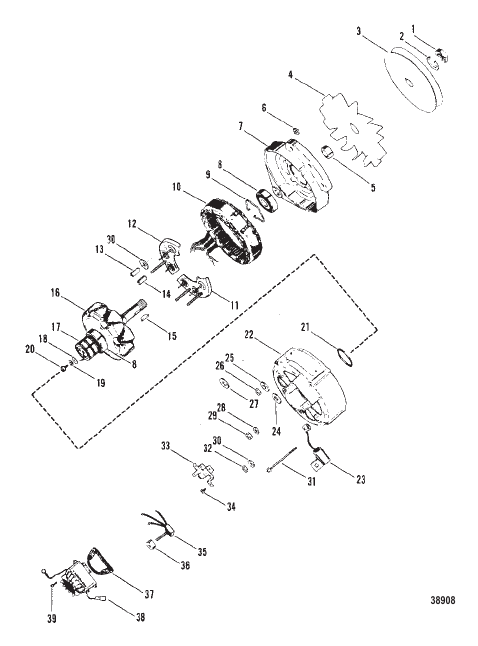

Alternator (MOTOROLA #8MR2039K)
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 92497A3 |
ГЕНЕРАТОР В СБОРЕ (55 ампер) ALTERNATOR ASSEMBLY (55 Ampere) |
1 | superseded |
| 1 | 7027 |
ГАЙКА NUT |
1 | discontinued |
| 10 | 8636 |
СТАТОР В СБОРЕ STATOR ASSEMBLY |
1 | discontinued |
| 11 | 7009 |
ДИОД DIODE |
1 | discontinued |
| 12 | 7010 |
ТЕПЛОПОГЛОЩАЮЩИЙ HEAT SINK |
1 | discontinued |
| 13 | 7020 |
РУКАВ SLEEVE |
1 | discontinued |
| 14 | 7018 |
РУКАВ SLEEVE |
1 | discontinued |
| 15 | 7034 |
КЛЮЧ KEY |
1 | discontinued |
| 16 | 8635 |
РОТОР В СБОРЕ ROTOR ASSEMBLY |
1 | discontinued |
| 17 | 7014 |
ТОКОСОБИРАТЕЛЬНОЕ КОЛЬЦО SLIP RING |
1 | discontinued |
| 18 | 7206 |
ШАЙБА WASHER |
1 | discontinued |
| 19 | 7207 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 2 | 7033 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
1 | discontinued |
| 20 | 7029 |
ВИНТ (5/8") SCREW (5/8 In.) |
1 | discontinued |
| 21 | 7007 |
ФИКСАТОР RETAINER |
1 | discontinued |
| 22 | 7003 |
КОРПУС HOUSING |
1 | discontinued |
| 23 | 813972 |
КОНДЕНСАТОР CAPACITOR |
1 | discontinued |
| 24 | 7023 |
РАЗЪЕДИНИТЕЛЬ INSULATOR |
1 | discontinued |
| 25 | 7024 |
ШАЙБА WASHER |
1 | discontinued |
| 26 | 7025 |
ГАЙКА NUT |
1 | discontinued |
| 27 | 7208 |
ШАЙБА WASHER |
1 | discontinued |
| 28 | 7032 |
СТОПОРНАЯ ШАЙБА LOCKWASHER |
2 | discontinued |
| 29 | 7026 |
ГАЙКА NUT |
1 | discontinued |
| 3 | 8637 |
ШКИВ PULLEY |
1 | discontinued |
| 30 | 7022 |
ШАЙБА WASHER |
1 | discontinued |
| 31 | 8638 |
СКВОЗНОЙ БОЛТ THRU BOLT |
4 | discontinued |
| 32 | 7021 |
ГАЙКА NUT |
1 | discontinued |
| 33 | 7011 |
ДЕРЖАТЕЛЬ В СБОРЕ Щетка HOLDER ASSEMBLY Brush |
1 | discontinued |
| 34 | 7030 |
ВИНТ (1/2") SCREW (1/2 In.) |
2 | discontinued |
| 35 | 7008 |
ДИОДНАЯ ТРИАДА DIODE TRIO |
1 | discontinued |
| 36 | 7019 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 37 | 7013 |
ПРОКЛАДКА GASKET |
1 | discontinued |
| 38 | 808534 |
РЕГУЛЯТОР Напряжение REGULATOR Voltage |
1 | superseded |
| 39 | 7015 |
ВИНТ SCREW |
4 | discontinued |
| 4 | 7004 |
ВЕНТИЛЯТОР FAN |
1 | discontinued |
| 5 | 813969 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 6 | 7028 |
ГАЙКА NUT |
4 | discontinued |
| 7 | 7000 |
КРЫШКА В СБОРЕ COVER ASSEMBLY |
1 | discontinued |
| 8 | 7005 |
ПОДШИПНИК Шарик BEARING Ball |
2 | discontinued |
| 9 | 7006 |
КОЛЬЦО RING |
1 | discontinued |
